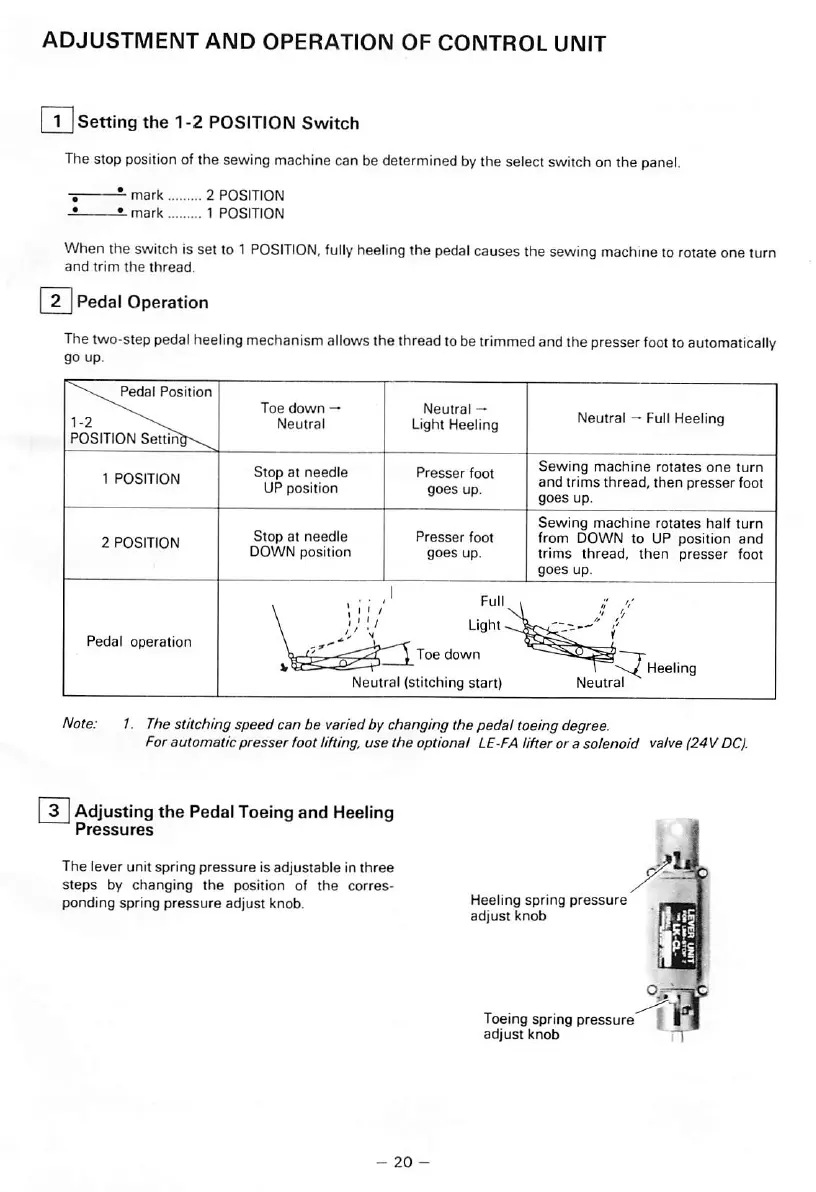

ADJUSTMENT AND OPERATION OF CONTROL UNIT
Setting the 1-2 POSITION Switch
Thestop position ofthe sewing machine canbe determined bytheselect switch on the panel.
mark 2 POSITION
-5 2- mark 1 POSITION
When the switch isset to 1 POSITION, fully heelingthe pedalcauses the sewingmachineto rotateone turn
and trim the thread.
I2 I Pedal Operation
The two-step pedal heeling mechanism allows the thread tobe trimmed andthe presser foot to automatically
go up.
\^Pedal Position
12
POSITION Settin^\
Toe down —
Neutral
Neutral —
Light Heeling
Neutral — Full Heeling
1 POSITION
2 POSITION
Stop at needle
UP position
Stop at needle
DOWN position
Presser foot
goes up.
Presser foot
goes up.
Sewing machine rotates one turn
and trims thread, then presser foot
goes up.
Sewing machine rotates half turn
from DOWN to UP position and
trims thread, then presser foot
goes up.
Pedal operation
Neutral (stitching start)
/ //'
^^•^I^Heeiing
Neutral
Note: 1. Thestitching speed can be variedby changing the pedal toeing degree.
For automatic presser fool lifting, use the optional LE-FAlifter or a solenoid valve (24V DC).
I3 I Adjusting the Pedal Toeing and Heeling
Pressures
The lever unit spring pressure is adjustable in three
steps by changing the position of the corres
ponding spring pressure adjust knob.
Heeling spring pressure
adjust knob
Toeing spring pressure | It
adjust knob H
From the library of Superior Sewing Machine & Supply LLC - www.supsew.com
