SPECIFICATIONS

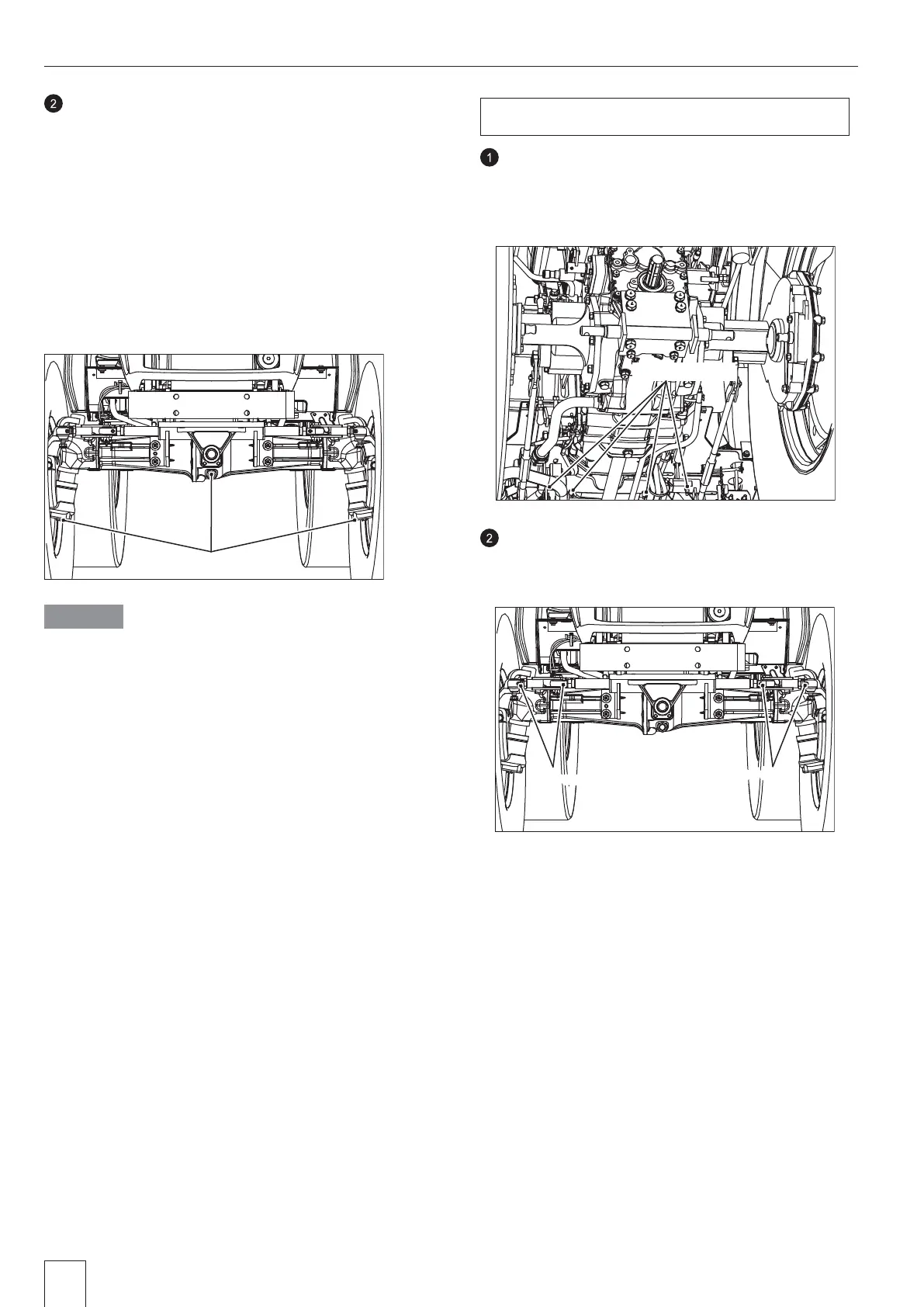

13. Lubrication of Each Part
Brake Link (Left and Right)
- Lubricate the grease from the grease nipple
(Illustration indicates the brake link.)
Rod End
- Lubricate an appropriate amount of grease
from the grease nipple (4 places).
1944_0070
Grease NippleGrease Nipple
Grease Nipple
Grease Nipple
1944_0069
Grease NippleGrease Nipple
1944_0068
Drain Oil PlugDrain Oil Plug
Oil Replacement
(1) Remove the drain oil plugs (3 places) and
drain the oil.
(2) Close the drain oil plugs.
(3) Remove the air vent plug located on both
gear cases.
(4) Supply oil through the fill hole.
Supply gear lube GL-4 or better gear lube
until the oil flows out of the air vent plug
hole, and install air vent plug.
(5) Until the oil flows out of the level plug hole.
NOTE
- Check the oil level before starting the
engine.
