MECHANICAL STRUCTURE
4-3 Assembly of Transmission Case

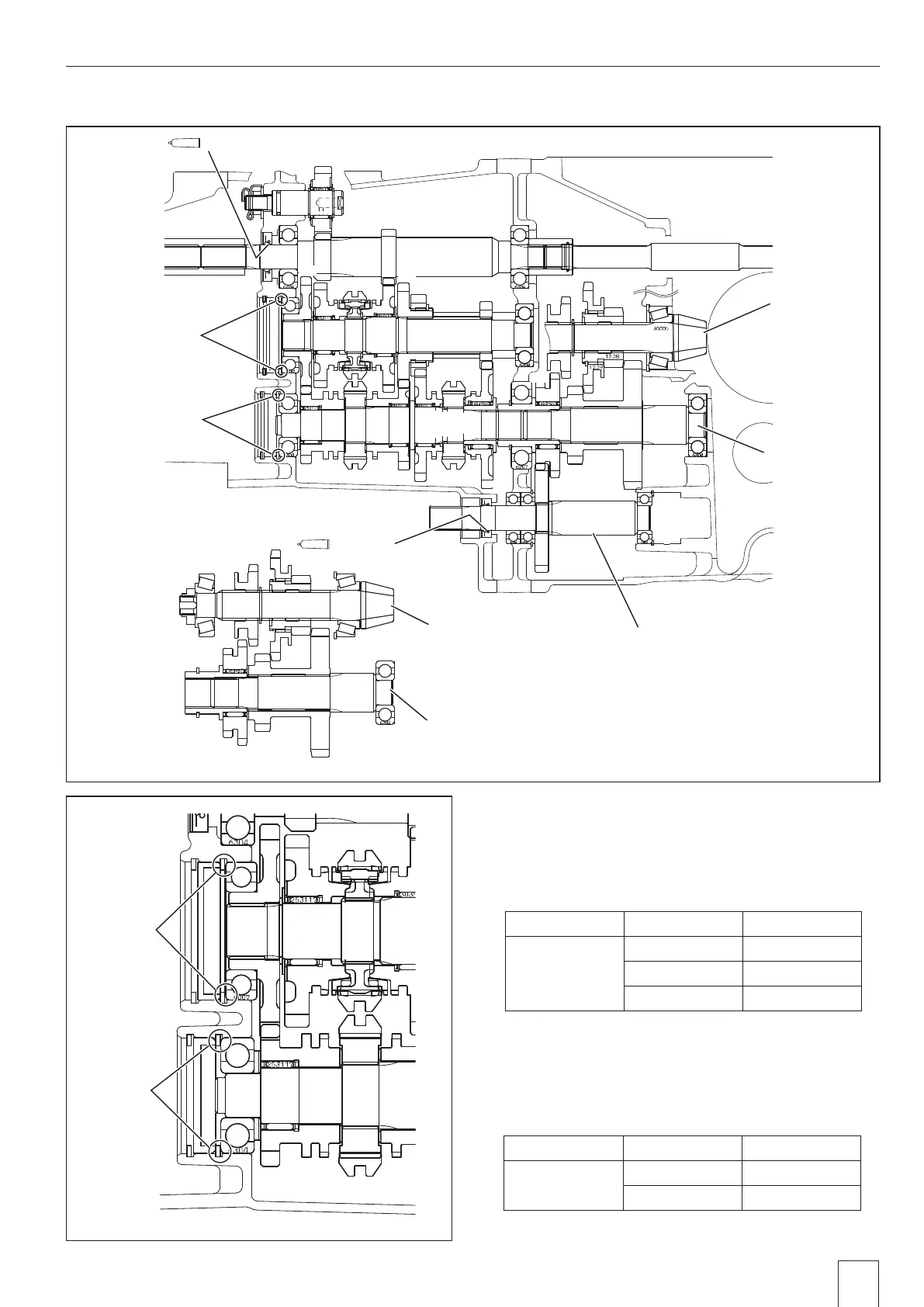

1.Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "A"
(Unit: mm {in})
Item Thickness Parts No.
Liner "A"
0.2 {0.008} 0730 0006 202
0.6 {0.024} 0730 0006 206
1.0 {0.039} 0730 0006 210
2.Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "B"
(Unit: mm {in})
Item Thickness Parts No.
Liner "B"
0.2 {0.008} 0730 0005 202
0.6 {0.024} 0730 0005 206
Pinion Shaft
Shaft
4WD Shaft
Pinion Shaft
Shaft
Grease
Liner"A"
Liner"B"
Grease
22T
16T
13T
33T
30T
34T
26T
20T
16T
25T
28T
14T
34T
19T
33T
35T
28T
33T
29T
22T
19T
34T
19T
33T
28T
14T
28T
25T
Liner"A"
Liner"B"
