MECHANICAL STRUCTURE
(Unit: mm {in})
Item Thickness Parts No.
Liner "C"
0.1 {0.004} 0731 0006 001
0.2 {0.008} 0731 0006 002
0.4 {0.016} 0731 0006 004
(Unit: mm {in})
Item Thickness Parts No.
Liner "D"
0.1 {0.004} 0731 0003 001
0.2 {0.008} 0731 0003 002
0.4 {0.016} 0731 0003 004
0.8 {0.031} 0731 0003 008
1.0 {0.039} 0731 0003 010

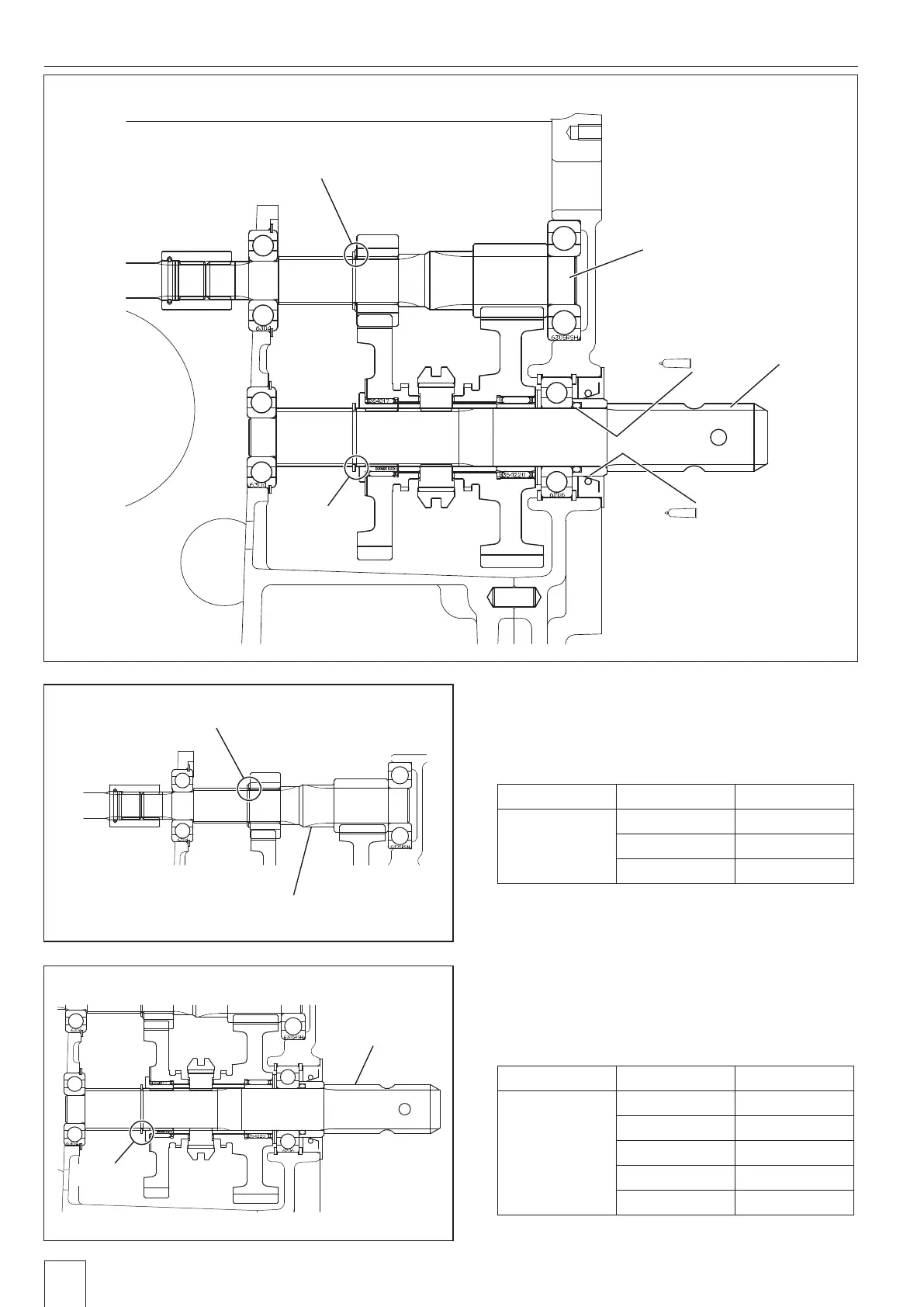

3.Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "C"
4.Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "D"
PTO Drive Shaft
Oil
Grease
13T
10T
44T
40T
PTO Shaft
Liner"C"
Liner"D"
Liner"C"
Liner"C"
PTO Shaft
PTO Drive Shaft
