67
MECHANICAL STRUCTURE

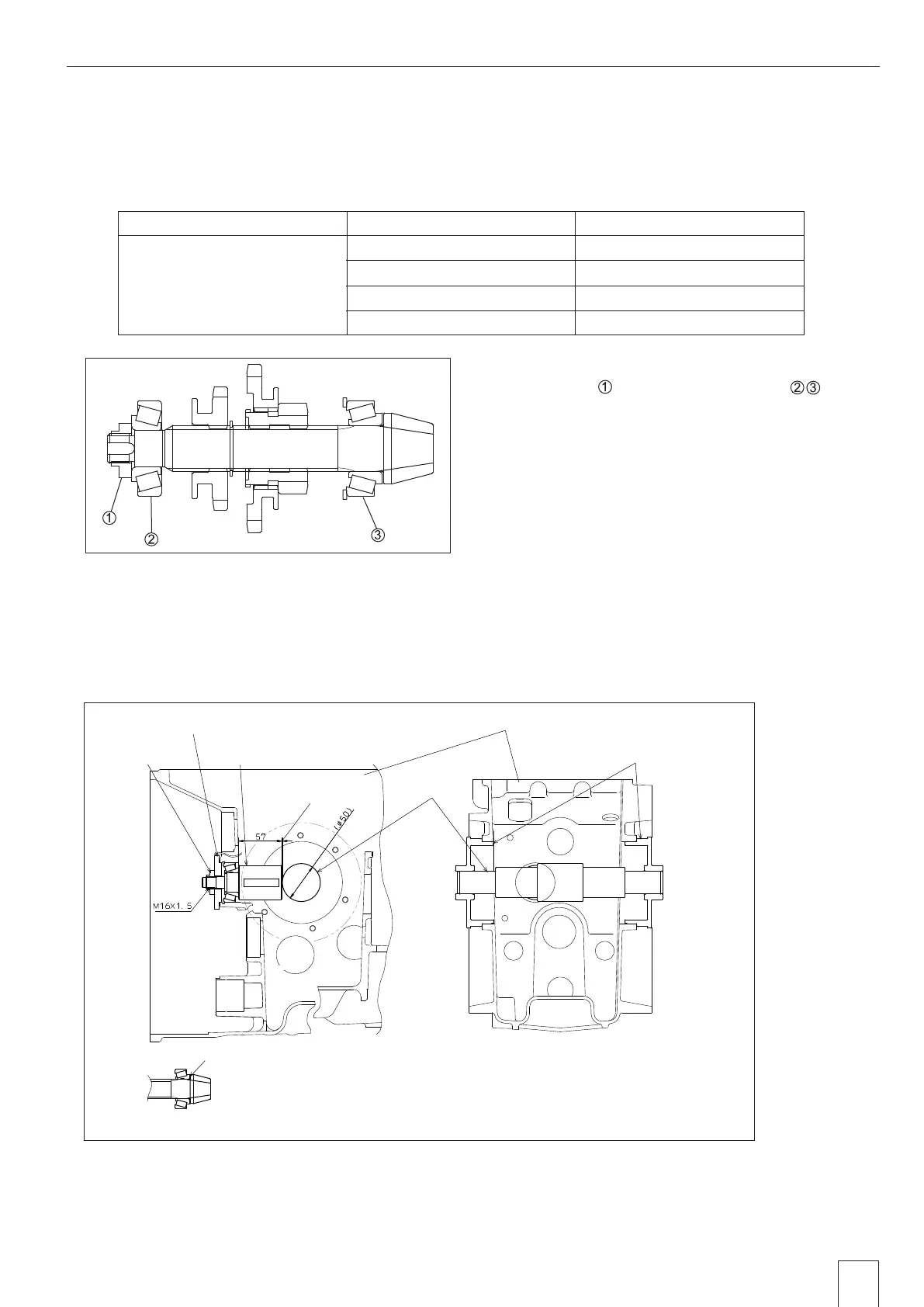

1 Assembly of Pinion Shaft
1. Adjust the liner "A" to have
2. Tightened the nut and pressurized the bearing
to the following starting torque of differential pinion
gear.
0.98 to 1.27N
.
m {10 to 13 kgf
.
cm 0.72 to 0.94 lbf
.
ft}
the distance from the pinion rear face to the differential case center 82 ± 0.05mm
{3.23 ± 0.0020in}.
2 Adjusting method that uses special tool
(Unit: mm {in})
Item Thickness Parts No.
Liner "A"
0.15 {0.06} 0731 0002 501
0.2 {0.008} 0731 0002 502
0.4 {0.016} 0731 0002 504
0.8 {0.032} 0731 0002 508
1. As shown in the following figure, assemble a special tools to a differential gear case.
2. Measuring dimension (A).
3. Inserting the liner of the same thickness of dimension (A) to (B).
Differential gear case
(
A
)
(
B
)
Pinion gear
Flange
(19639019000)
Shaft
(19639018000)
Shaft
(19449011000)
Washer
(19449012000)
Nut(M16)
(10441226000)
5-2 Assembly of Rear Axle.
