85
MECHANICAL STRUCTURE

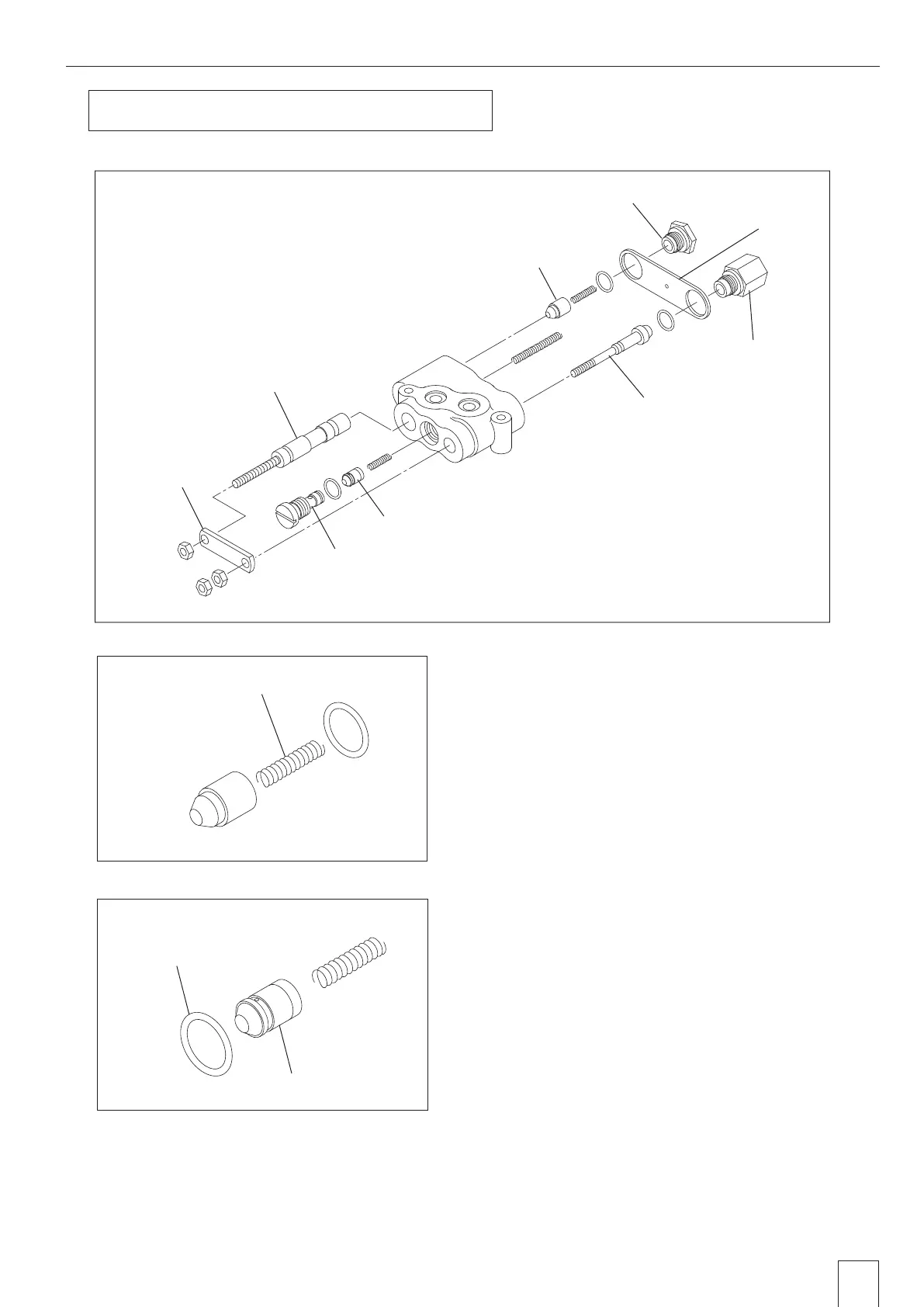

3 Disassembly of Control Valve
1. Valve Details
1) Unload Valve
8QORDGYDOYHVSULQJ
Part No.: 1180 2471 240
2ULQJ
Part No.: 0830 0100 150
Size: P15 Hs70 JIS B2401
2) Check Valve
&KHFNYDOYH
Part No.: 1003 2416 180
2ULQJ
Part No.: 0830 1100 090
Size: P9 Hs90 JIS B240 1
Plug
Plate
Sheet plug
Poppet
Check valve
Sheet
Plate
Spool
Unload valve
PR8W4-047
Unload valve spring
PR8W4-048
O-ring
Check valve
PR8W4-049
3. Disassembly of Control Valve
