31

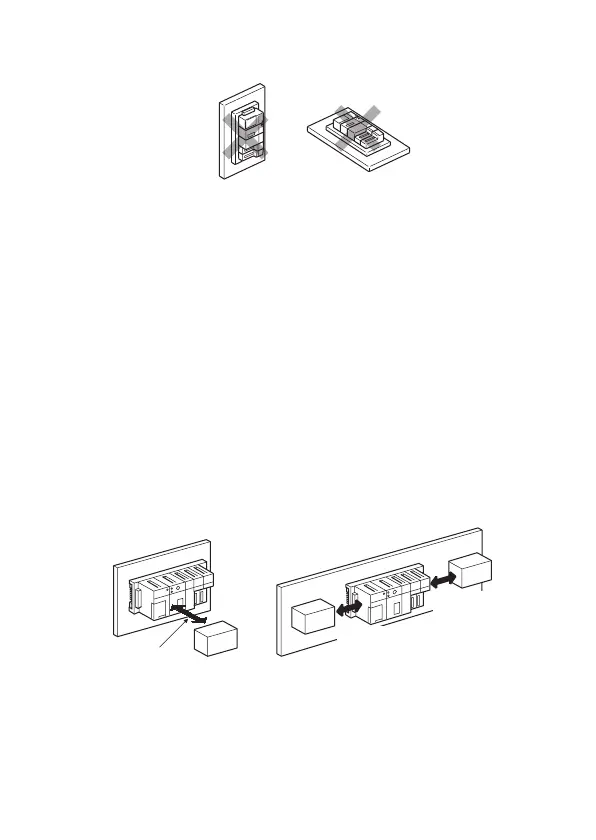

(b) Do not use the programmable controller in the following
positions:
(4) Install the base unit on a level surface.
If the surface is not level, force may be applied to the printed wiring
board, causing a malfunction.
(5) Install the unit far from any source of vibration, such as a large
magnetic contactor and a no-fuse breaker on the same panel, or
install it on a separate panel.
(6) Keep the following distance between the programmable controller
and other devices (such as a contactor and a relay) in order to
avoid the influence of radiated noise and heat:
• a device installed in front of the programmable controller
...................................................................100mm (3.94 inch) or more
• a device installed on the right or left of the programmable
controller
....................................................................50mm (1.97 inch) or more
Horizontal positionVertical position
or more
50mm (1.97inch)
or more
50mm (1.97inch)
relay, etc.
Contactor, and
or more
100mm (3.94inch)
To Next Page
