5 - 5
POWER SUPPLY MODULE5.

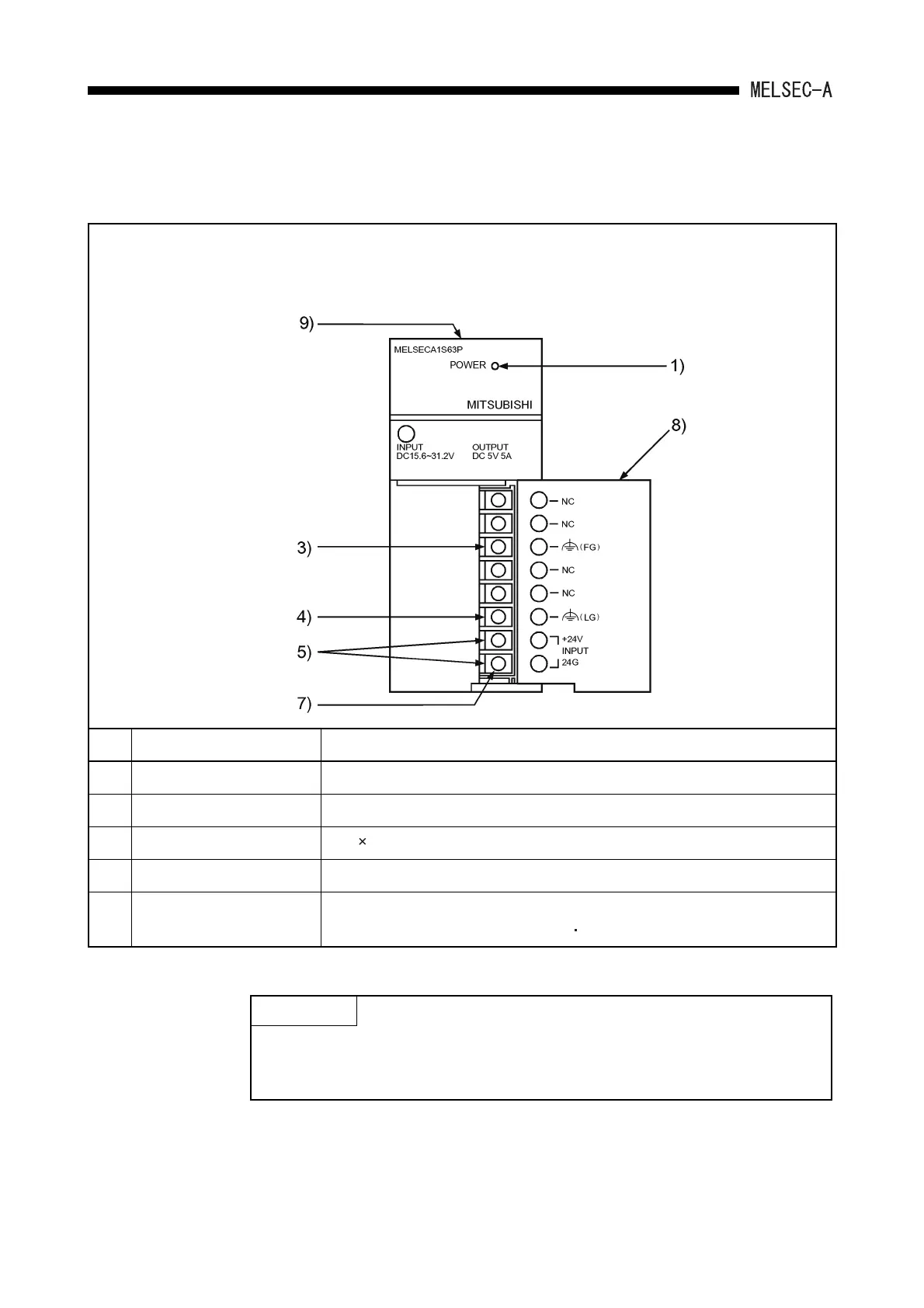

No. Name Description
5) Power input terminal Used to connect a 24VDC power supply.
6) Power input terminal Used to connect 100VAC to 240VAC power supply.
7) Terminal screw M3.5 7
8) Terminal cover A protective cover for the terminal block.
9) Module mounting screw
Used to fix a module to the base unit.
(M4 screw; tightening torque: 59 to 88N cm)
POINT
(1) Do not cable to the unused terminals such as FG and LG on the terminal
block (terminals whose name is not printed on the terminal cover).
(2) The protective ground terminal LG must be grounded.
(3) A1S63P
