APP - 32
APPENDICES

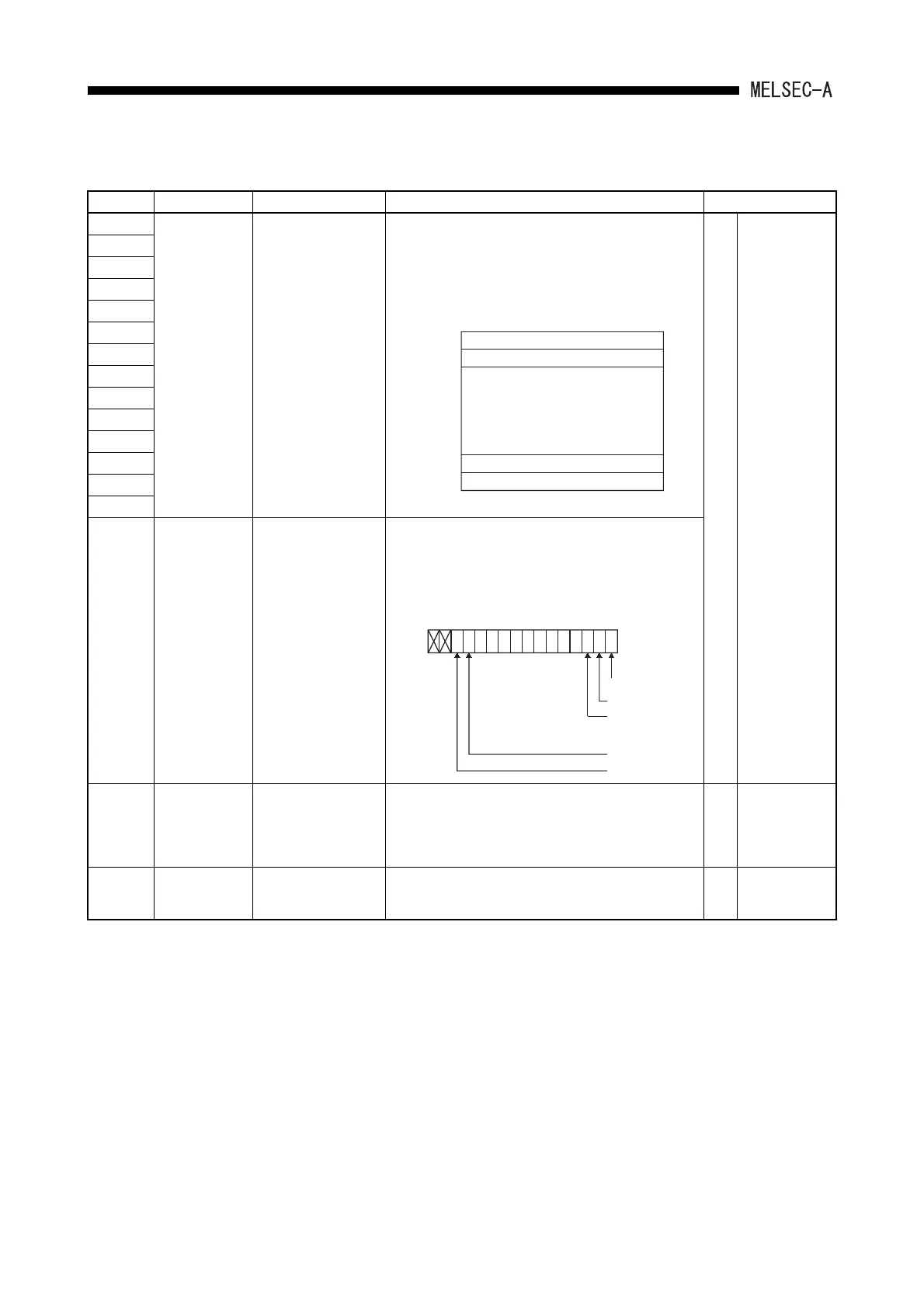

Table App2.2 Special Register List (Continue)
Number Name Description Details Applicable CPU
D9021
Remote
terminal
parameter
setting
1 to 61
• Sets the head station number of remote terminal
modules connected to A2C and A52G. Setting is not
necessarily in the order of station numbers.
A2CCPUC24:1 to 57
Other CPUs:1 to 61
• Data configuration
—
Usable with
A2C and A52G.
D9022
D9023
D9024
D9025
D9026
D9027
D9028
D9029
D9030
D9031
D9032
D9033
D9034
D9035
Attribute of
remote terminal
module
0: MINI standard
protocol
1: No protocol
• Sets attribute of each remote terminal module
connected to A2C and A52G with 0 or 1 at each bit.
0: Conforms to the MINI standard protocol or
remote terminal unit.
1: No-protocol mode of AJ35PTF-R2
• Data configuration
D9035
Extension file
register
Use block No.
• Stores the block No. of the extension file register being
used in BCD code.
—
Usable with
AnA, A2AS,
AnU and
QCPU-A
(A Mode).
D9036
Total number of
stations
1 to 64
• Sets the total number of stations (1 to 64) of I/O
modules and remote terminal modules which are
connected to an A2C or A52G.
—
Usable with
A2C and A52G.
D9021
D9022
D9033
D9034
Remote terminal module No.1 area
Remote terminal module No.2 area
. . . . . . . . . . . .
Remote terminal module No.13 area
Remote terminal module No.14 area
Remote terminal No.1
Remote terminal No.2
Remote terminal No.3
Remote terminal No.13
Remote terminal No.14
b11 b8 b7 b4 b3 b0b15 b12b14b13 b10 b9 b6 b5 b2 b1
0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1
D9035
........
