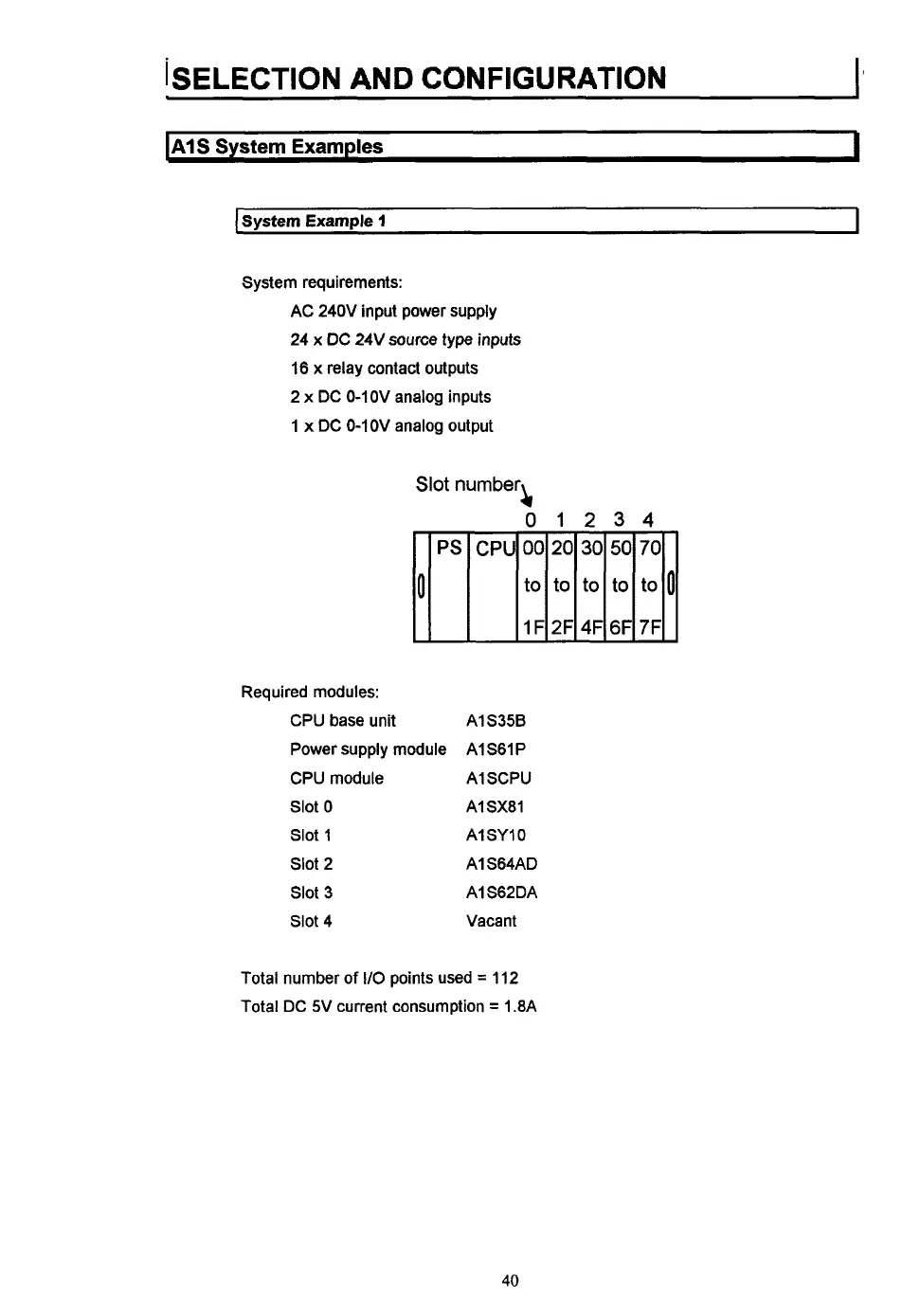

!SELECTION AND CONFIGURATION
lAlS System Examples I
I
I System Example 1 I
System requirements:
AC 240V input power supply
24
x DC 24V source type inputs
16
x relay contact outputs
2
x DC 0-1OV analog inputs
1 x DC 0-1OV analog output
Slot number
01234
Required modules:
CPU base unit
Power supply module
CPU module
Slot 0
Slot 1
Slot 2
Slot 3
Slot 4
AI
S35B
A1 S61 P
A1 SCPU
AI SX81
AlSYlO
A1 S64AD
AI S62DA
Vacant
Total number
of I/O points used = 112
Total DC 5V current consumption = 1.8A
