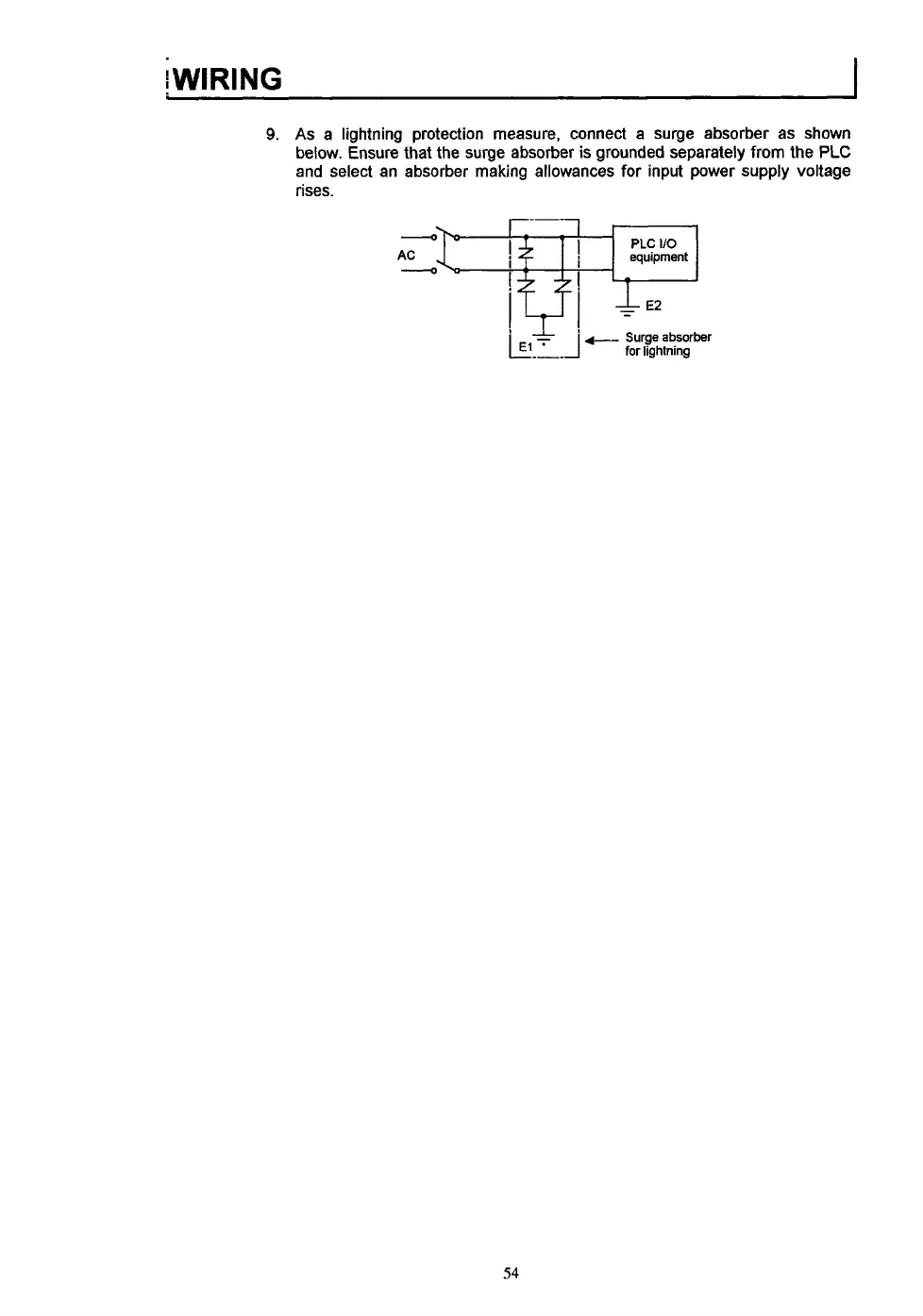

WIRING
9.
As
a lightning protection measure, connect a surge absorber
as
shown
below. Ensure that the surge absorber
is
grounded separately from the
PLC
and select an absorber making allowances
for
input power supply voltage
rises.
b+
A
4-
Surgeabsorber
for lightning
--
54
