F940GOT-SWD-E/LWD-E CPU port connection 3.
3-6
• In the case of the FX
2N
Series, communication can be performed by CPU port connection
(RS-232C communication) using the FX
2N
-232-BD.
In this case also, In the case of the FX
2N
Series, communication can be performed by CPU
port connection (RS-232C communication) using the FX
2N
-232-BD.
In this case also, up to four GOT units can be connected to one PLC (1-to-N connection).
Up to four GOT units can be connected to one PLC (1-to-N connection).
To connect peripheral units used to create sequence programs, use programming connec-
tors in the FX
2N
main unit.

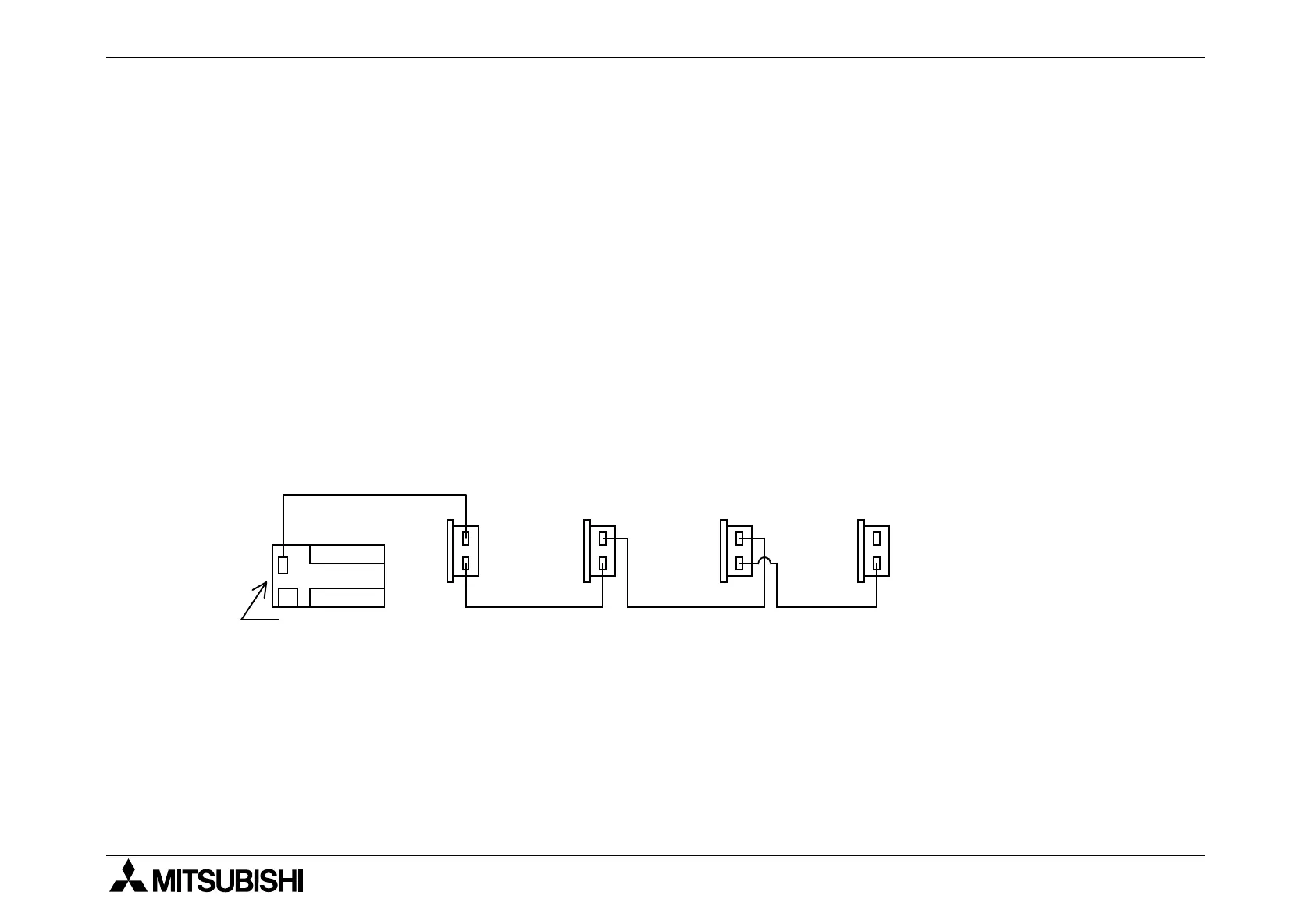

System configuration
RS-422
communication
30m (98.4ft)
RS-422
communication
30m (98.4 ft)
RS-232
communication
15m (49.2 ft)
FX
2N
-232-BD
RS-232C communication
Maximum extension
distance: 15 m (49.2 ft)
FX
2N
Series
To Next Page
