switch. (Refer to “MODE switch” on page
7-14, “Defogger switch” on page 7-14.)
These symbols are used in the next several
illustrations to demonstrate the quantity of air
coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the vents

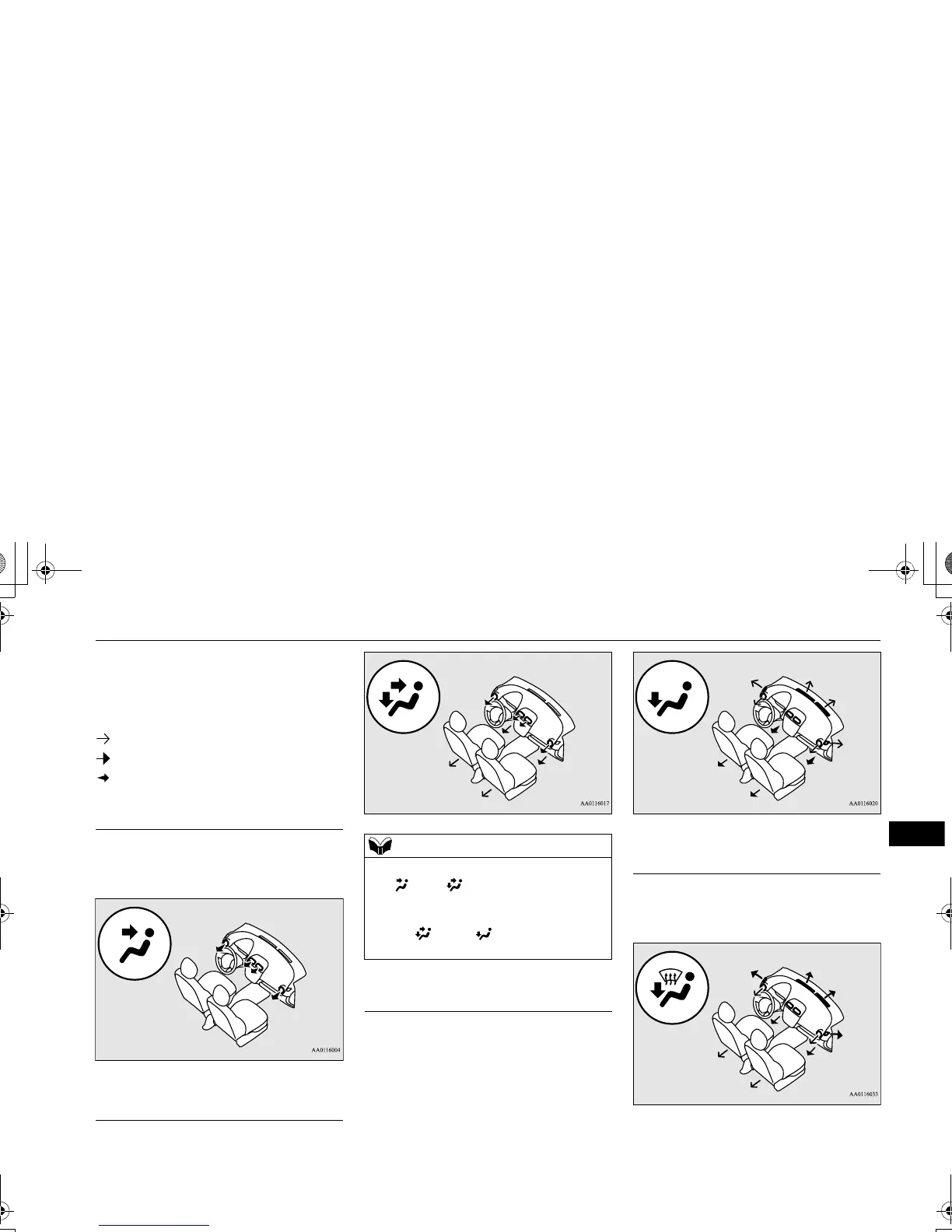

Air flows only to the upper part of the passen-
ger compartment.
Air flows to the upper part of the passenger
compartment, and flows to the leg area.
Air flows mainly to the leg area.
Air flows to the leg area, the windshield and
the door windows.
Face position
Foot/Face position
With the mode selection dial between the
“ ” and “ ” positions, air flows mainly
to the upper part of the passenger compart-
ment. With the mode selection dial between
the “ ” and “ ” positions, air flows
mainly to the leg area.
Foot position
Foot/Defroster position
