Mitsubishi Mirage 2017 User Manual

Fuses
Vehicle care and maintenance 9-25
9
 Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
 The table above shows the main equip-
ment corresponding to each fuse.
*: Fusible link
 Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
 The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A,
10 A or 15 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: Outside rearview mirrors
10 A: Option
15 A: Cigarette lighter
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
N00954900131
1. Before replacing a fuse, always turn off
the electrical item concerned to the fuse
and turn the ignition switch to the “OFF”
position or put the operation mode in
OFF.

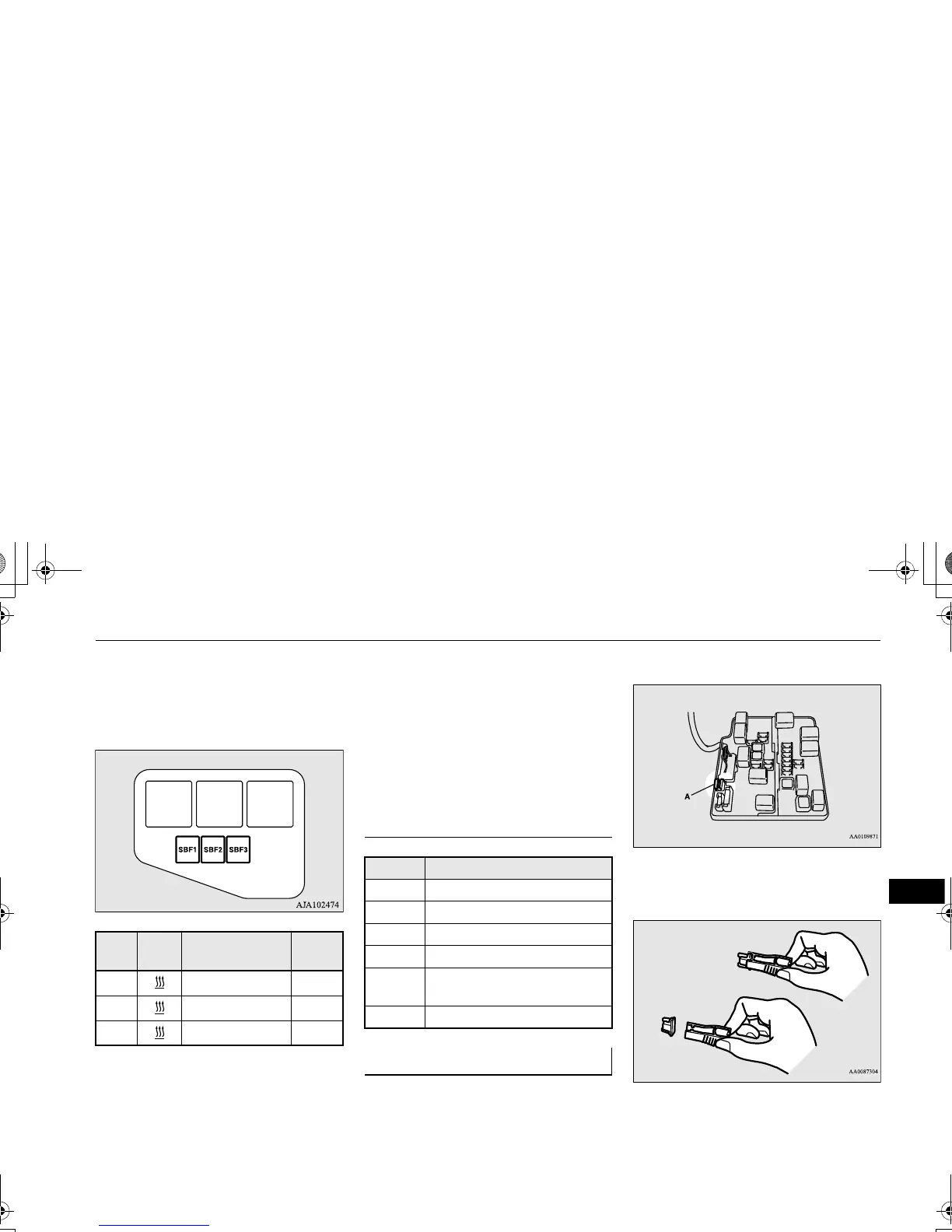

2. There is a fuse remover (A) in the engine
compartment fuse block.
3. Clamp it on the fuse you wish to remove,
and pull the fuse straight out from the fuse
block.
No.
Sym-
bol
Electrical system
Capac-
ity
SBF1 PTC heater 40 A*
SBF2 PTC heater 40 A*
SBF3 PTC heater 40 A*
Type B
Identification of fuse
Capacity Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
30 A
Green (fuse type) /Pink (fusible
link type)
40 A Green (fusible link type)
Fuse replacement
