Fuses
9-24 Vehicle care and maintenance
9
 The table above shows the main equip-
ment corresponding to each fuse.
*: Fusible link

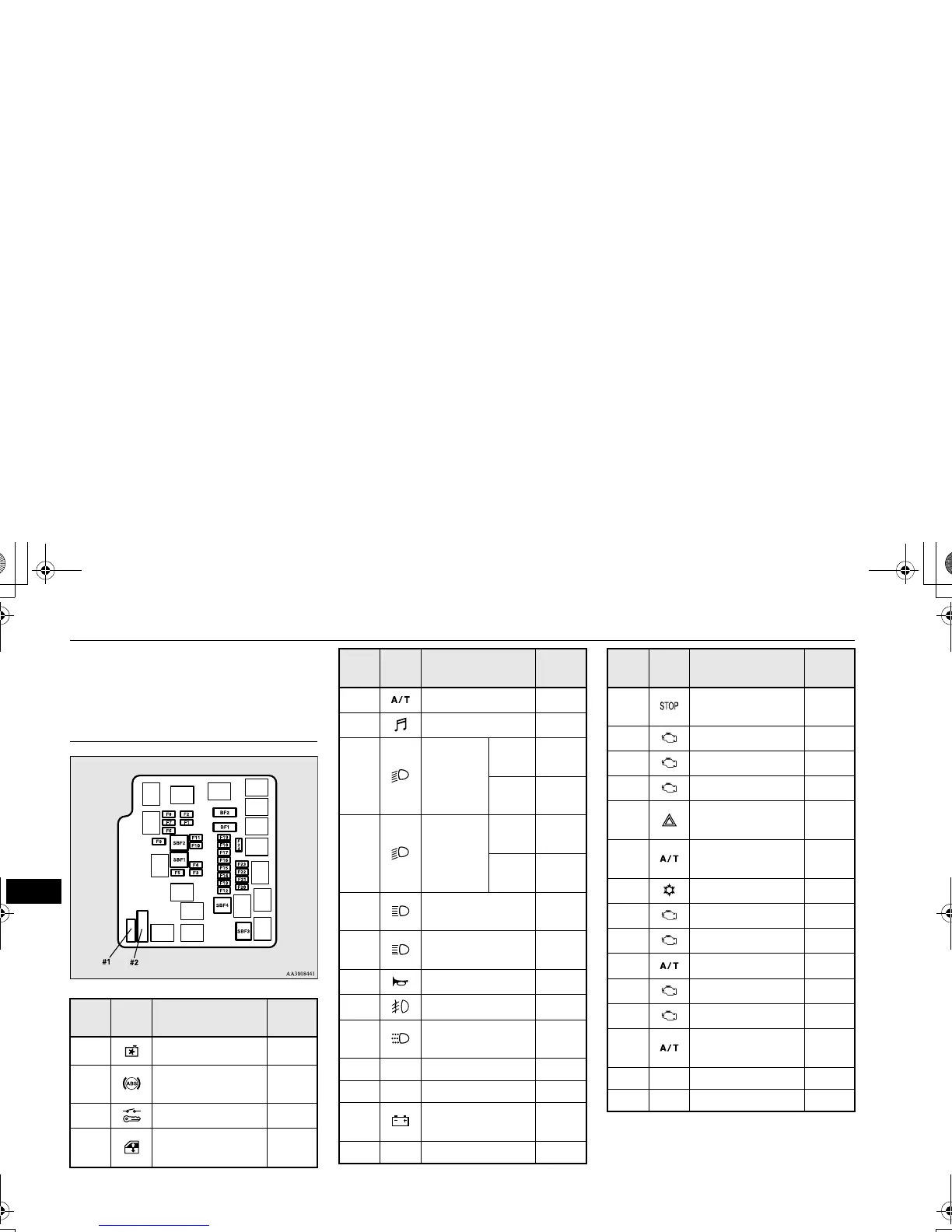

Engine compartment fuse location
table
No.
Sym-
bol
Electrical system
Capac-
ity
SBF1 Radiator fan motor 40 A*
SBF2
Anti-lock braking
system
30 A*
SBF3 Ignition switch 40 A*
SBF4
Power window
control
40 A*
Type A
BF1 DC-DC (P/T) 30 A
BF2 DC-DC (AUDIO) 30 A
F1
Headlight
(low
beam)
(left)
Halo-
gen
10 A
Dis-
charge
20 A
F2
Headlight
(low
beam)
(right)
Halo-
gen
10 A
Dis-
charge
20 A
F3
Headlight (high
beam) (left)
10 A
F4
Headlight (high
beam) (right)
10 A
F5 Horn 10 A
F6 Front fog lights 15 A
F7
Daytime running
lights
10 A
F8 — — —
F9 — — —
F10
Battery current
sensor
7.5 A
F11 — — —
No.
Sym-
bol
Electrical system
Capac-
ity
F12
Stop lights (Brake
lights)
15 A
F13 Ignition coil 7.5 A
F14 Engine control 7.5 A
F15 Alternator 7.5 A
F16
Hazard warning
flasher
10 A
F17
Automatic trans-
axle
15 A
F18 Air conditioning 10 A
F19 ETV 15 A
F20 Starter 7.5 A
F21 CVT oil/pump 15 A
F22 Fuel pump 15 A
F23 Engine 20 A
F24
Automatic trans-
axle
7.5 A
#1 — Spare fuse 20 A
#2 — Spare fuse 30 A
No.
Sym-
bol
Electrical system
Capac-
ity
