Turn the VOL switch clockwise to increase
the volume; counterclockwise to decrease the
volume.
The status will be displayed in the display.
N00712101709
1. Press the /MENU button to select
BASS TREBLE FADER BAL-
ANCE Sound control mode off.
2. Turn the SEL switch either clockwise or
counterclockwise to change the tone/bal-
ance setting.
The status will be displayed in the display.
To select the desired bass level.
To select the desired treble level.
To balance the volume from the F (front) and
the R (rear) speakers.
To balance the volume from the L (left) and
the R (right) speakers.
N00734901925

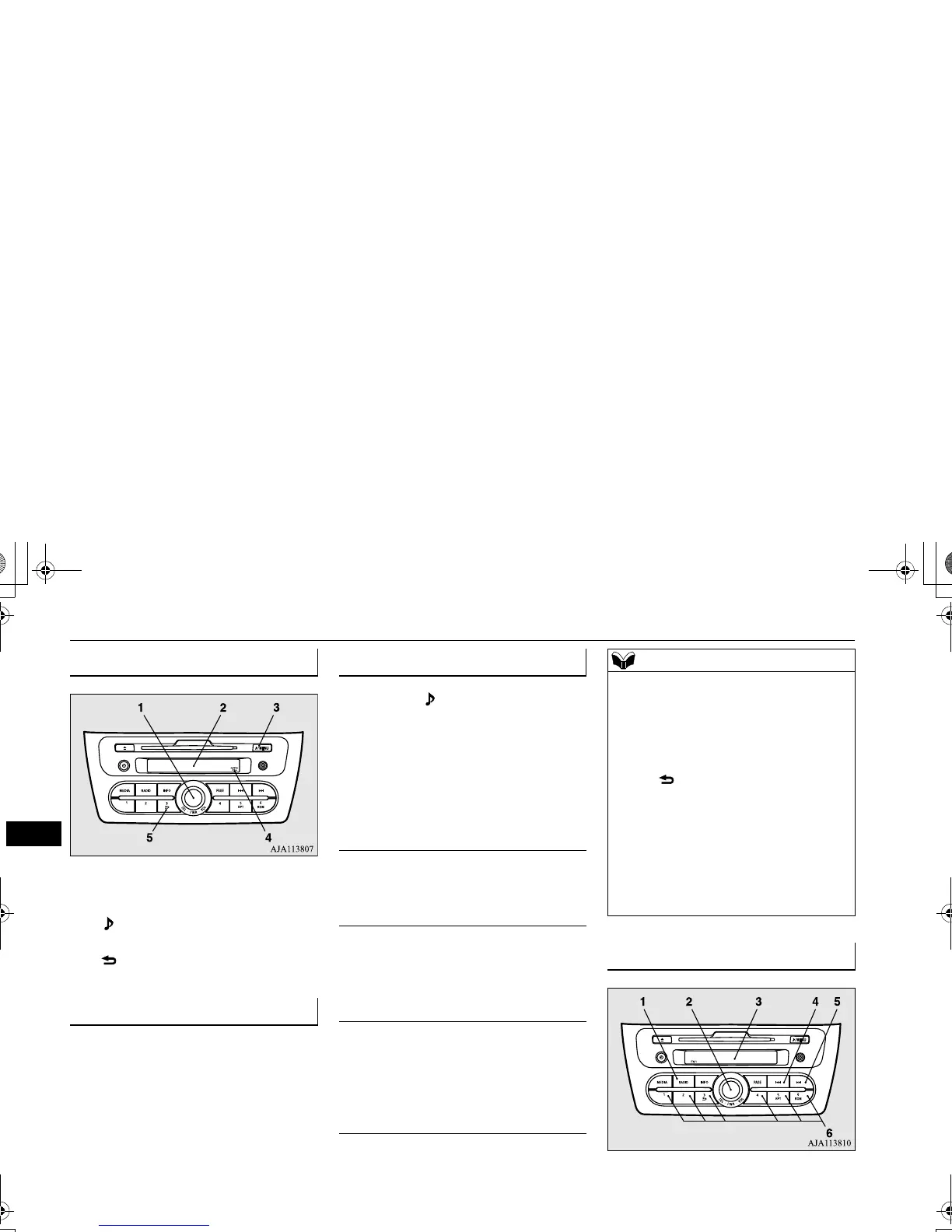

Volume and tone control panel
1- PWR (On-Off)/VOL (Volume con-
trol)/SEL (Select) switch
2- Display
3-
/MENU (Mode change) button
4- SEL (Select) indicator
5-
(Return) button
To adjust the volume
To adjust the tone
BASS (Bass tone control)
TREBLE (Treble tone control)
FADER (Front/Rear balance con-
trol)
BALANCE (Left/Right balance
control)
When operation of turn of the SEL switch is
enabled, the SEL indicator will appear on the
display.
When set to “0”, it will beep.
When the following operation is performed,
this mode will be canceled.
• The button is pressed.
• The another mode is selected.
• The any adjustment is not performed for
more than 10 seconds.
In a two-speakers vehicle, keep the FADER
setting in the middle position. Since no rear
speakers are connected, adjusting the
FADER setting toward the “R” (rear) side
will result in a loss of sound output.
Radio control panel and display
1- RADIO (AM/FM selection) button
BK0235100US.book 20 ページ ２０１５年１１月２０日 金曜日 午後３時１２分
