9. DIMENSIONS
9 - 4

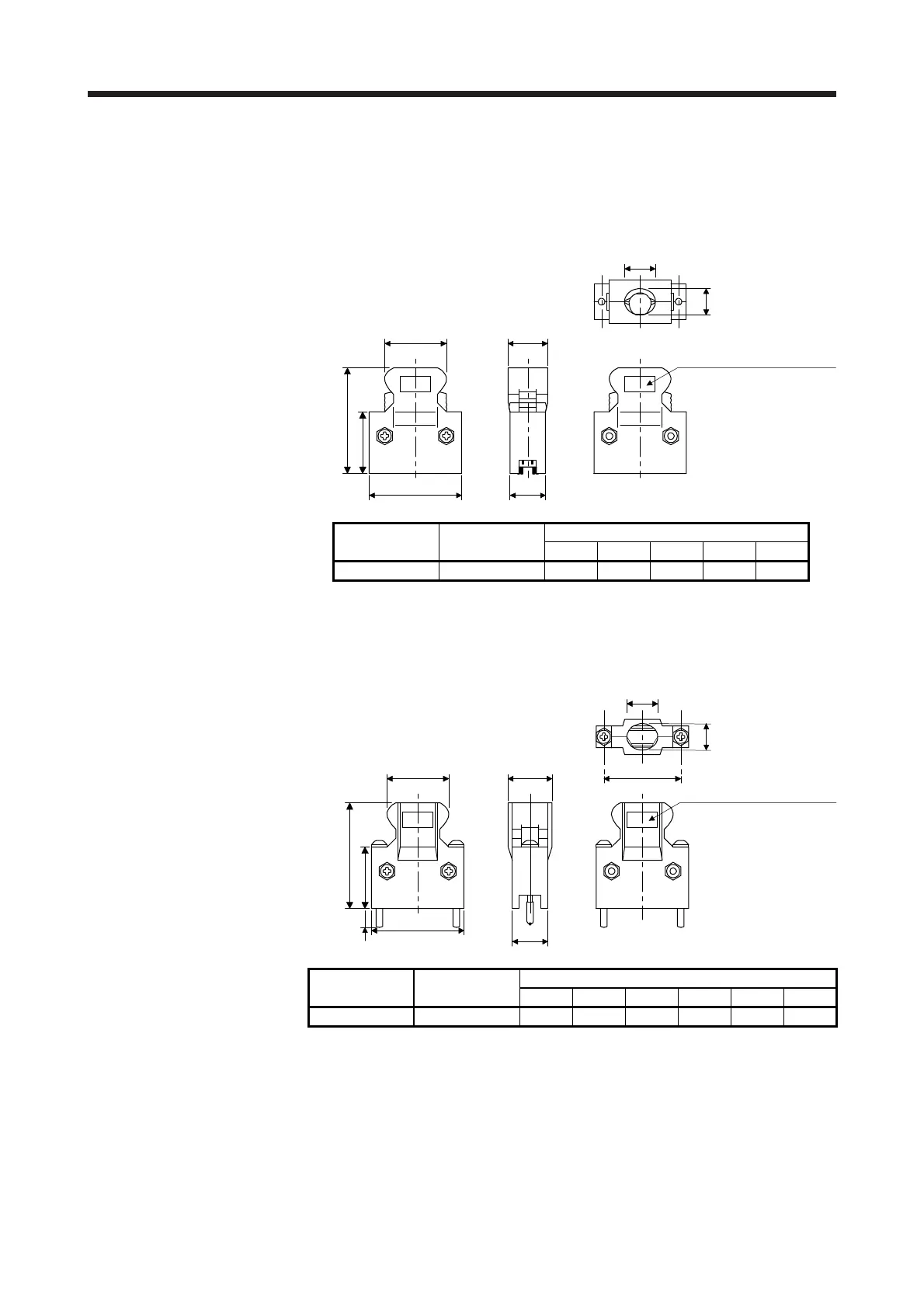

9.2 Connector
(1) Miniature delta ribbon (MDR) system (3M)
(a) One-touch lock type
[Unit: mm]
E
B
A
23.8
39.0
12.7
C
Logo etc, are indicated here.
D
Connector Shell kit
Variable dimensions
A B C D E
10150-3000PE 10350-52F0-008 41.1 52.4 18.0 14.0 17.0
(b) Jack screw M2.6 type
This is not available as option.
[Unit: mm]
E
B
A
23.8
39.0
12.7
C
Logo etc, are indicated here.
5.2
F
D
Connector Shell kit
Variable dimensions
A B C D E F
10150-3000PE 10350-52A0-008 41.1 52.4 18.0 14.0 17.0 46.5
