75

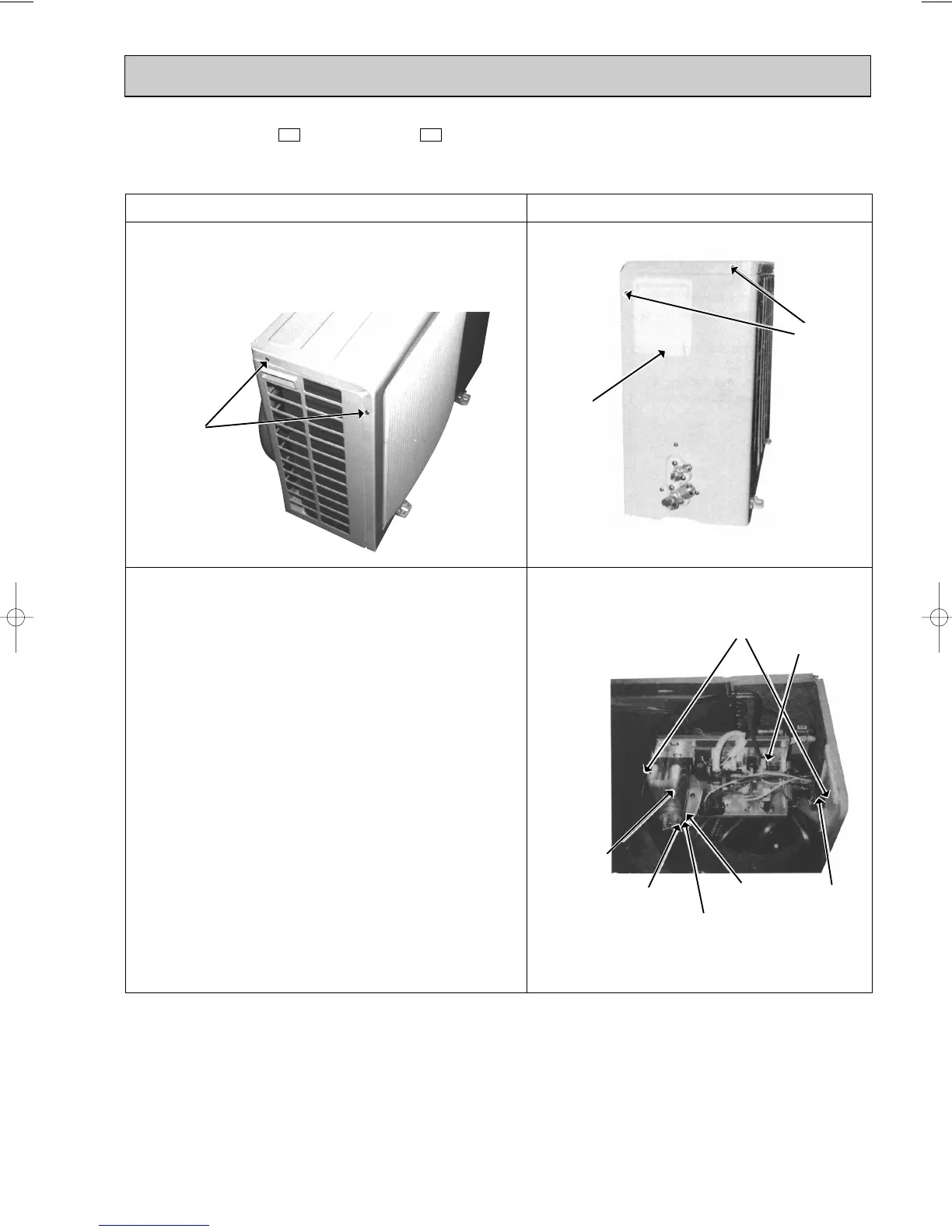

OPERATING PROCEDURE PHOTOS
1. Removing the cabinet
(1) Remove the screws of the cabinet.
(2) Hold the down of the cabinet on the both side to remove
the cabinet.
2. Removing the deicer P.C. board
(1) Remove the service panel and the cabinet.
(2) Disconnect all the connectors and the terminals on the
deicer P.C. board.
(3) Remove the deicer P.C. board.
12-3. MUH-18RV - MUH-18RV -
OUTDOOR UNIT
E2E1
Photo 1
Photo 3
Photo 2
Black lead wire
White lead wire
Screws
Screws
Service
panel
Terminal
block
Screws
Compressor
capacitor
Red lead wire
Deicer
P.C. board
OB272-3.qxp 02.1.26 1:24 PM Page 75
