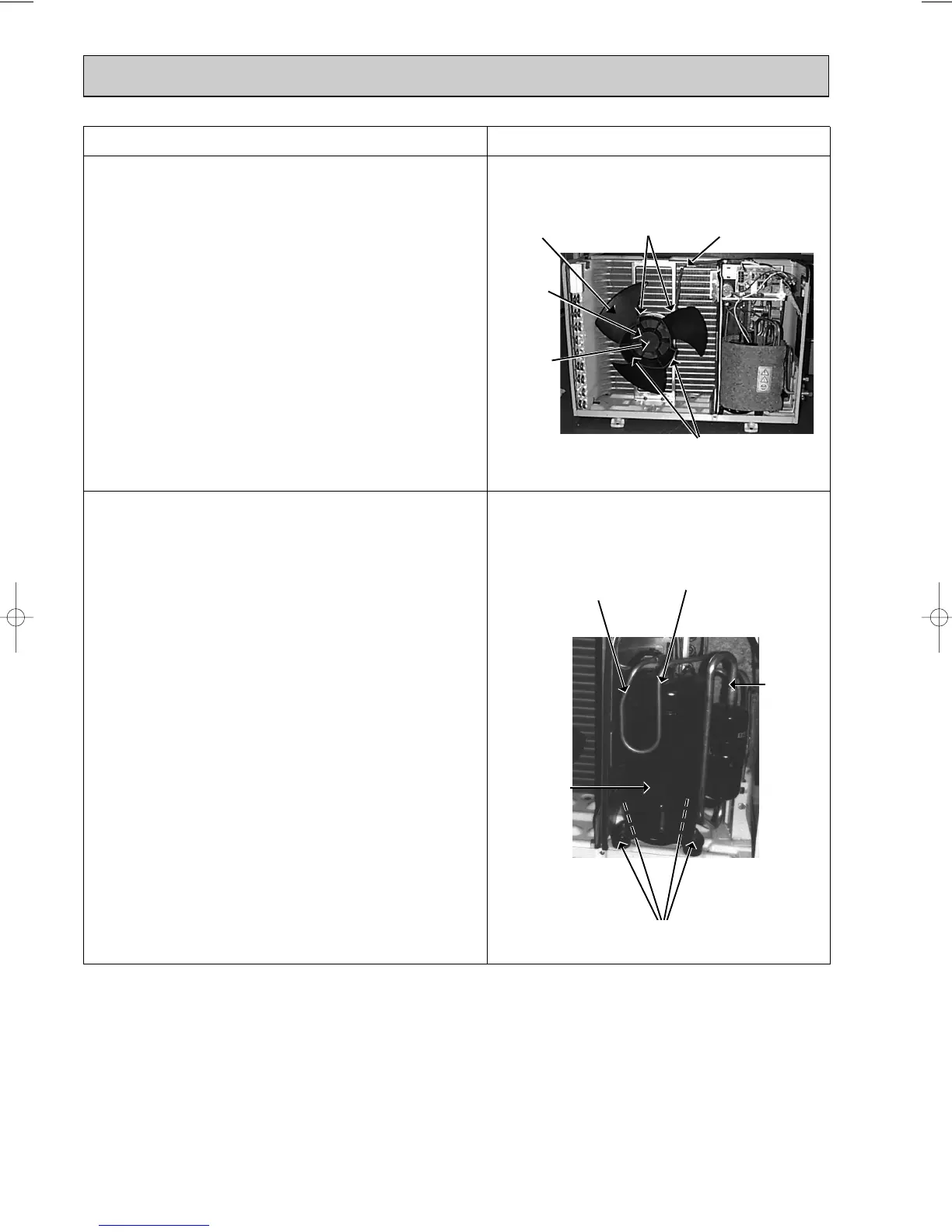

OPERATING PROCEDURE PHOTOS
3. Removing the outdoor fan motor
(1) Remove the cabinet. (Refer to 1)
(2) Disconnect the connector remove the clamp of fan motor
lead wire.
(3) Remove the propeller fan nut and remove the propeller fan.
(4) Remove screws fixing the fan motor.
4. Removing the compressor
(1) Remove the cabinet. (Refer to 1)
(2) Remove the soundproof felt.
(3) Remove the terminal cover on the compressor.
(4) Remove the electrical assembly.
(Refer to 2)
(5) Recover gas from the refrigerant circuit.
(6) Disconnect the welded part of the discharge pipe.
(7) Disconnect the welded part of the suction pipe.
(8) Remove nuts fixing the compressor.
(9) Remove the compressor.
Photo 5
Terminal cover
Compressor
Discharge
pipe
Suction
pipe
Compressor nuts
Photo 4
propeller fan
Set screws of the
outdoor fan motor
Lead clamps
Outdoor
fan motor
Propeller
fan nut
Set screws of the
outdoor fan motor
