45

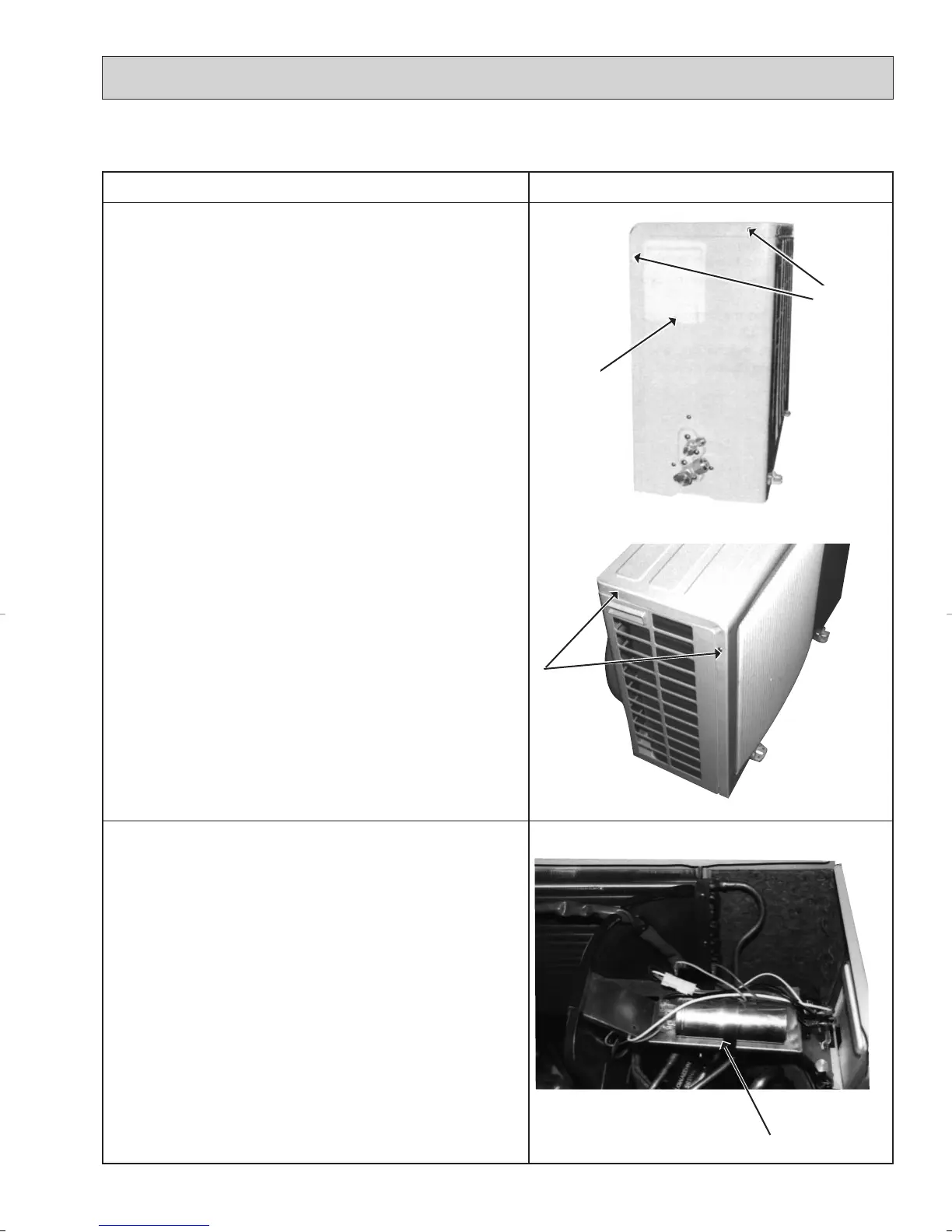

OPERATING PROCEDURE
PHOTOS
1. Removing the cabinet
(1) Remove the screws of the cabinet.
(2) Hold the bottom of the cabinet on the both side to remove
the cabinet.
2. Removing the electrical parts
(1) Remove the service panel and the cabinet.
(2) Remove the following parts.
•Compressor capacitor (C1)
•Outdoor fan capacitor (C2)
•Terminal block
12-4 MU12NN, MU15NN, MU17NN
OUTDOOR UNIT
Photo 1
Photo 3
Photo 2
Screws
Screws
Service
panel
Compressor capacitor
OB192--2.qxp 23/6/97 11:55 PM Page 45
