8

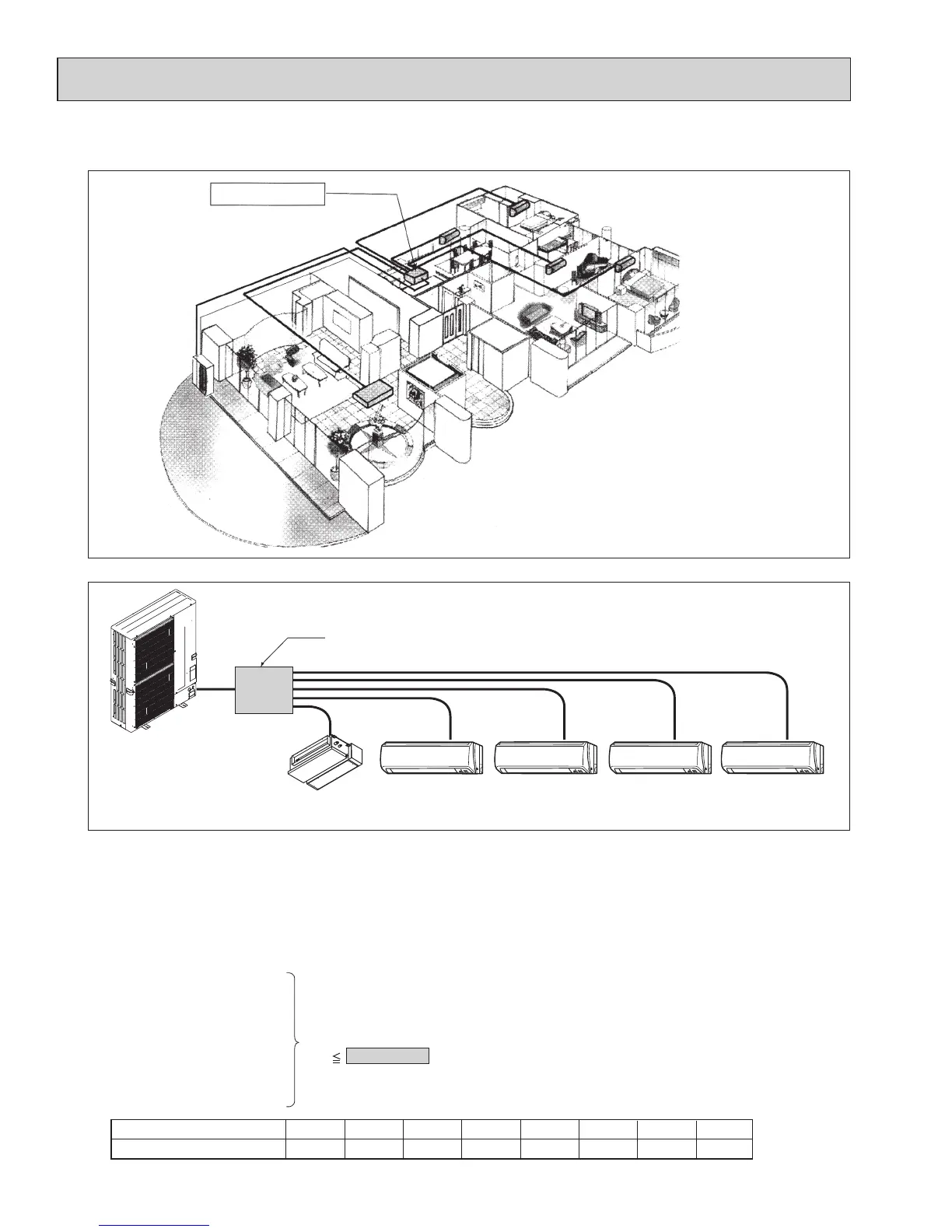

2-3. TYPICAL COMBINATION EXAMPLE
Branch box is located INSIDE of condominium
Branch box
(Inside)
Installing branch box indoors
Only 1 piping is required between the outdoor and
indoor offering a fine external view.
Branch box (5-branches type)
Outdoor unit
SEZ-18 MSZ-12 MSZ-12 MSZ-09 MSZ-09
Living
Dining Bedroom (1) Bedroom (2)
Master
bedroom
Indoor unit type (capacity class)
Rated capacity (cooling) (kBTU/h)
06
6
09
9
12
12
15
15
24
24
18
18
30
30
36
36
■ System example of 5 indoor units
■ Verification (In case of MXZ-8C48NAHZ)
The rated capacity should be determined by observing the table below. The unit’s quantities are limited to 1(*) to 8
units. For the next step, make sure that the selected total rated capacity is in a range of 12 to 62.4 kBTU/h.
The total indoor unit capacity should be within the outdoor units. (= 48.0 kBTU/h is preferred).
Combination of excessive indoor units and an outdoor unit may reduce the capacity of each indoor unit.
The rated indoor capacity is as the table below.
*Single unit connection is possible only with MVZ model. Connect 2 or more units for models other than MVZ.
Example:
Total rated capacity
60 62.4 kBTU/h
MSZ-09 = 9
+
+
+
+
SEZ-18 = 18
MSZ-12 = 12
MSZ-12 = 12
MSZ-09 = 9
To Next Page
