5.2 High Performance Model QCPU, Process CPU, Redundant CPU, Universal Model QCPU
5.2.2 Program memory
5
MEMORIES AND FILES USED IN CPU MODULE
(c) Checking the memory capacity after formatting
To check the memory capacity, choose [Online] [Read from PLC] on GX
Developer.
1) Select "Program memory/Device memory" as the target memory on the Read
from PLC screen.
2) Click the button.
3) The memory capacity appears in the Total free space volume field.

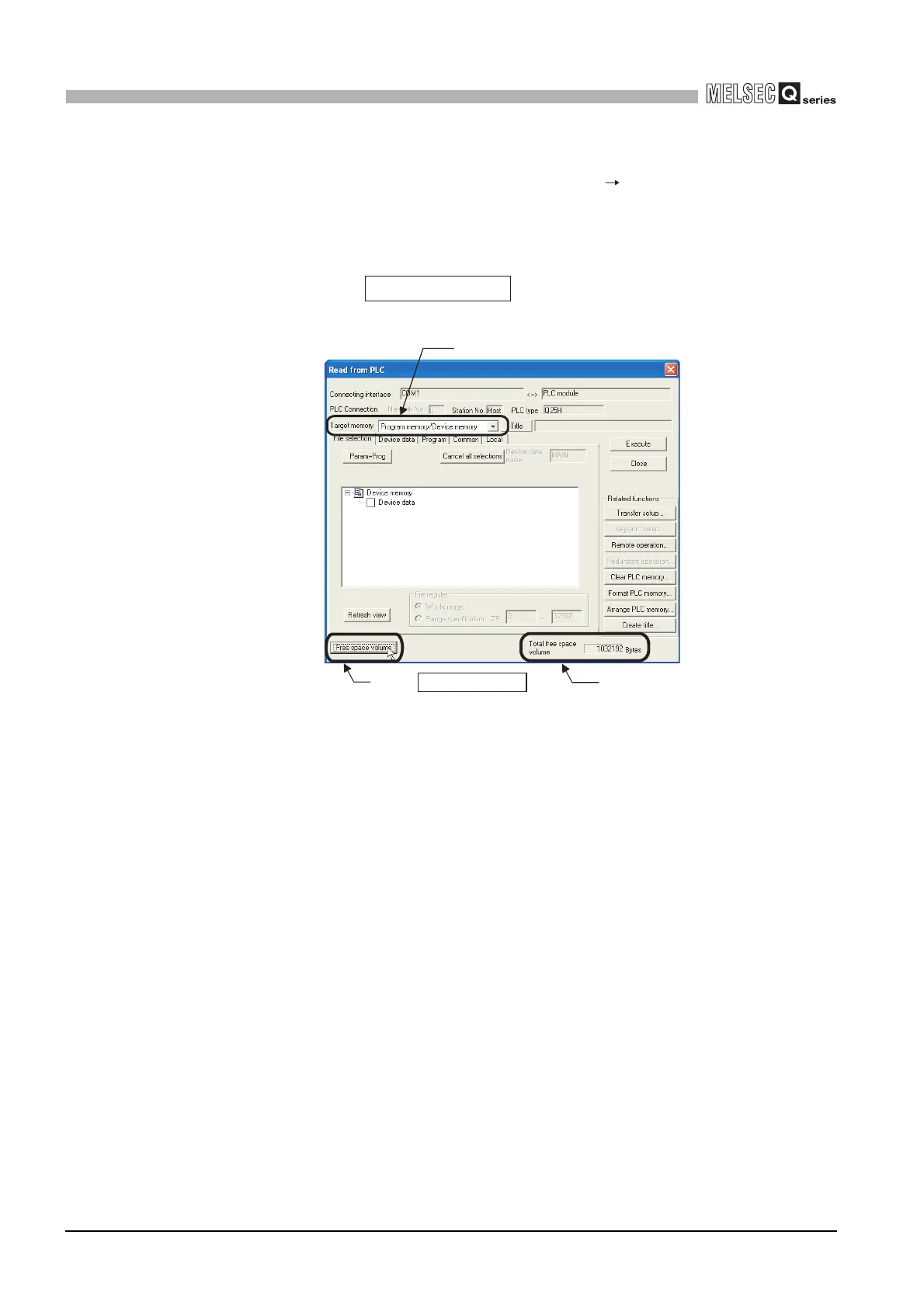

Figure 5.15 Memory capacity checking procedure
Free space volume
1) Select target memory.
2) Click Free space volume button.
3) Memory capacity is displayed.
