9

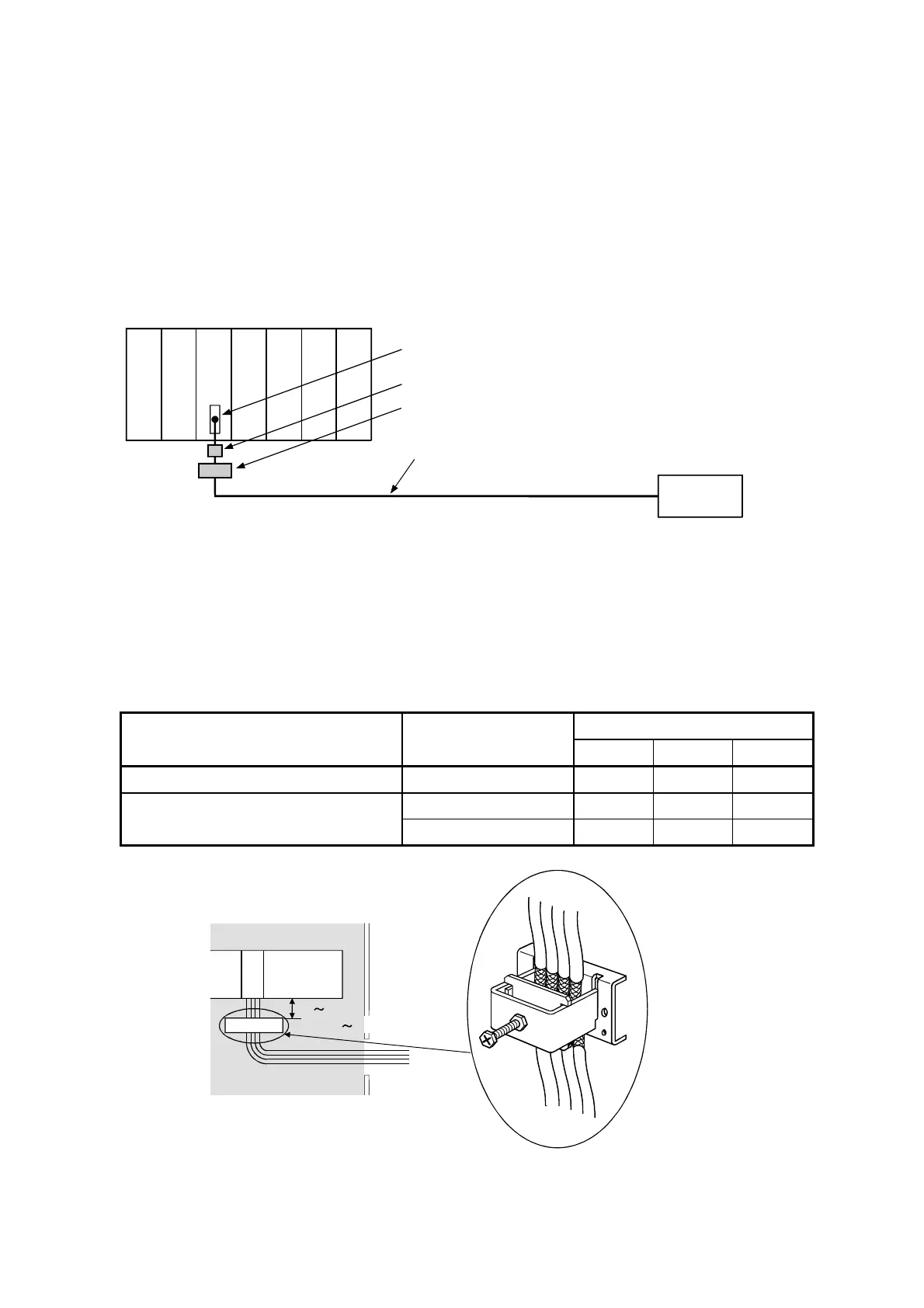

(b) When wiring with cable that exceeds 2 m (6.56 ft.), but is 10 m (32.81 ft.)
or less
• Ground the shield section of the external wiring cable with the cable
clamp.
(Ground the shield at the closest location to the A1SD75 external
wiring connector.)
• Install a ferrite core.
• Wire the external wiring cable to the drive unit and external device with
the shortest practicable length of cable.
P
o
w
e
r
s
u
p
p
l
y
m
o
d
u
l
e
C
P
U
m
o
d
u
l
e
A
1
S
D
7
5
m
o
d
u
l
e
Drive unit
External wiring connector
Ferrite core
External wiring cable (2 m to 10 m (6.56 ft. to 32.81 ft.))
Cable clamp
(c) Ferrite core and cable clamp types and required quantities
• Cable clamp
Type: AD75CK (Mitsubishi Electric)
• Ferrite core
Type: ZCAT3035-1330 (TDK ferrite core)
• Required quantity
Required Qty
Cable length Prepared part
1 axis 2 axes 3 axes
Within 2 m (6.56 ft.) AD75CK 1 1 1
AD75CK 1 1 1
2 m (6.56 ft.) to 10m (32.81 ft.)
ZCAT3035-1330 1 2 3
A1SD75
20 30cm
Inside control panel
AD75CK
(7.87 11.81inch)
