Mitsubishi QJ71LP21-25 User Manual

2 - 11 2 - 11
MELSEC-Q
2 SYSTEM CONFIGURATION

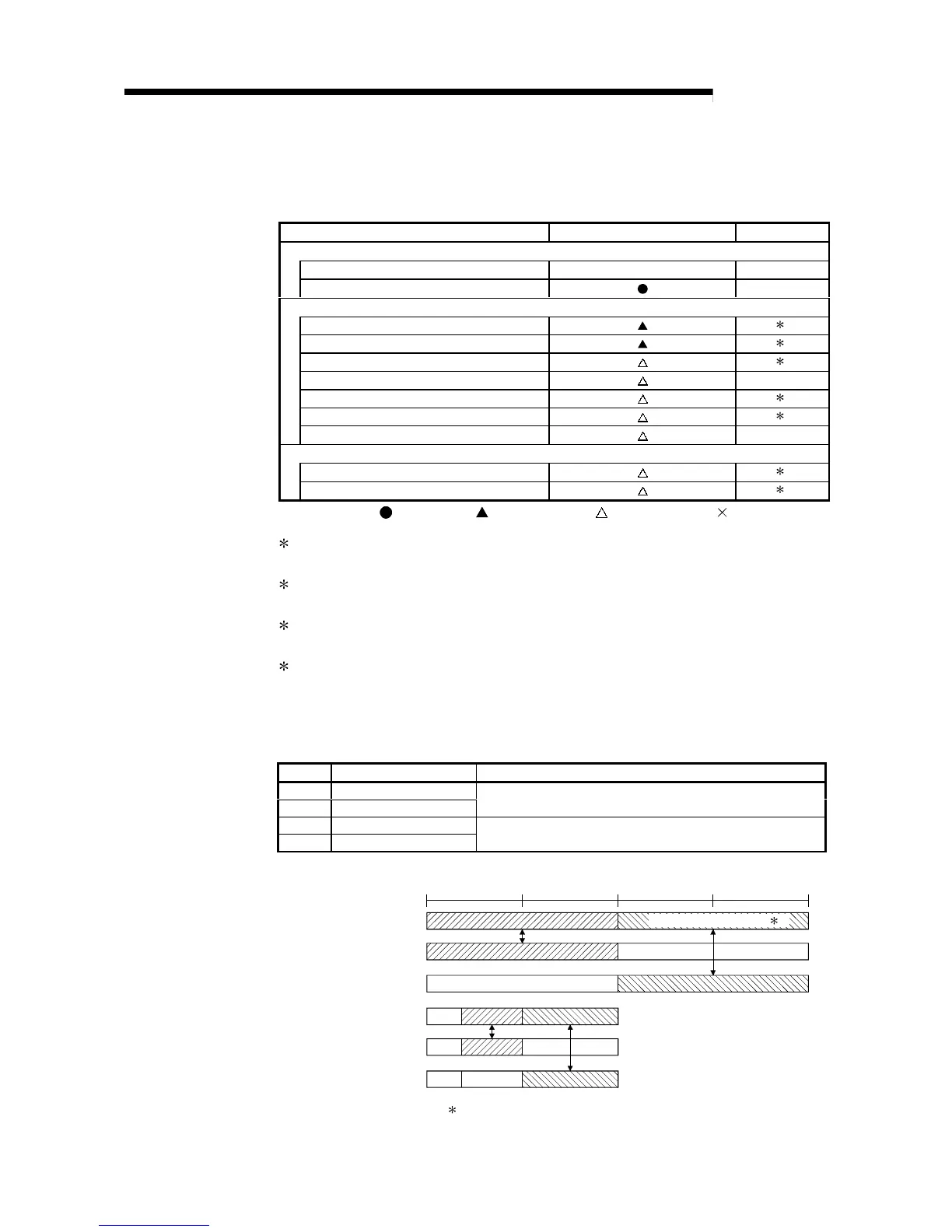

(2) Table 2.8 shows the setting items for the remote I/O module main module for the
remote I/O station (R) and the parameter setting items from the GX Developer.
Table 2.8 Remote I/O station setting items
Setting items Remote I/O station (R) Reference
Network module main module switch
STATION NO. 1 to 64 Section 4.2.2
MODE Section 4.2.2
Parameter setting
PLC system setting
2
PLC RAS setting
2
I/O assignment
2
Operation setting Section 5.2.1
Ethernet setting
3
CC-Link setting
4
Remote password setting Section 7.12
GX Configurator setting
Initial setting
5
Auto refresh setting
5
: Always set,
:
Default setting,
:
Set as needed,
:
No need to set
2 : Refer to "QCPU User's Manual (Functional Explanation: Program Fundamentals)
(SH-080484ENG)".
3 : Refer to "Q Corresponding Ethernet Interface Module User's Manual (Basic) (SH-
080009)". Note that interrupt setting is not available.
4 : Refer to "CC-Link System Master/Local Module User's Manual (SH-080394E)".
Note that interrupt setting is not available.
5 : Refer to the user's manual of the corresponding intelligent function module.
2.4.3 Available device ranges
The remote I/O network can use the following device ranges in the network module.
Device Available range Others
LB 0
H
to 3FFF
H
(16384 points)
LW 0
H
to 3FFF
H
(16384 points)
—
LX 0
H
to 1FFF
H
(8192 points)
LY 0
H
to 1FFF
H
(8192 points)
The device range (excluding that of I/O module mounted on the host
station) should be assigned to each network module.
B/W
LB/LWRemote I/O network 2
LB/LW
CPU module
0
3FFF
H
2000
H
3000
H
(4096)
1000
H
(8192) (12288) (16383)
Remote I/O network 1
X/Y
LX/LYRemote I/O network 2
LX/LY
CPU module
Remote I/O network 1
Real I/O
Real I/O
Real I/O
1: Expandable by changing from [PLC parameters] - [Device settings]
Extended function area 1
