8 - 3 8 - 3
MELSEC-Q
8 SPECIFICATIONS OF CONNECTOR/TERMINAL BLOCK CONVERTER
MODULES

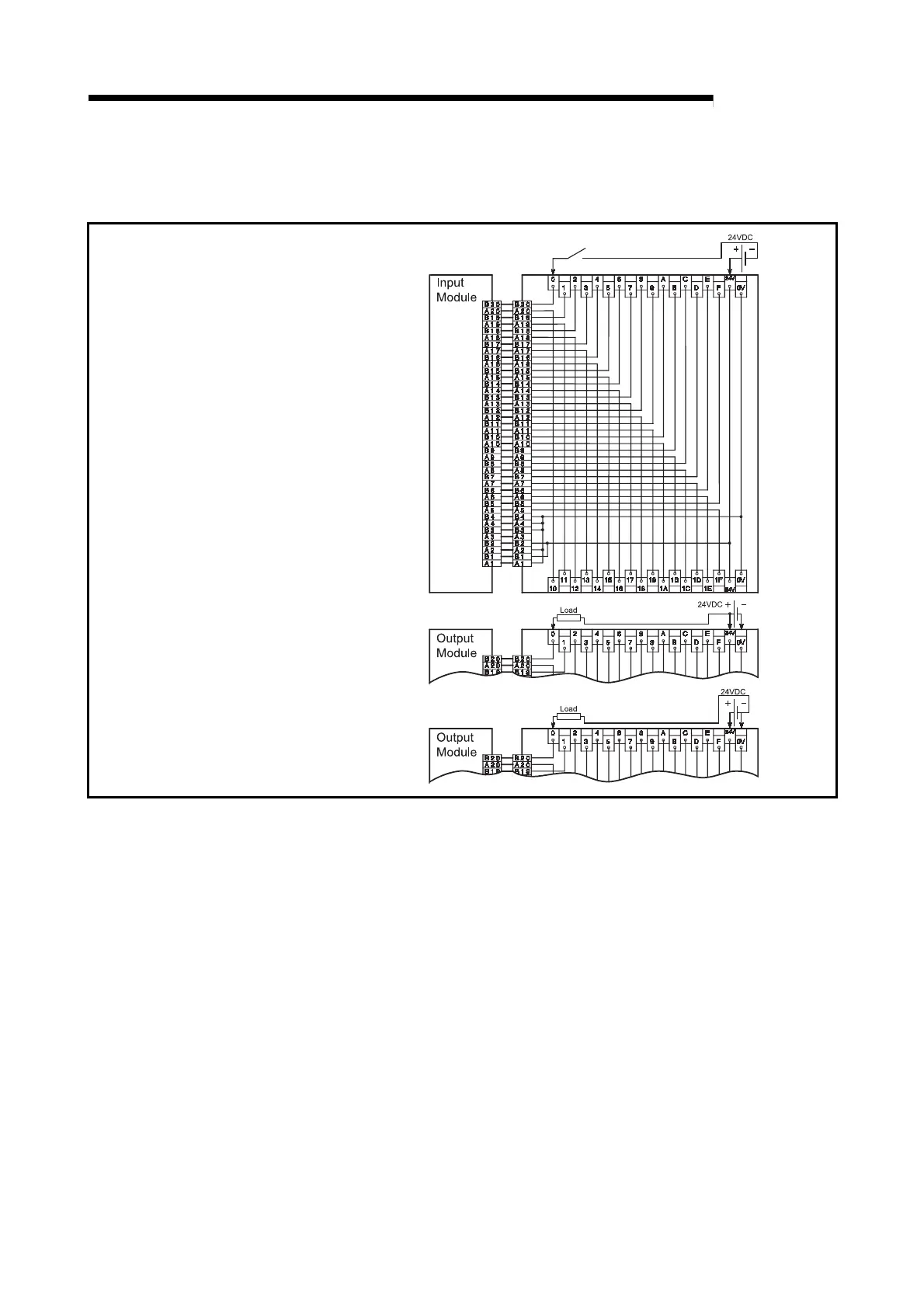

8.2 Connector/terminal block converter module connection diagrams
8.2.1 A6TBXY36
(1) When connecting an input
module
(2) When connecting an
output module
(a) Sink type
(b) Source type
