APPENDICES

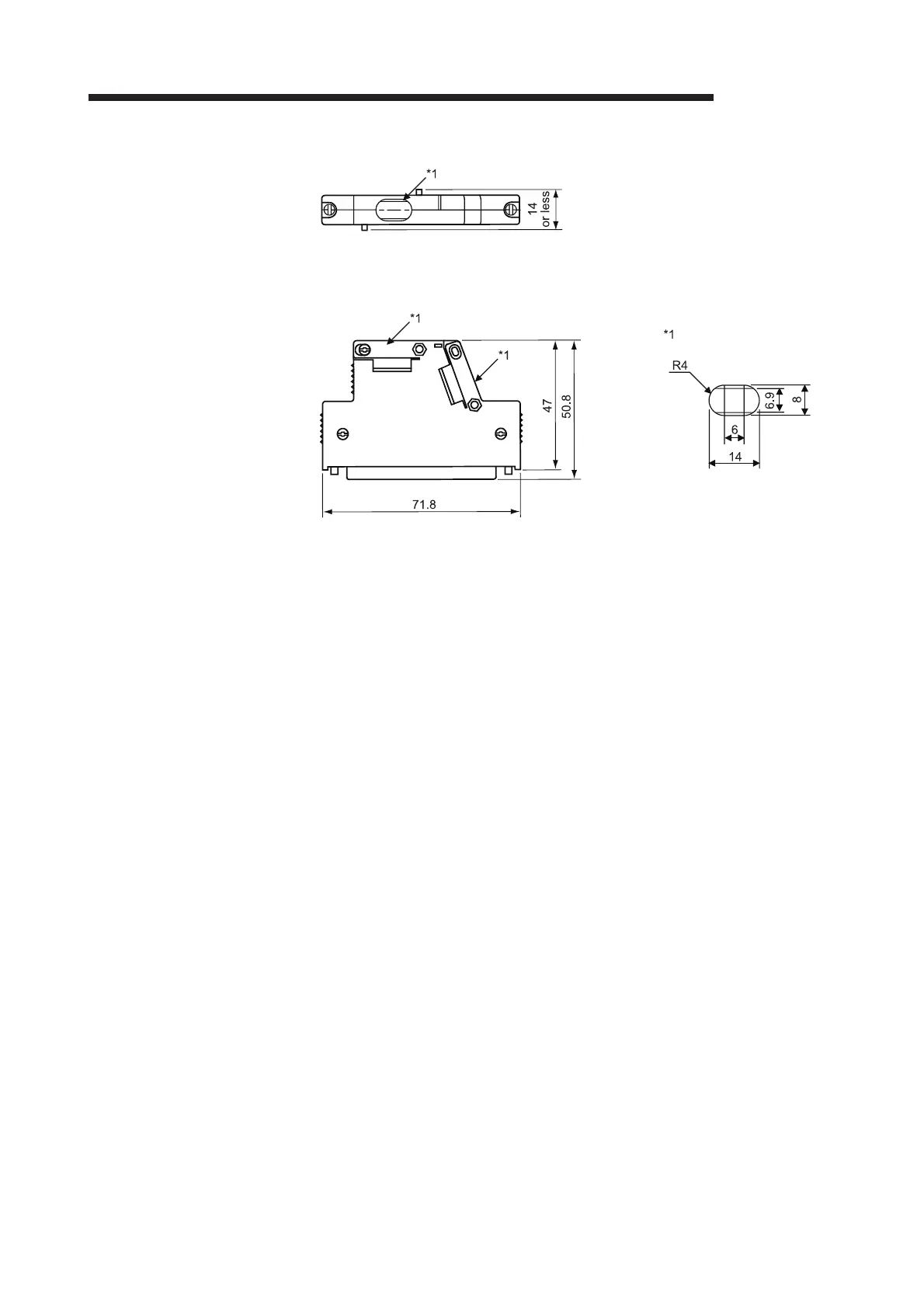

(c) A6CON4 soldering type
Unit: mm
If the cable diameter is thinner than the clamp portion, wind tape, etc. to
secure the cable so that it will not come off the cable clamp portion.
If the cable is made of slippery material, it is recommended to take anti-slip
measures by winding rubber-based tape, etc.
