3-10
Chapter 3 OPERATION
Coolant level - Check
1. Open the radiator filler cap and check the coolant
level.
2. If the coolant level is low, add coolant to the speci-
fied level.
Note: Determine the quantities of LLC based on the
coolant capacity and the LLC concentration
chart.
For the coolant, refer to "COOLANT" (6-1). For
the coolant capacity, refer to "MAIN SPECIFICA-
TIONS" (12-1).
3. If a reserve tank is equipped, fill the reserve tank
with coolant up to the "FULL" level line.

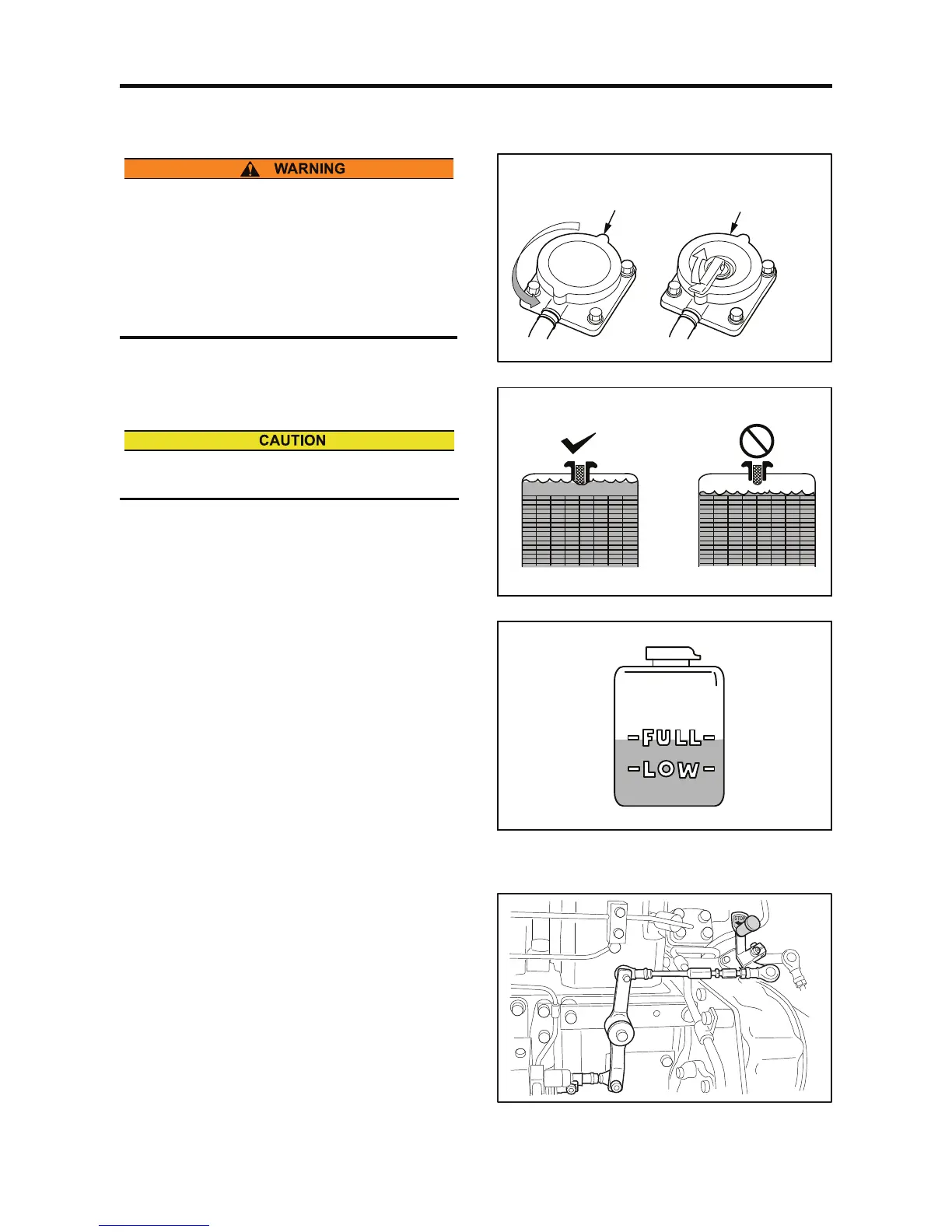

Fig. 3-16 Radiator filler cap
Fig. 3-17 Radiator coolant level
Fig. 3-18 Reserve tank coolant level
Fuel control link - Check
Check fuel control link for smooth movement.
Also check ball joint for looseness and play.
Fig. 3-19 Fuel control link - Check
Remove the radiator cap only after the engine has
cooled to room temperature. Place a waste cloth
over the cap, and loosen the cap about a half-turn or
stand the lever to the upright position to release inter-
nal pressure. Never open the radiator filler cap while
the engine is hot, otherwise the steam or hot coolant
spurts out and you may be scald with it.
Always use the coolant with the same LLC concen-
tration.
Turn the cap about
half a turn
Stand the lever to
the upright position
