101
-
'15 • SRK-T-171

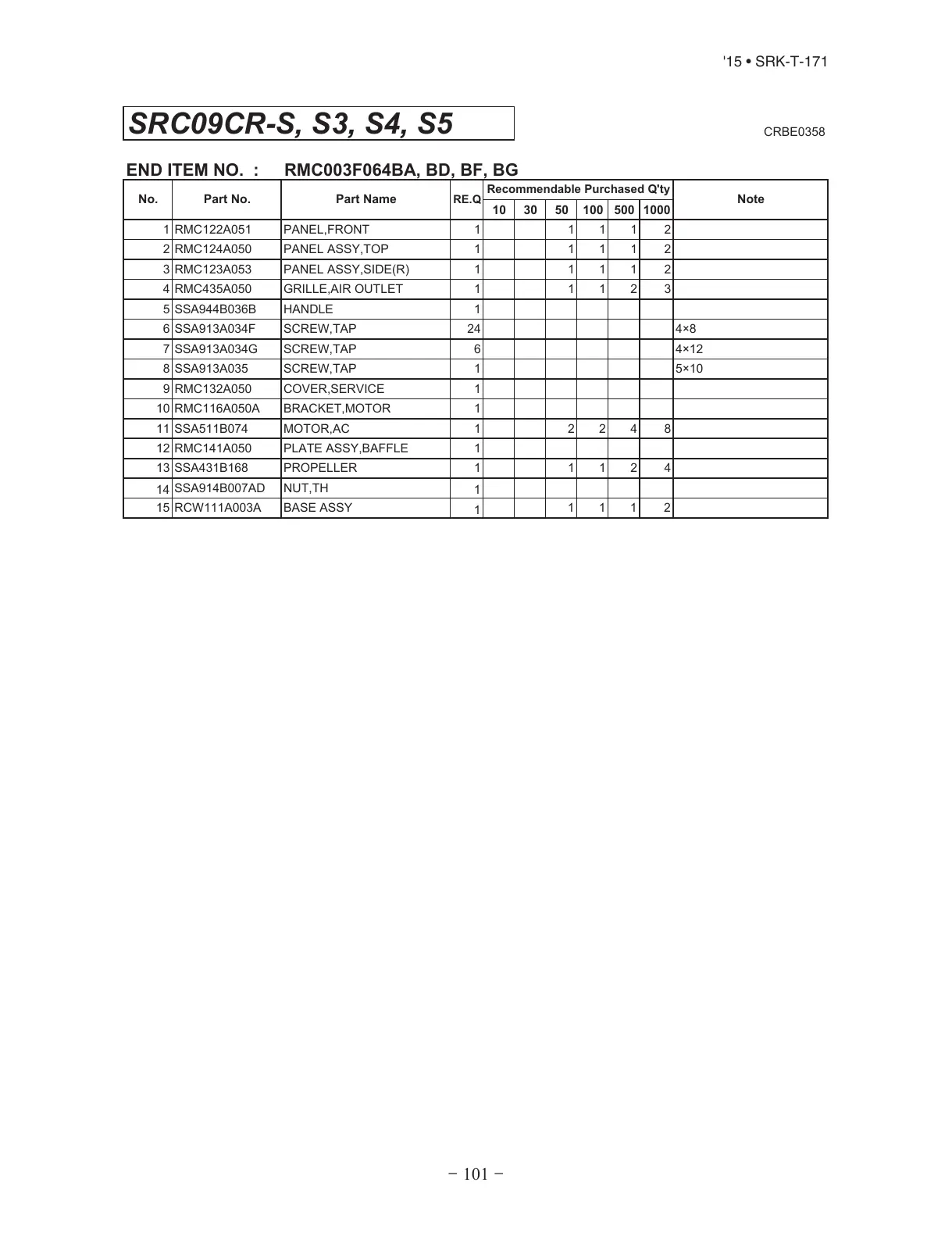

SRC09CR-S, S3, S4, S5
CRBE0358
END ITEM NO. : RMC003F064BA, BD, BF, BG
10 30 50 100 500 1000
1 RMC122A051 PANEL,FRONT 1 1 1 1 2
2 RMC124A050 PANEL ASSY,TOP 1 1 1 1 2
3 RMC123A053 PANEL ASSY,SIDE(R) 1 1 1 1 2
4 RMC435A050 GRILLE,AIR OUTLET 1 1 1 2 3
5 SSA944B036B HANDLE 1
6 SSA913A034F SCREW,TAP 24 4×8
7 SSA913A034G SCREW,TAP 6 4×12
8 SSA913A035 SCREW,TAP 1 5×10
9 RMC132A050 COVER,SERVICE 1
10 RMC116A050A BRACKET,MOTOR 1
11 SSA511B074 MOTOR,AC 1 2 2 4 8
12 RMC141A050 PLATE ASSY,BAFFLE 1
13 SSA431B168 PROPELLER 1 1 1 2 4
14
SSA914B007AD NUT,TH
1
15 RCW111A003A BASE ASSY
1
1 1 1 2
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
