89
-
'15 • SRK-T-171

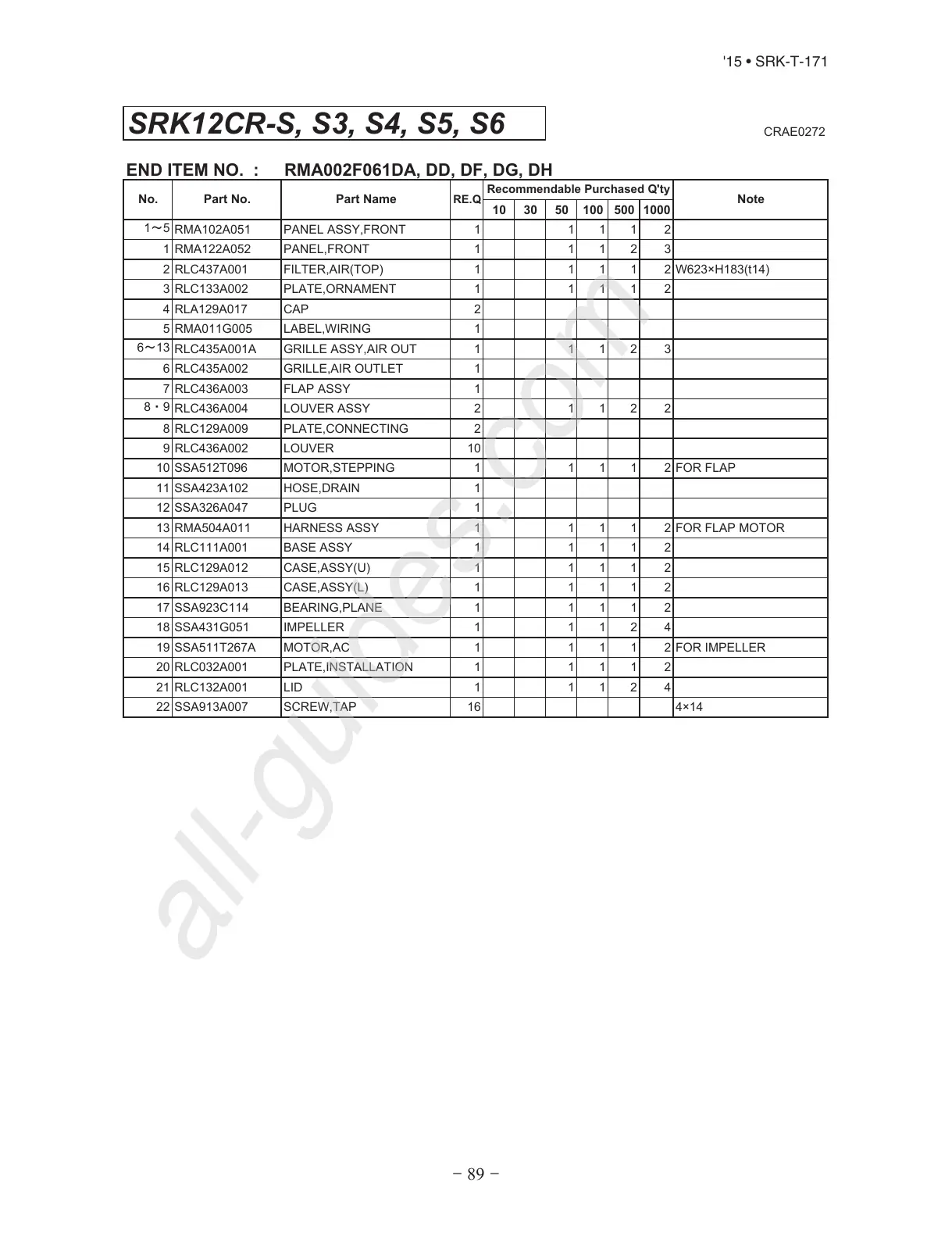

SRK12CR-S, S3, S4, S5, S
6
CRAE0272
END ITEM NO. : RMA002F061DA, DD, DF, DG, DH
10 30 50 100 500 1000
1㹼5
RMA102A051 PANEL ASSY,FRONT 1 1 1 1 2
1 RMA122A052 PANEL,FRONT 1 1 1 2 3
2 RLC437A001 FILTER,AIR(TOP) 1 1 1 1 2 W623×H183(t14)
3 RLC133A002 PLATE,ORNAMENT 1 1 1 1 2
4 RLA129A017 CAP 2
5 RMA011G005 LABEL,WIRING 1
6㹼13
RLC435A001A GRILLE ASSY,AIR OUT 1 1 1 2 3
6 RLC435A002 GRILLE,AIR OUTLET 1
7 RLC436A003 FLAP ASSY 1
8࣭9
RLC436A004 LOUVER ASSY 2 1 1 2 2
8 RLC129A009 PLATE,CONNECTING 2
9 RLC436A002 LOUVER 10
10 SSA512T096 MOTOR,STEPPING 1 1 1 1 2 FOR FLAP
11 SSA423A102 HOSE,DRAIN 1
12 SSA326A047 PLUG 1
13 RMA504A011 HARNESS ASSY 1 1 1 1 2 FOR FLAP MOTOR
14 RLC111A001 BASE ASSY 1 1 1 1 2
15 RLC129A012 CASE,ASSY(U) 1 1 1 1 2
16 RLC129A013 CASE,ASSY(L) 1 1 1 1 2
17 SSA923C114 BEARING,PLANE 1 1 1 1 2
18 SSA431G051 IMPELLER 1 1 1 2 4
19 SSA511T267A MOTOR,AC 1 1 1 1 2 FOR IMPELLER
20 RLC032A001 PLATE,INSTALLATION 1 1 1 1 2
21 RLC132A001 LID 1 1 1 2 4
22 SSA913A007 SCREW,TAP 16 4×14
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
