95
-
'15 • SRK-T-171

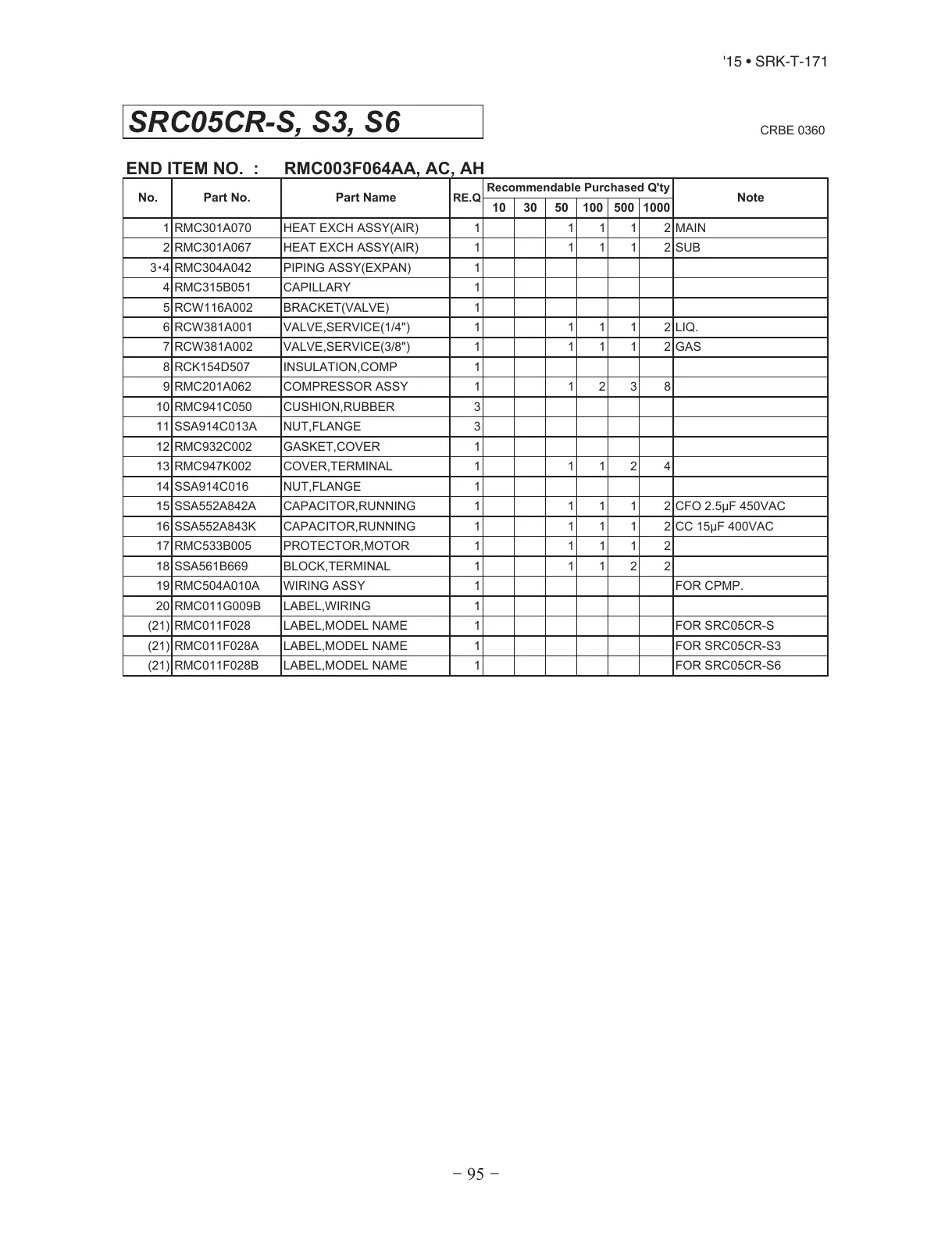

SRC05CR-S, S3, S
6
CRBE 0360
END ITEM NO. : RMC003F064AA, AC, AH
10 30 50 100 500 1000
1 RMC301A070 HEAT EXCH ASSY(AIR) 1 1 1 1 2 MAIN
2 RMC301A067 HEAT EXCH ASSY(AIR) 1 1 1 1 2 SUB
3䞉4 RMC304A042 PIPING ASSY(EXPAN) 1
4 RMC315B051 CAPILLARY 1
5 RCW116A002 BRACKET(VALVE) 1
6 RCW381A001 VALVE,SERVICE(1/4") 1 1 1 1 2 LIQ.
7 RCW381A002 VALVE,SERVICE(3/8") 1 1 1 1 2 GAS
8 RCK154D507 INSULATION,COMP 1
9 RMC201A062 COMPRESSOR ASSY 1 1 2 3 8
10 RMC941C050 CUSHION,RUBBER 3
11 SSA914C013A NUT,FLANGE 3
12 RMC932C002 GASKET,COVER 1
13 RMC947K002 COVER,TERMINAL 1 1 1 2 4
14 SSA914C016 NUT,FLANGE 1
15 SSA552A842A CAPACITOR,RUNNING 1 1 1 1 2 CFO 2.5ȝF 450VAC
16 SSA552A843K CAPACITOR,RUNNING 1 1 1 1 2 CC 15ȝF 400VAC
17 RMC533B005 PROTECTOR,MOTOR 1 1 1 1 2
18 SSA561B669 BLOCK,TERMINAL 1 1 1 2 2
19 RMC504A010A WIRING ASSY 1 FOR CPMP.
20 RMC011G009B LABEL,WIRING 1
(21) RMC011F028 LABEL,MODEL NAME 1 FOR SRC05CR-S
(21) RMC011F028A LABEL,MODEL NAME 1 FOR SRC05CR-S3
(21) RMC011F028B LABEL,MODEL NAME 1 FOR SRC05CR-S6
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
