Mitsubishi SRK19CES

-
132
-

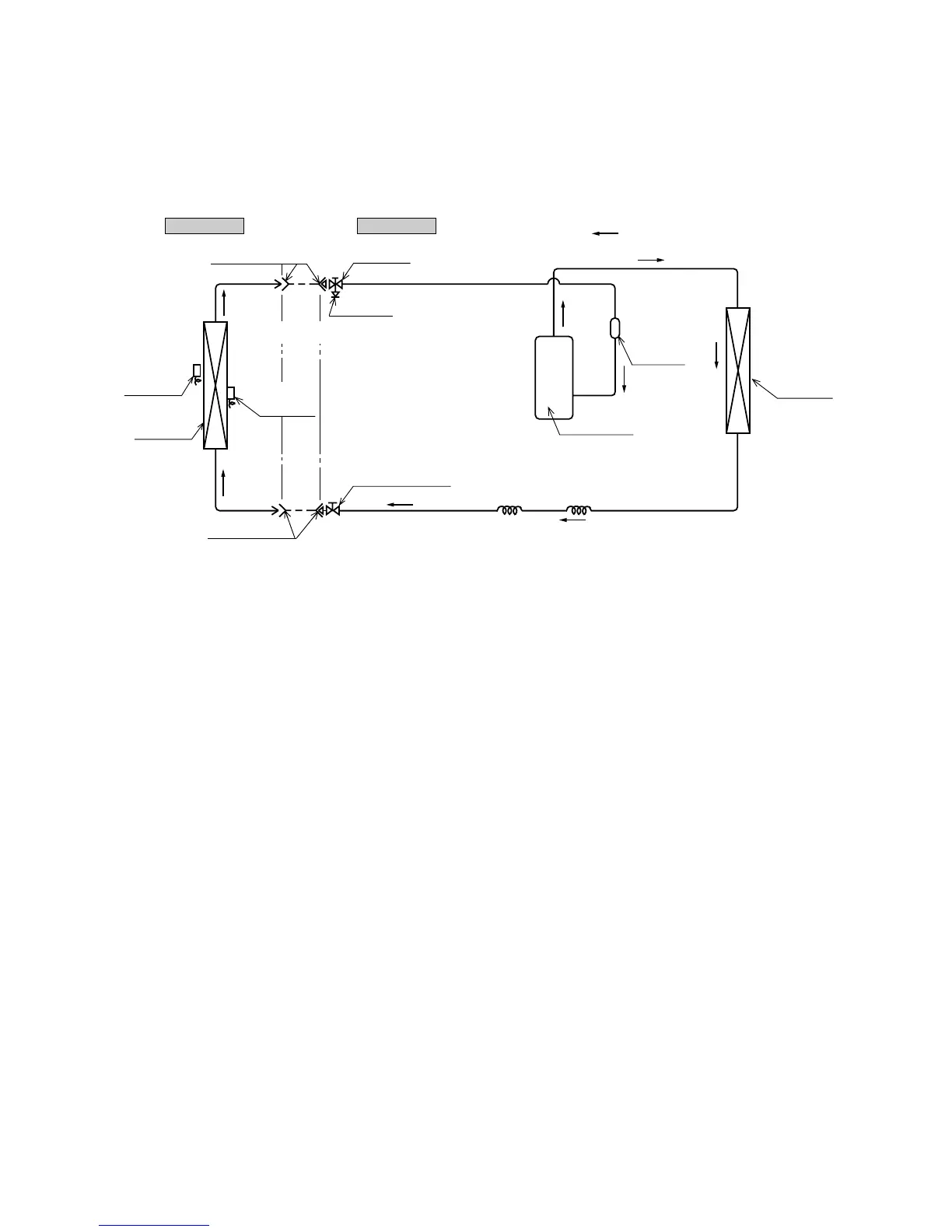

(4) Piping system
Models SRK10CES, 13CES
Outdoor unitIndoor unit
Room temp.
sensor
Heat
exchanger
Flare connecting
Heat
exchanger
sensor
Piping
(Liquid)
ø6.35
Check joint
Service valve (Liquid)
Flare connecting
Cooling cycle
Heat
exchanger
Compressor
Capillary tube
Accumulator
Service valve
(Gas)
Capillary tube
( )
Piping
(Gas)
10 : ø9.52
13 : ø12.7
