Page 8
MODELS: WD-57733 / WD-65733 / WD-73733 / WD-57734 / WD-65734 / WD-73734 / WD-C657 / WD-Y577
WD-Y657 / WD-57833 / WD-65833 / WD-73833
V36 & V377
V387
Chassis Disassembly
SHIELD-MAIN-TERMINAL Removal

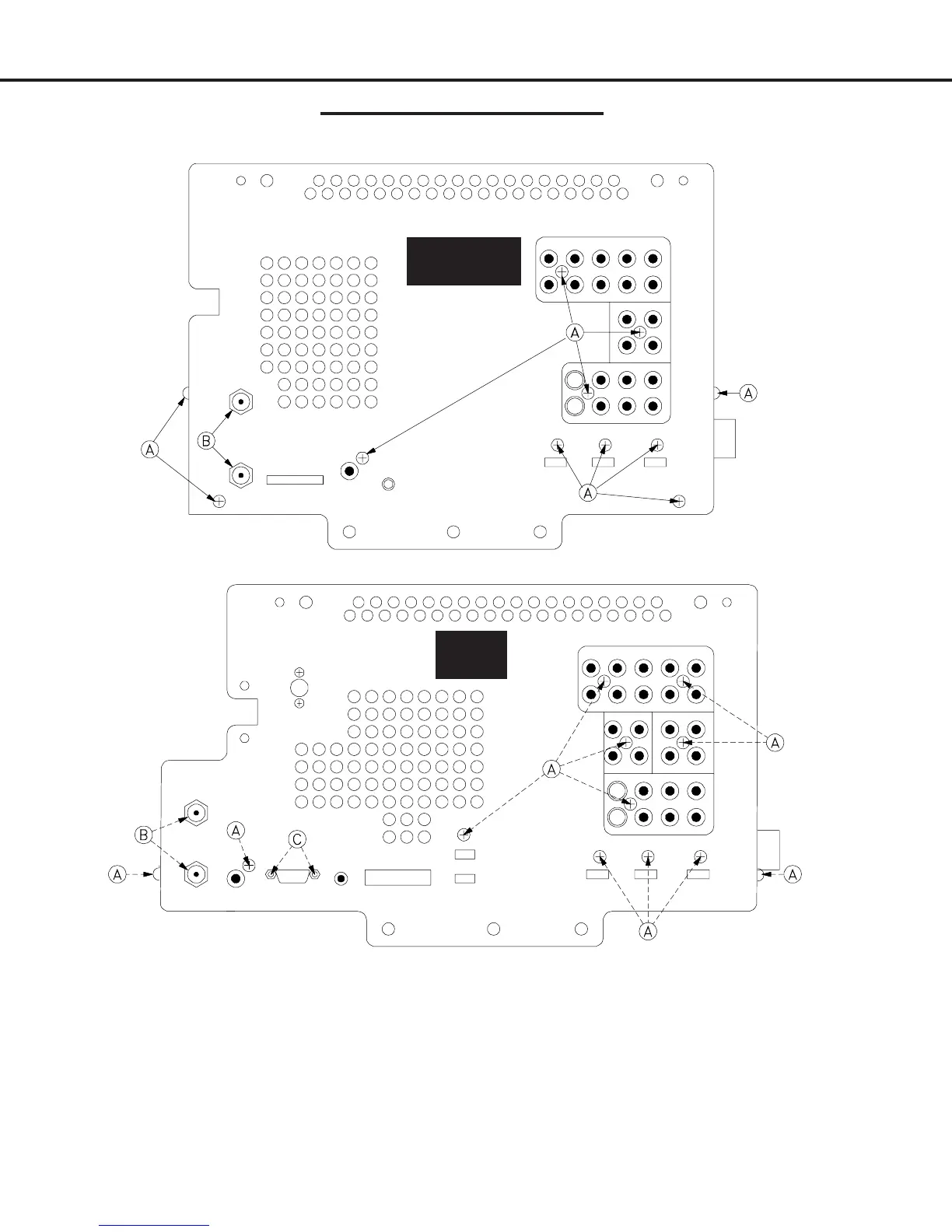

Shield-Main-Terminal Removal Procedure
1) Remove two nuts (B) from the RF inputs.
2) Remove two hex screws (C) from the Monitor Link socket. (V38 ONLY)
3) Remove 11 screws (A) that secure the Main Terminal Shield to the chassis.
4) Pull the Main Terminal Shield away from the chassis.
