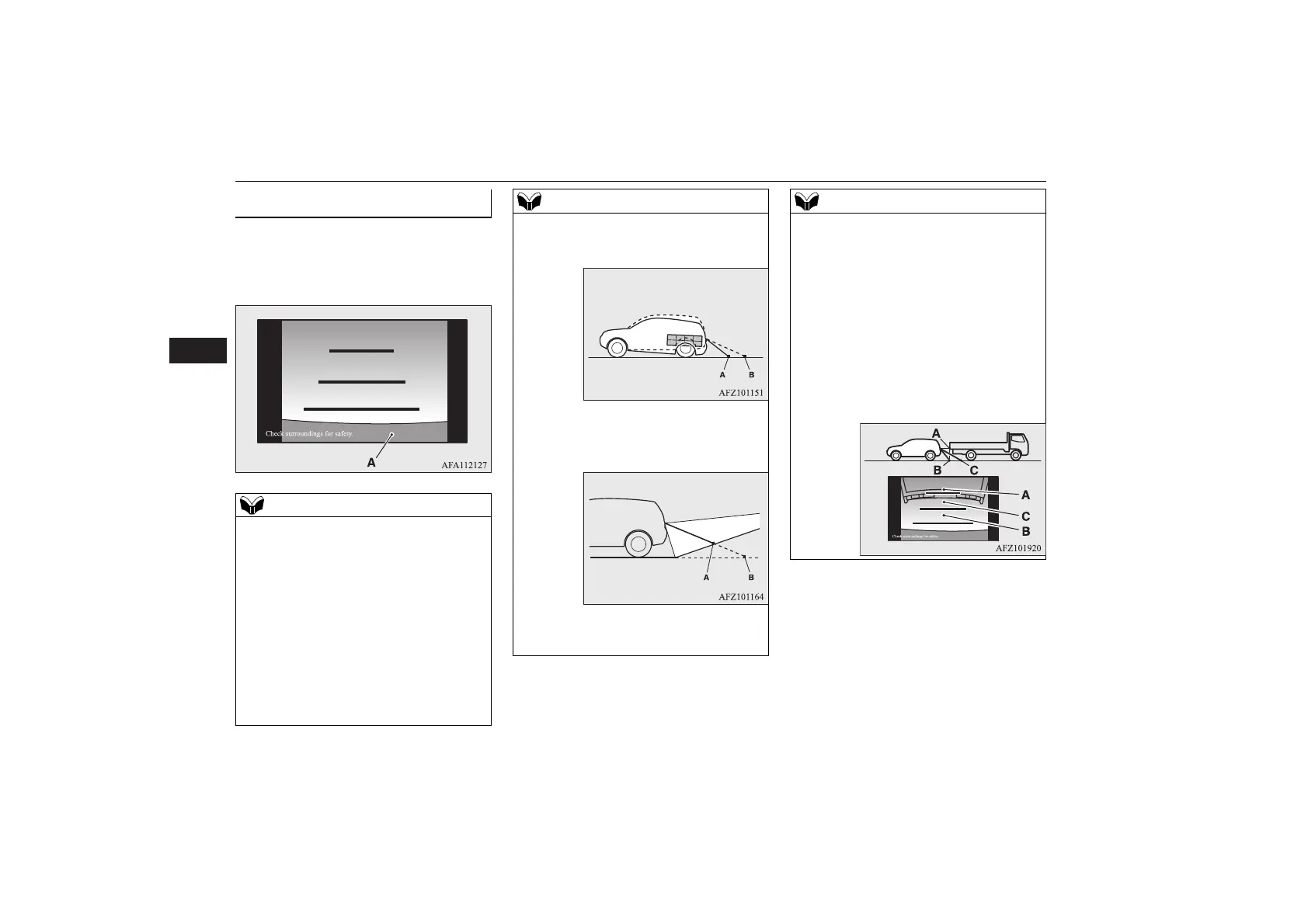

Rear-view camera
6-46 Starting and driving
6
Three reference lines for distance and the top
of the rear bumper (A) are shown on the
screen.
Reference lines on the screen
The screen display may vary depending on
the equipped audio system.
When the vehicle is tilting because of the
number of people in the vehicle, the weight
and positioning of luggage, and/or the condi-
tion of the road surface, the lines in the view
from the rear-view camera may not be accu-
rately positioned relative to the actual road.
The reference lines for distance and vehicle
width are based on a level, flat road surface.
In the following cases, objects shown on the
screen will appear to be farther off than they
actually are.
• When the rear of the vehicle is weighed
down with the weight of passengers and
luggage in the vehicle.
A: Actual objects
B: Objects shown on the screen
• When there is an upward slope at the back.
A: Actual objects
B: Objects shown on the screen
The reference lines for distance and vehicle
width are intended to indicate the distance to
a flat object such as a level, flat road surface.
This may make the distance to a projecting
object shown on the screen differ from the
actual distance to the projecting object. Do
not use them as a guide to distances to solid
objects.
Example: On the screen the point B appears
the nearest, then the point C and A in order
of distance. The point A and B actually are
the same distances from the vehicle, and the
point C is farther off than the point A and B.
