Fuses
Maintenance 10-17
10

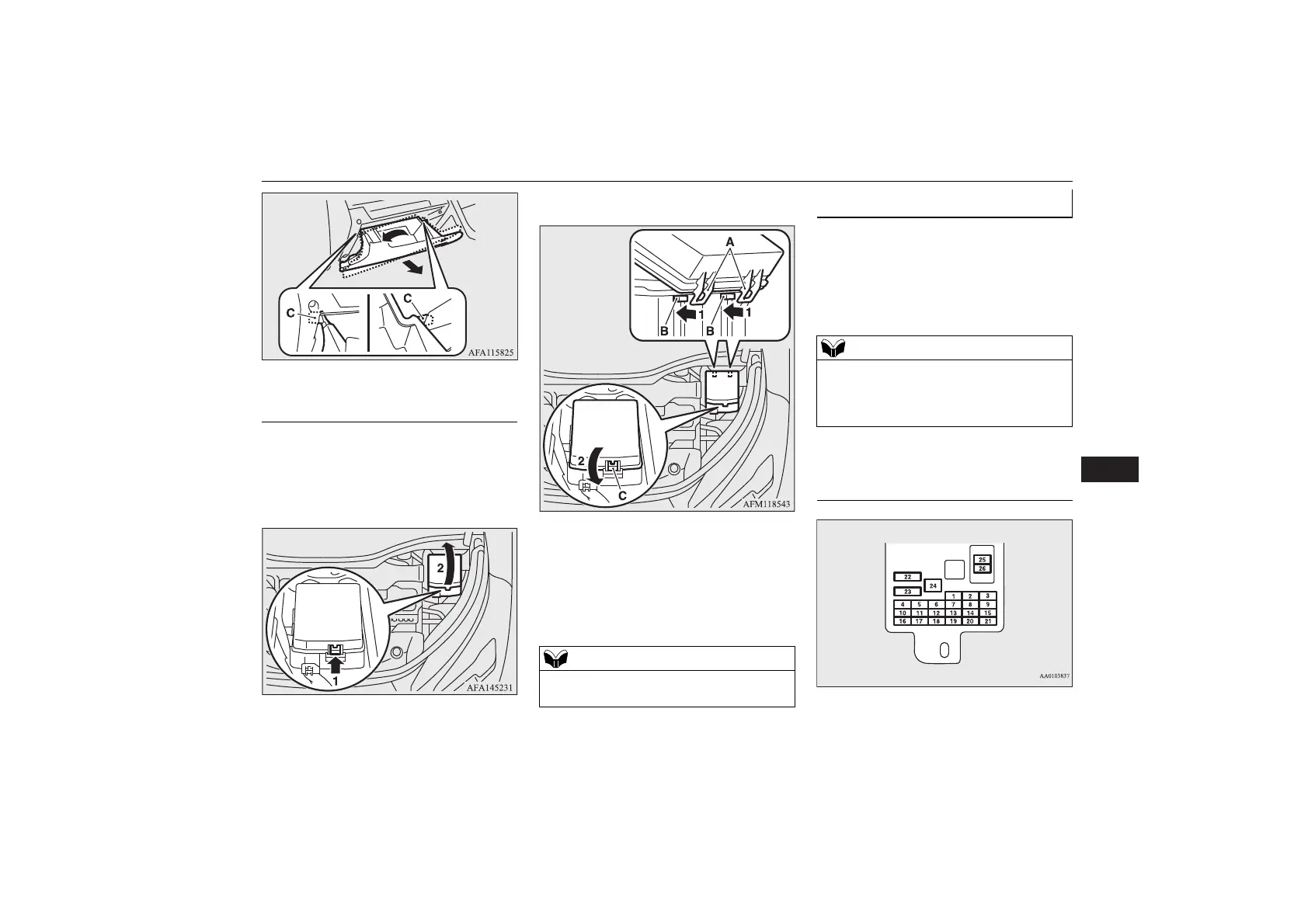

In the engine compartment, the fuse block is
located as shown in the illustration.
E01007702255
The fuse capacity and the names of electrical
systems protected by the fuses are indicated
on the back of the glove box and inside of the
fuse block cover (inside of the engine com-
partment).
E01007902606
Engine compartment
To remove
1- Press the tab.
2- Remove the cover.
To install
1- Securely hook the hooks (A) at two
locations on the back side of the cover
to the tabs (B) on the fuse block.
2- Push down on the front side of the top
surface of the cover to lock the front
side tab (C).
After the work is completed, check that the
cover is securely attached.
Fuse load capacity
Spare fuses are provided on the cover of fuse
block in the engine compartment. Always
use a fuse of the same capacity for replace-
ment.
