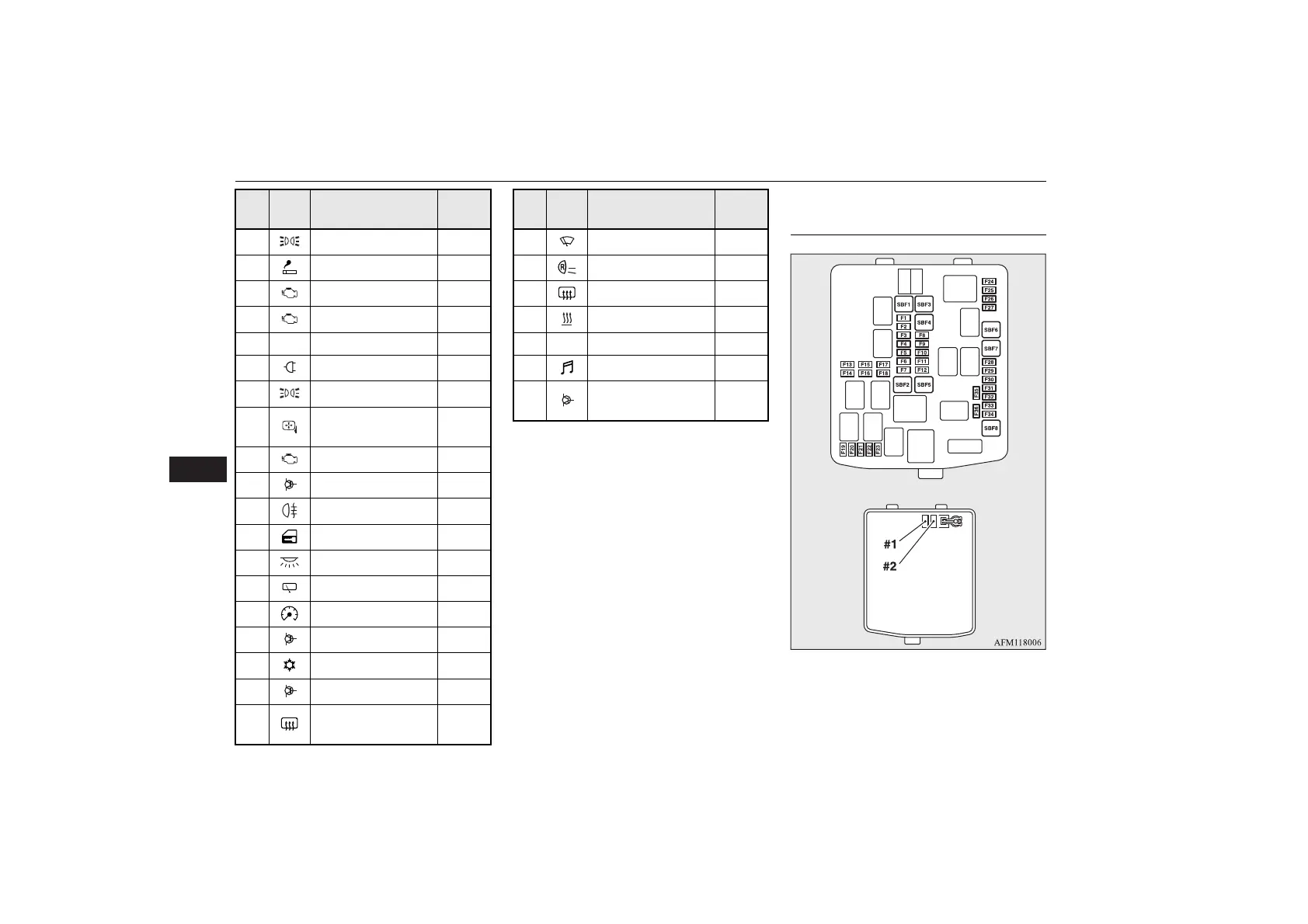

Fuses
10-18 Maintenance
10
Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
The table above shows the main equip-
ment corresponding to each fuse.
E01008002978
No.
Sym-
bol
Electrical system
Capac-
ity
1 Tail lamp (left) 7.5 A
2 Cigarette lighter 15 A
3 Ignition coil 10 A
4 Starter motor 7.5 A
5—
6 Accessory socket 15 A
7 Tail lamp (right) 7.5 A
8
Outside rear-view
mirrors
7.5 A
9 Engine control unit 7.5 A
10 Control unit 7.5 A
11 Rear fog lamp 10 A
12 Central door lock 15 A
13 Room lamp 15 A
14 Rear window wiper 15 A
15 Gauge 7.5 A
16 Relay 7.5 A
17 Rear cooler 10 A
18 Option 10 A
19
Demister switch Illu-
mination
7.5 A
20 Windscreen wiper 25 A
21 Reversing lamps 7.5 A
22 Demister 30 A
23 Heater 30 A
24
25 Radio 10 A
26
Electronic con-
trolled unit
20 A
No.
Sym-
bol
Electrical system
Capac-
ity
Engine compartment fuse location
table
Behind of the fuse block cover
