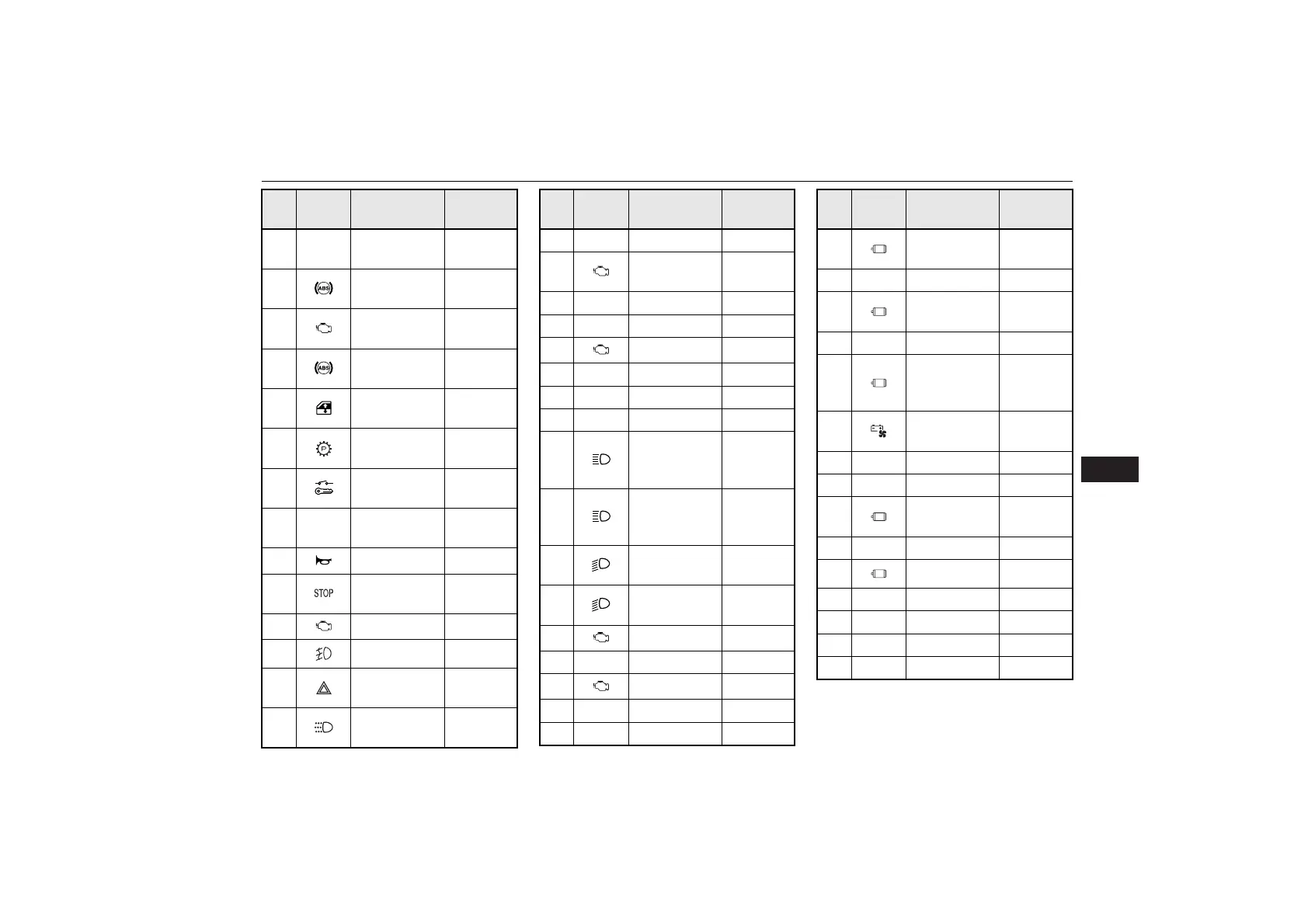

Fuses
Maintenance 10-19
10
*: Fusible link
No. Symbol
Electrical sys-
tem
Capacity
SBF
1
——
SBF
2
Anti-lock
braking system
50 A*
SBF
3
Electric Water
pump
30 A*
SBF
4
Anti-lock
braking system
40 A*
SBF
5
Electric win-
dow control
30 A*
SBF
6
Electrical
parking Lock
30 A*
SBF
7
Ignition switch 40 A*
SBF
8
——
F1 Horn 10 A
F2
Stop lamps
(Brake lamps)
10 A
F3 ETV 15 A
F4 Fog lamps 15 A
F5
Hazard warn-
ing flasher
10 A
F6
Daytime run-
ning lamps
10 A
F7
F8
Engine con-
trol unit
7.5 A
F9
F10
F11 Ignition coil 7.5 A
F12
F13
F14
F15
Headlamp
high beam
(left)
10 A
F16
Headlamp
high beam
(right)
10 A
F17
Headlamp low
beam (left)
10 A
F18
Headlamp low
beam (right)
10 A
F19 ENG/POWER 20 A
F20
F21 Fuel pump 15 A
F22
F23
No. Symbol
Electrical sys-
tem
Capacity
F24
Ignition con-
trol
10 A
F25
F26
Ignition con-
trol
15 A
F27
F28
Water pump
(Electric
motor)
20 A
F29
Drive battery
fan motor
10 A
F30
F31
F32
Battery man-
agement unit
7.5 A
F33
F34 EV 15 A
F35
F36
#1 Spare fuse 25 A
#2 Spare fuse 20 A
No. Symbol
Electrical sys-
tem
Capacity
