Mitsubishi XPANDER HEV 2023 User Manual

Fuses
10-20 Maintenance
10
 Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
 The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A,
10 A, 15 A or 30 A fuses. If one of these
fuses burns out, substitute with the following
fuse.
7.5 A: Outside rear-view mirrors
10 A: Option
15 A: Cigarette lighter
30 A: Demister
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
E01008101536
E01007802197

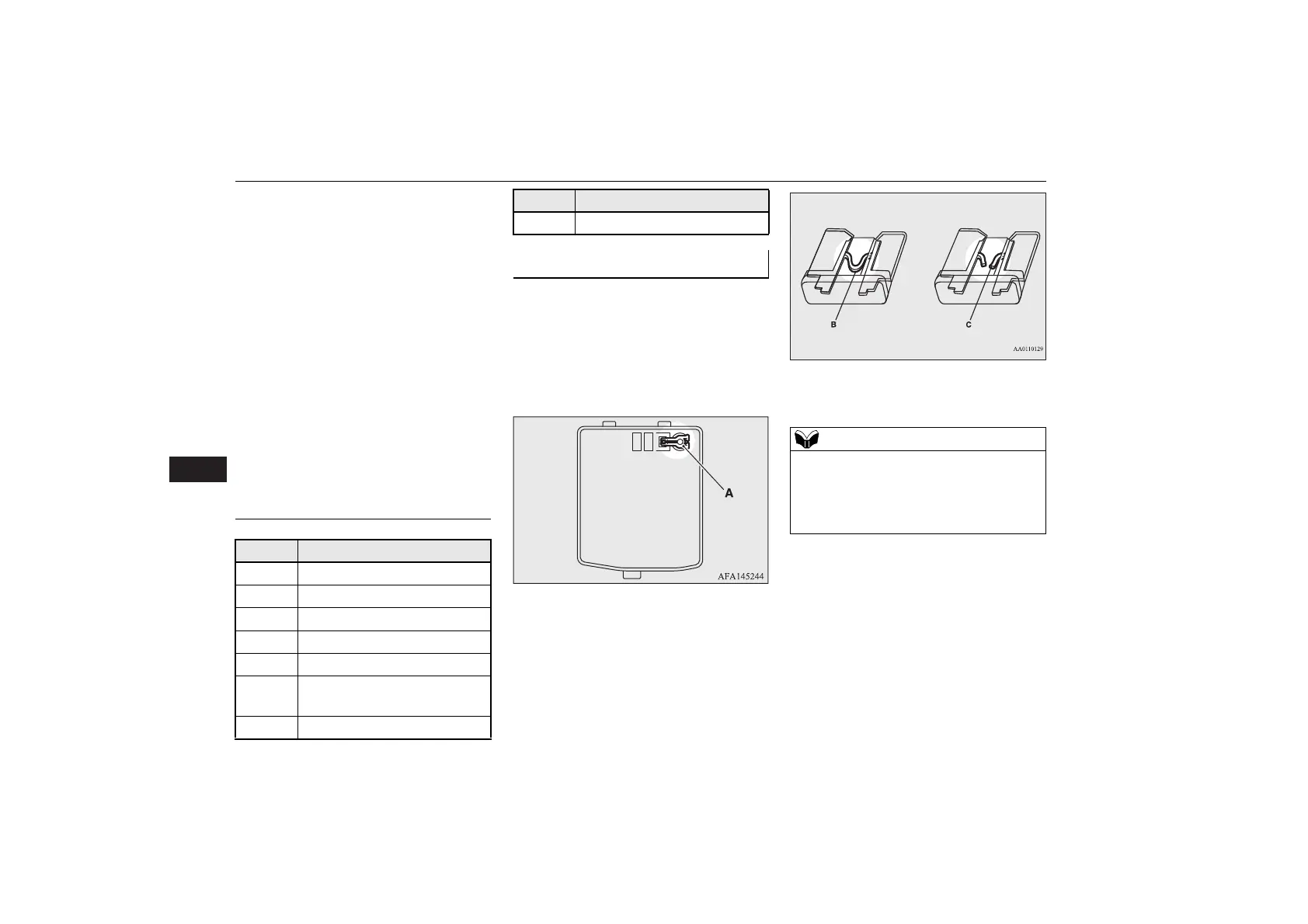

1. Before replacing a fuse, always turn off
the electrical circuit concerned and put the
operation mode of the power switch in
OFF.
2. Remove the fuse puller (A) from the
inside of the fuse block cover in the
engine compartment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
4. Insert a new fuse of the same capacity by
using the fuse puller into the same place
in the fuse block.
Identification of fuse
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A
Green (fuse type) /Pink (fusible
link type)
40 A Green (fusible link type)
50 A Red (fusible link type)
Fuse replacement
Capacity Colour
B- Fuse is OK
C- Blown fuse
NOTE
 If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle
checked.
