Replacement of lamp bulbs
10-24 Maintenance
10
E01004203562

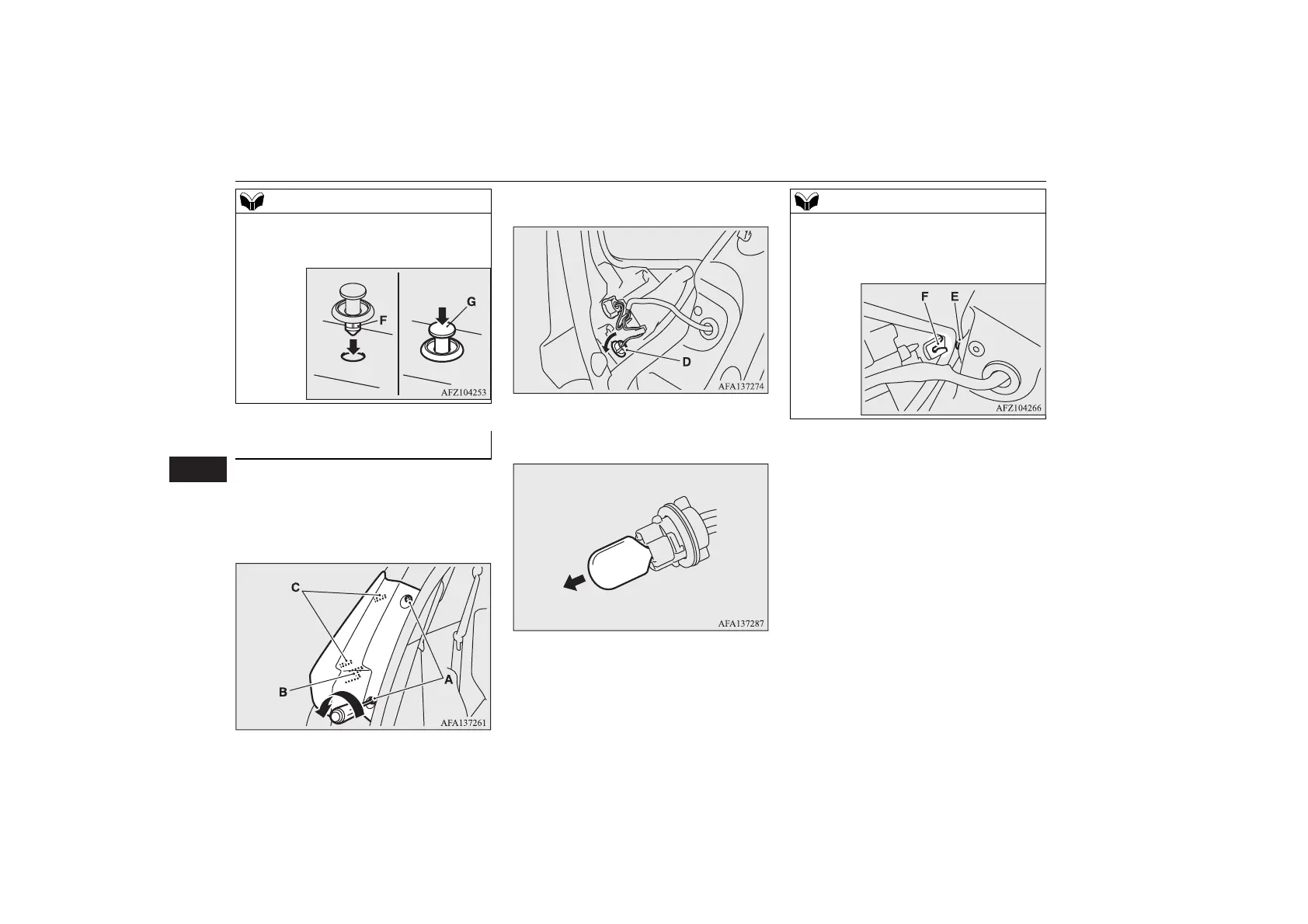

1. Open the tailgate.
2. Remove the screws (A), and then move
the lamp unit towards the rear of the vehi-
cle to unfix the notch (B) and pins (C) of
the lamp unit.
3. Turn the socket anticlockwise and remove
it.
4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal
steps in reverse.
When refitting the clip (A), first insert part
(F) of the clip into the hole and then press
part (G) into it.
Rear combination lamps
D- Rear turn-signal lamp
When installing the lamp unit, fit the clip (E)
on the body into the notch (F) in the lamp
unit, and then push the entire lamp unit
straight into the body.
