Instruments
5-6 Instruments and controls
5
E00574200153

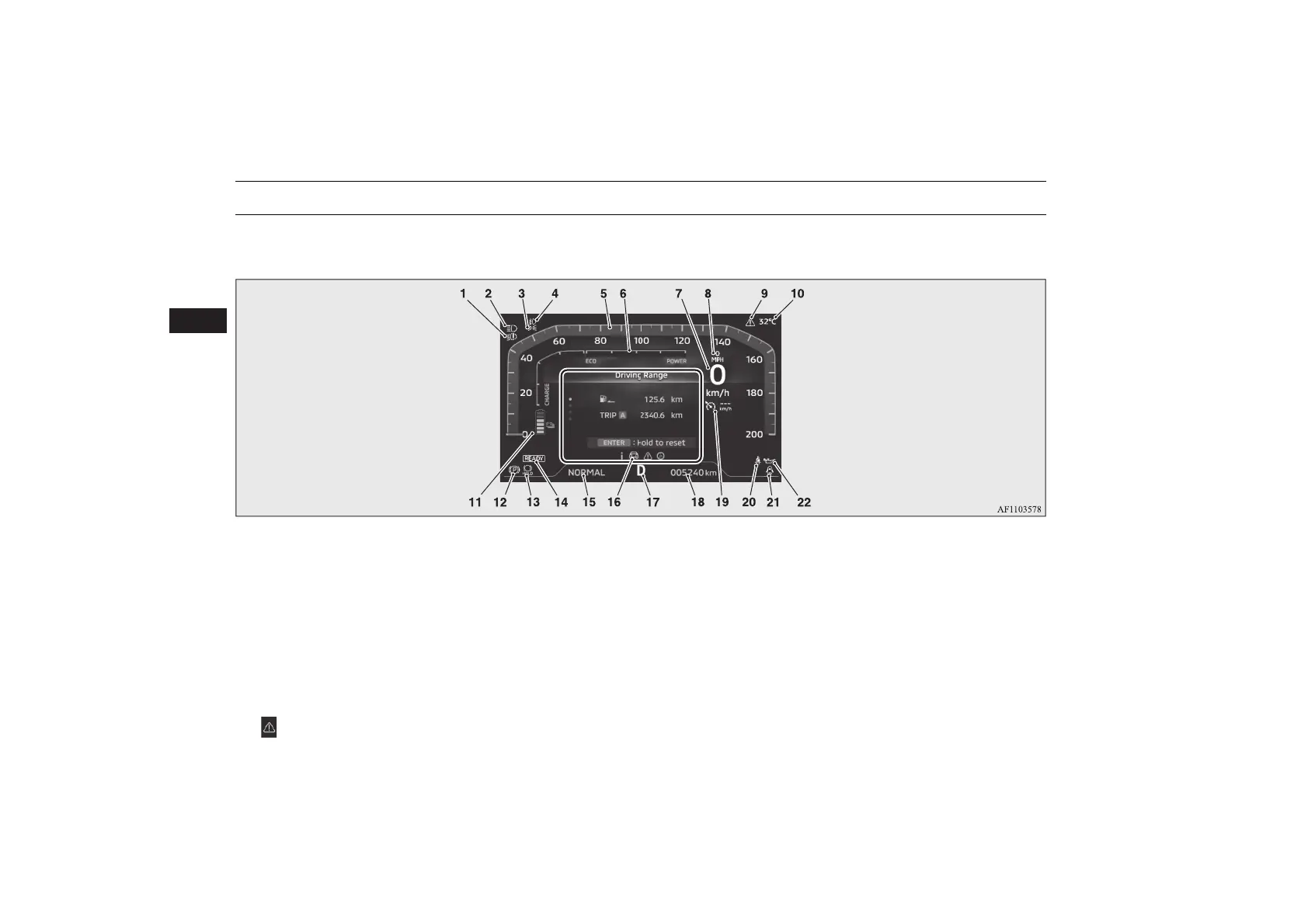

Indication in the display
Type 1
1-LED headlamp warning display
P.5-22
2-High-beam indicator display P.5-20
3-Position lamp indicator display P.5-20
4-Front fog lamp indicator display
P.5-20
5-Analog gauge speedometer
6-Energy usage indicator P.5-8
7-Digital speedometer
8-Sub unit speedometer P.5-12
9-
mark display P.5-15
10-Outside air temperature display
P.5-15
11-Energy level gauge P.5-8
12-Parking brake indicator display P.5-21
13-Brake auto hold standby indicator dis-
play (white) P.6-28
Brake auto hold indicator display (green)
P.6-28
14-READY indicator P.5-21
15-Drive mode indicator P.6-26
16-Multi information screen P.5-9
Interrupt display screen P.5-14
17-Select position indicator P.6-20
18-Odometer P.5-15
19-Cruise control indicator display
P.6-41
20-Seat belt warning display P.4-13
21-Door-ajar warning display P.5-21
22-Oil pressure warning display P.5-21
To Next Page
