Instruments
5-14 Instruments and controls
5
E00572100031
E00576200027
When there is information to be announced,
such as a system fault, the buzzer sounds and
the information screen is switched to the
warning display screen.
Refer to the warning list and take the neces-
sary measures.
Refer to “Warning display list” on page 5-24.
When the cause of the warning display is
eliminated, the warning display goes out
automatically.
E00576300145
Even if the cause of the warning display is
not eliminated, you can return to the screen
that was displayed before the warning dis-
play.

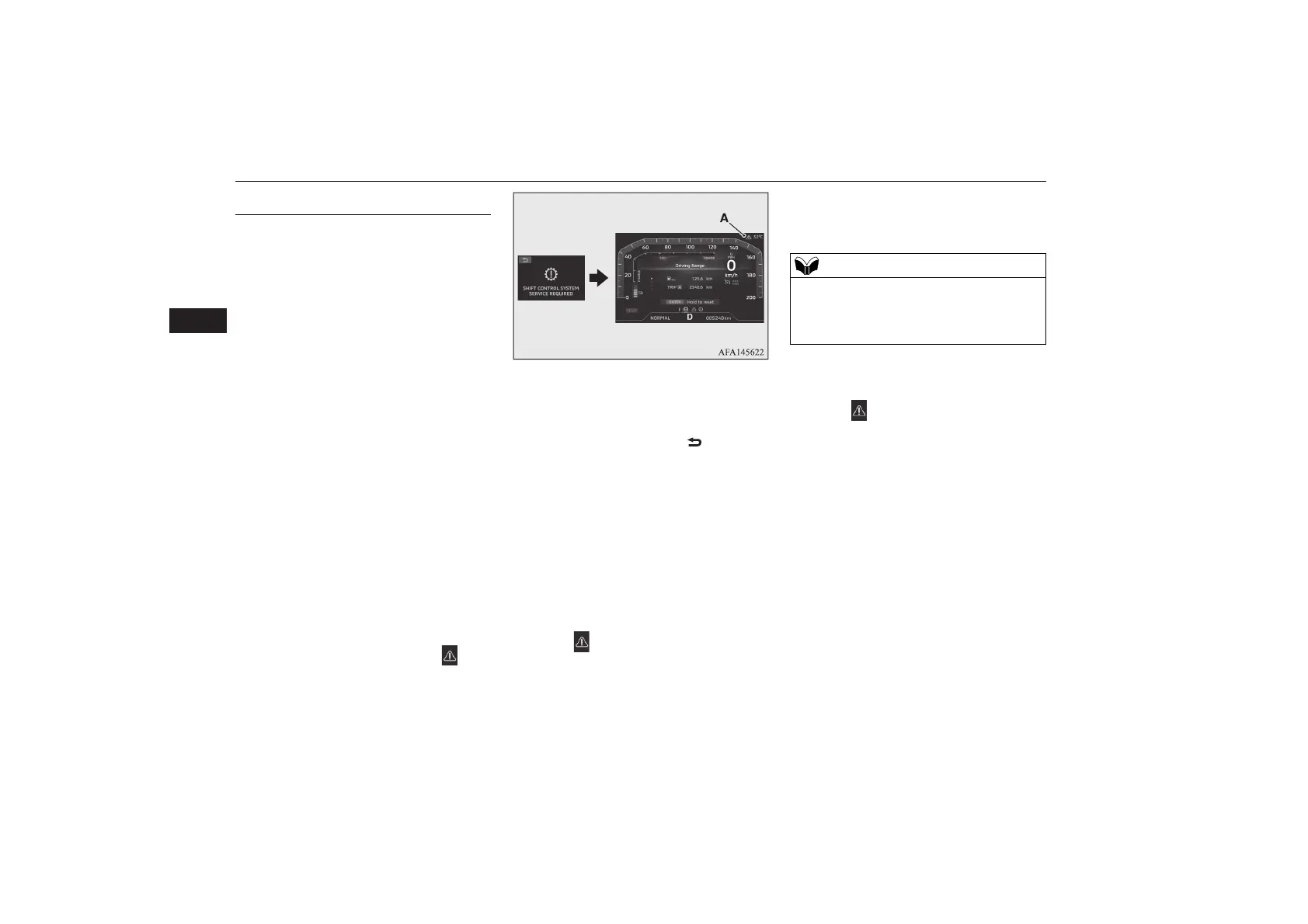

If you press the Back switch of the digital
driver display switches, the display screen
switches to the screen that was displayed
before the warning display and the mark
(A) is displayed.
E00576400058
Warning display screen with “ ” mark dis-
played in the upper left of the screen can be
switched. If you want to switch the display,
press the Back switch of the digital driver dis-
play switches.
E00576500091
[When the operation mode of the power
switch is in OFF]
When the mark is displayed, operate the
Up/Down switch to select the warning dis-
play screen from the multi information
screen. The warning display screen you
switched from is redisplayed.
Refer to “Multi information screen (when the
operation mode of the power switch is OFF)”
on page 5-8.
[When the operation mode of the power
switch is in ON]
When the mark is displayed, operate the
Left switch or Right switch to select the
warning information display from the multi
information screen. The warning display
screen you switched from is redisplayed.
Refer to “Multi information screen (when the
operation mode of the power switch is ON)”
on page 5-9.
Refer to “Multi information screen: Warning
information display” on page 5-10.
E00576600119
The operation status of each system is dis-
played on the information screen.
Refer to the appropriate page in the warning
display list for further details.
Refer to “Other interrupt display list” on page
5-36.
Interrupt display screen
Warning display
To return to the screen displayed before
the warning display
If you want to switch the display
Redisplay of a warning display
screen
When multiple warnings occur simultane-
ously, the screen switches between each
warning display approximately every 4 sec-
onds.
Other interrupt displays
