3
S
UR
F
TEST SJ-3
1
0
The large 14,5 cm (5.7-inch) colour graphic touch-screen LCD provides excellent readability. Furthermore, selecting icons from the touch panel
display*
1
provides intuitive and easy operation. The integrated high-speed printer also allows the user to perform the entire process from making
measurements to printing the results with the push of a single button (START button).
You can save parameter recalculations and measurement results in text format on a memory card and import into commercial spreadsheet software
on a PC. You can also connect to a PC using the USB connector and use a dedicated software application to perform everything from measurement
control and condition modification to issuing inspection result reports.
Detector supplied as standard
One of two types may be selected:
•
Measuring force: 0.75 mN
Stylus form: Tip radius 2 µm
Tip angle 60°
•
Measuring force: 4 mN
Stylus form: Tip radius 5 µm
Tip angle 90°
Side of display unit
Rear of display unit
Drive units
Standard drive unit
• Popular standard drive unit
Transverse tracing drive unit
• Best suited for measurement
of narrow, shrouded workpiece
features such as crankshaft
bearings, EDM parts, etc.
(Patent registered in Japan)
Retractable drive unit
• The detector is in the retracted
position at rest so it is immune
from damage when inserted into
a feature whose shape cannot be
easily seen, such as a blind hole, etc.
A wide range of optional detectors is available,
including detectors for small holes, extra small holes,
gear tooth surfaces, and deep grooves.
BAC and ADC curves can be printed in addition
to calculation results (including pass/fail results) and
assessed profiles. The printer offers an easy-to-
understand layout and can also print horizontally to match
the content displayed on the LCD. Furthermore, printing
speed is approximately 50% faster than conventional
models.
Built-in battery
With drastically enhanced power compared to
conventional models, the Surftest SJ-310 can make
1500 continuous measurements on a full charge
achieved in 4 hours.
Frequently used functions, such as the measurement start button, are provided
as rugged sheet buttons with excellent durability.
Measurement Result
Measured profile
< >
One-touch
switching
BAC curve
ADC curve

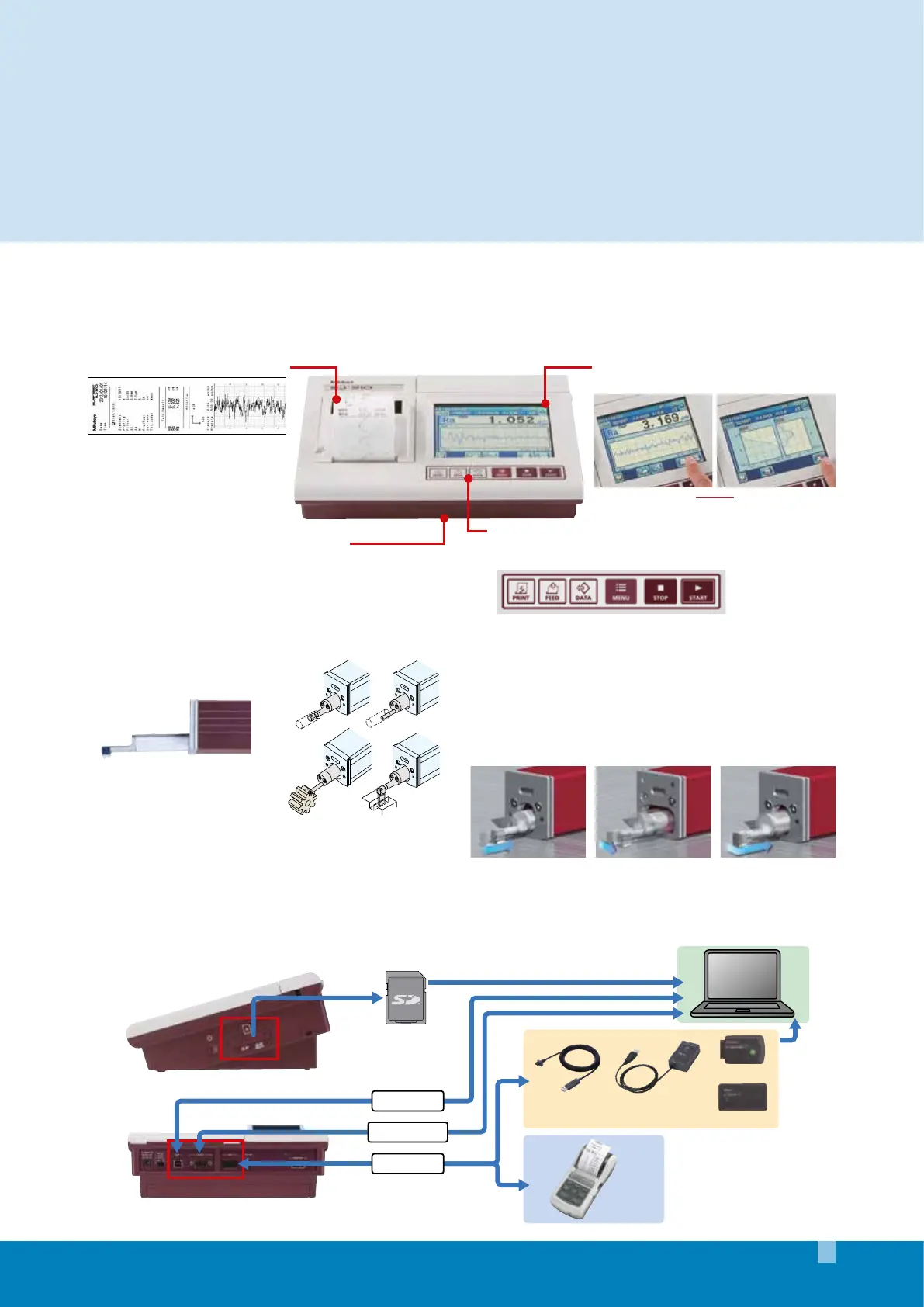

User-friendly, high-functionality display unit with integrated high-speed printer
Links to a wide variety of external instruments
Highly functional detectors and drive units
14,5 cm color graphic LCD with touch screenPrinter
Sheet buttons
Memory card
(option)
USB I/F
RS-232C I/F
SPC I/F
DP-1VR *
2
Input Tool
for USB *
2
U-WAVE-T *
2
U-WAVE-R *
2
USB Input Tool
Direct *
2
*2: Refer to P11 for more details
*1 Text display can also be selected.
