power failure, so the extruder still stay on the model, which may cause defects on the model. If you need a more complete way
to deal with such situation, a power outage detection module and UPS is necessary).

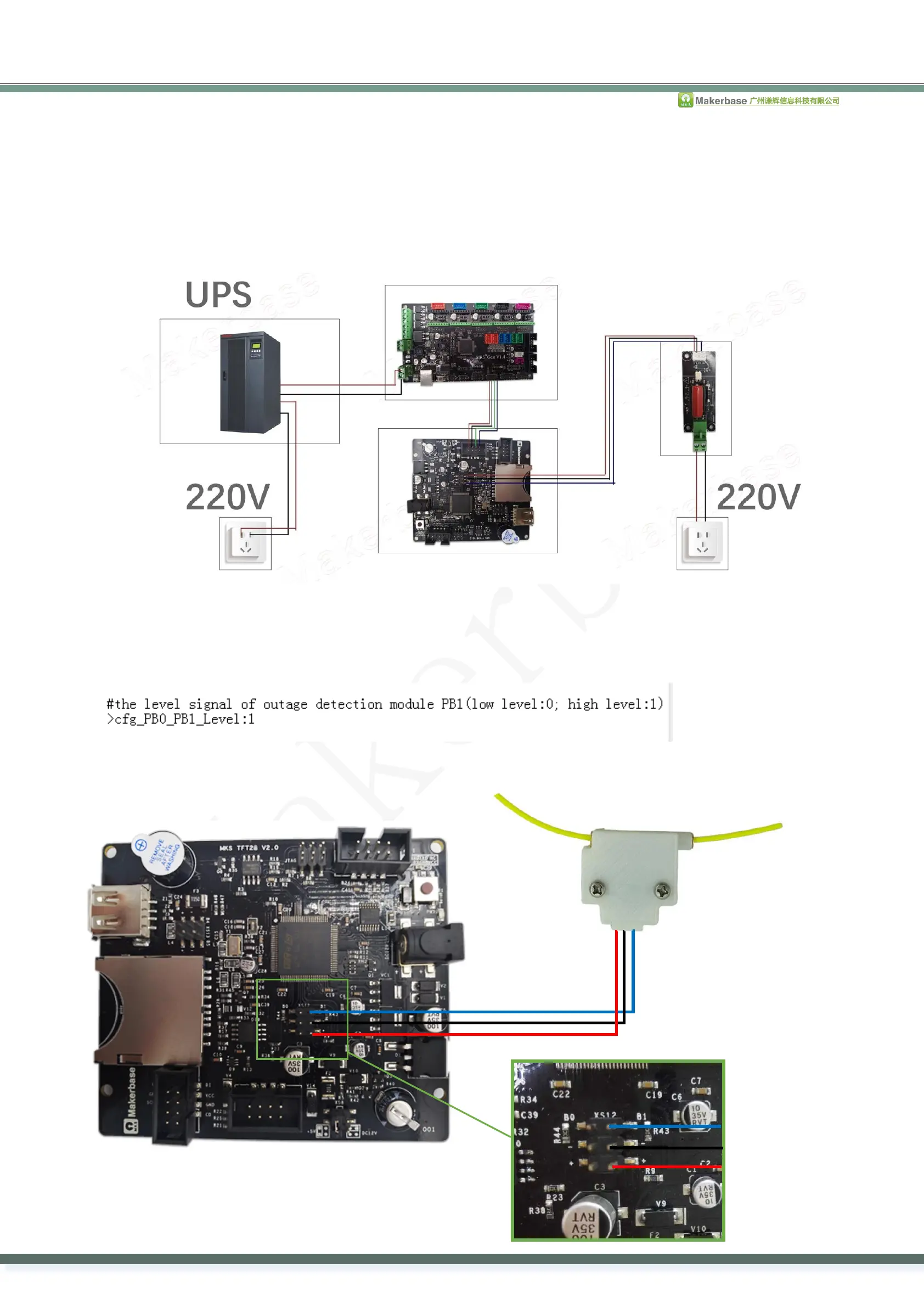

9.2. Connect UPS
9.2.1 S connects to PB0, negative and positive connects “-“ and “+” of PB0 .
9.2.2 Power outage detection module will inform the TFT display to enter the printing pause state when the system powers out,
then the UPS will provide the power for the extruder to leave the model.
10. Filament Outage Detection function(only above MKS TFT28 V1.1 can support the function)
One end of MKS DET connects to the PB1, another end connects to the “-“ or “+” of the PB1.( If Low Level effective, it connects
to “-“, if High Level effective, it connects “+”.) Choose the Low Level effective or High Level effective in the configuration.
B1
-
+
