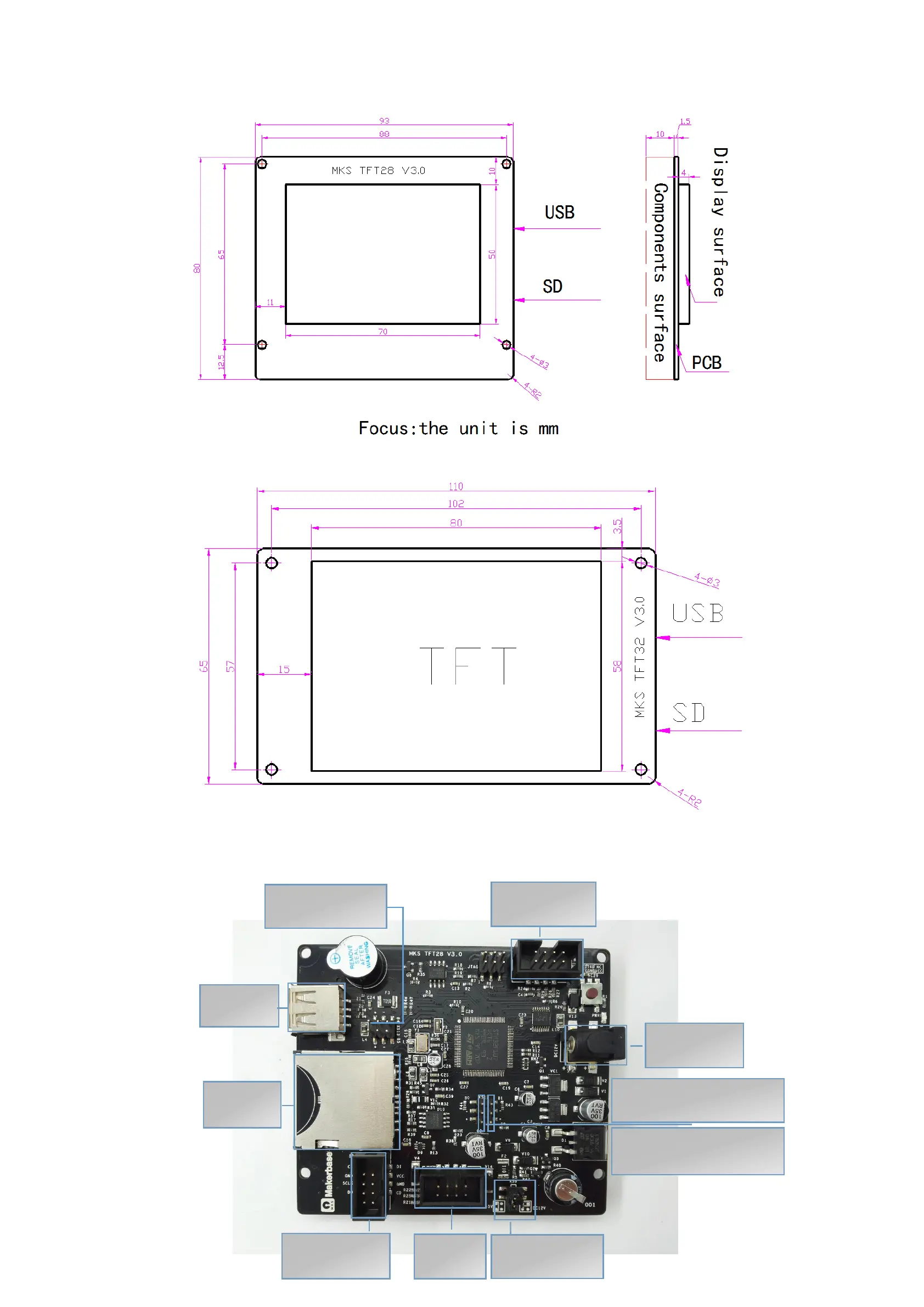

2.MKS TFT28 Installation Dimensional Drawing
3. MKS TFT32 Installation Dimensional Drawin
4. MKS TFT28 Interface Diagram
SD expandor
interface
Board
interfac
e
B1 filament outage
detection module interface
Power
interface
Power option
jumper
WIFI module
interface
B4 MKS PWC
module interface
U disk
interface
SD card
interface
