5.1.2.3 Measurement setup and examples
Figure 13 shows the typical measurement setup of using MKTool mode. Both the Anchor and the tag
are set on plastic stands vertically and connected to laptop PCs. Figure 14 shows typical measurement
results.

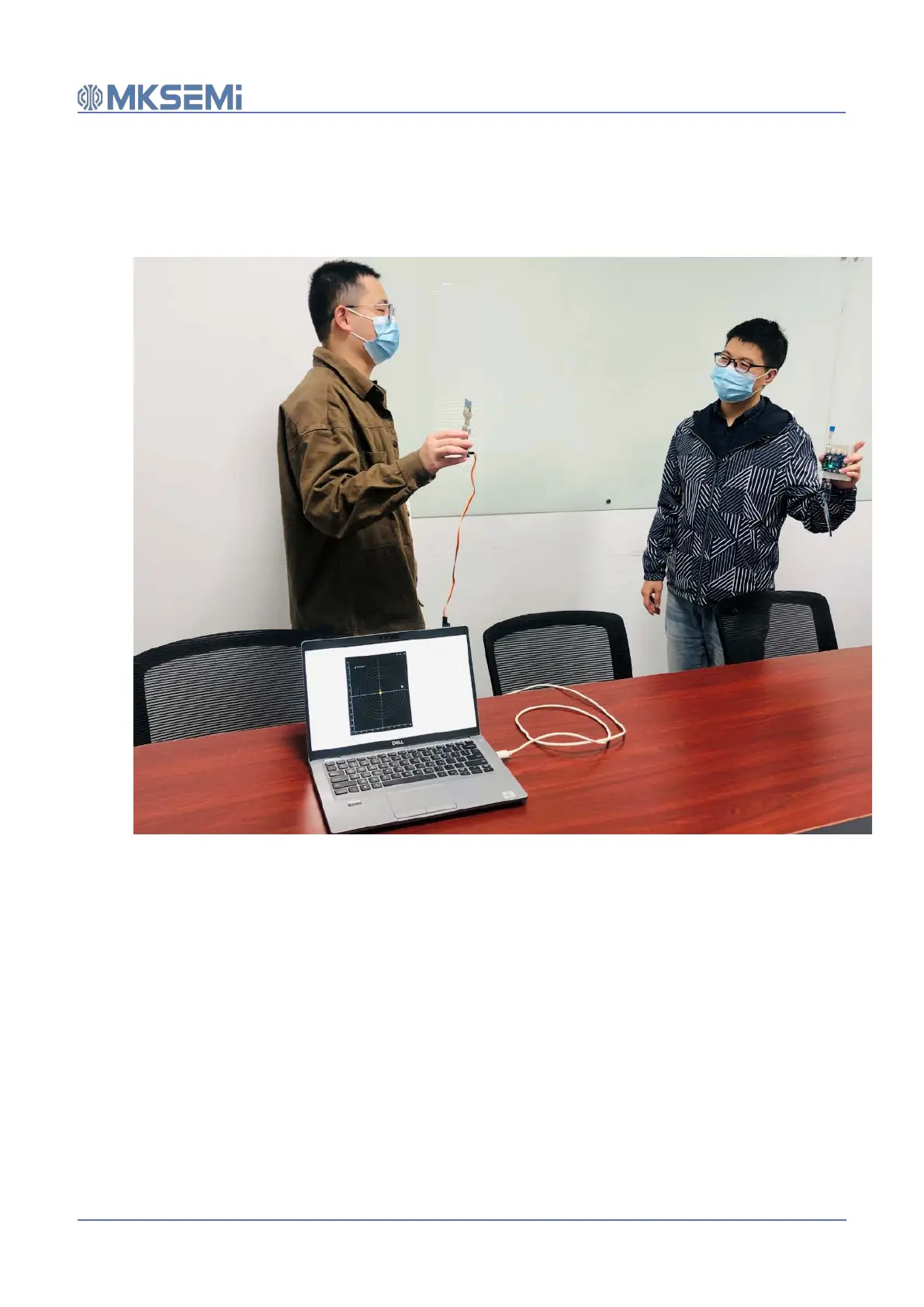

Figure 13 Example of setup of Ranging and AoA test in MKTool Mode
