The receiver is opened, on the other hand, by releasing the two pins on the base,
and once the electrical connections have been made it should be fastened to the
wall with two screws in the corresponding holes.
IP address conguration
The thermostat and receiver have a unique code which connects them and allows
them to communicate.
This connection is usually already set; if it is not, proceed as follows:
1. Press the identication button on the receiver; the green LED will start ash-
ing.
2. Shut off the thermostat, press and hold the menu button for 3 seconds. The
board will beep, and the LED on the receiver will stop ashing.
3. The channel will be shown on the thermostat display; press the menu button
again.
The thermostat and receiver are now connected.
TECHNICAL DATA
Thermostat Supply Voltage 2 x 1.5V AAA batteries
Backup Memory EEPROM
Receiver current 16 A
Frequency 868MHz
Channel selection By programming the thermostat and the receiver
Switching options Four periods per day, 5+1+1 days
Receiver switch contacts NO and NC
Temperature settings 5°C - 30°C, 0.5°C increments
Accuracy +/- 0.5°C (+/- 1°F)
Thermostat size 135x88x22 mm
Receiver size 114x86x30 mm
Colour White
IP protection rating 20
Certication CE

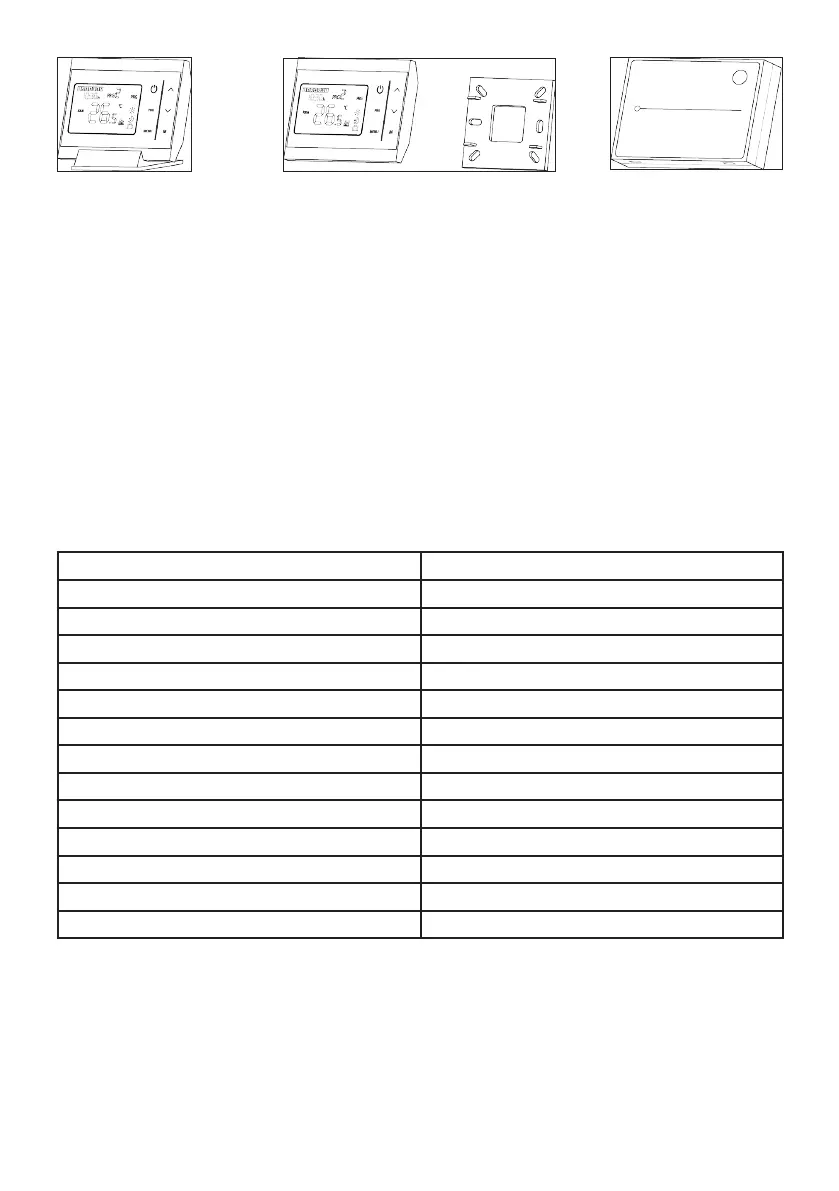

Fig.1
Fig.2 Fig.3
