CLEANING
With 2 people, rotate the lid assembly slightly back towards the closed position,
then pull up to release the clasp on each side of the assembly.
Remove the hexagon guard screens (remove set screw on bottom of frame) &
tumbler brush from the lid assembly.
Unplug the M108.
Unplug the lid assembly, then push the 2 latches inward to release and rotate to
a fully open position.
Make sure the Trim Tote sensor is unplugged, then remove the separator.
Remove the fan housing.

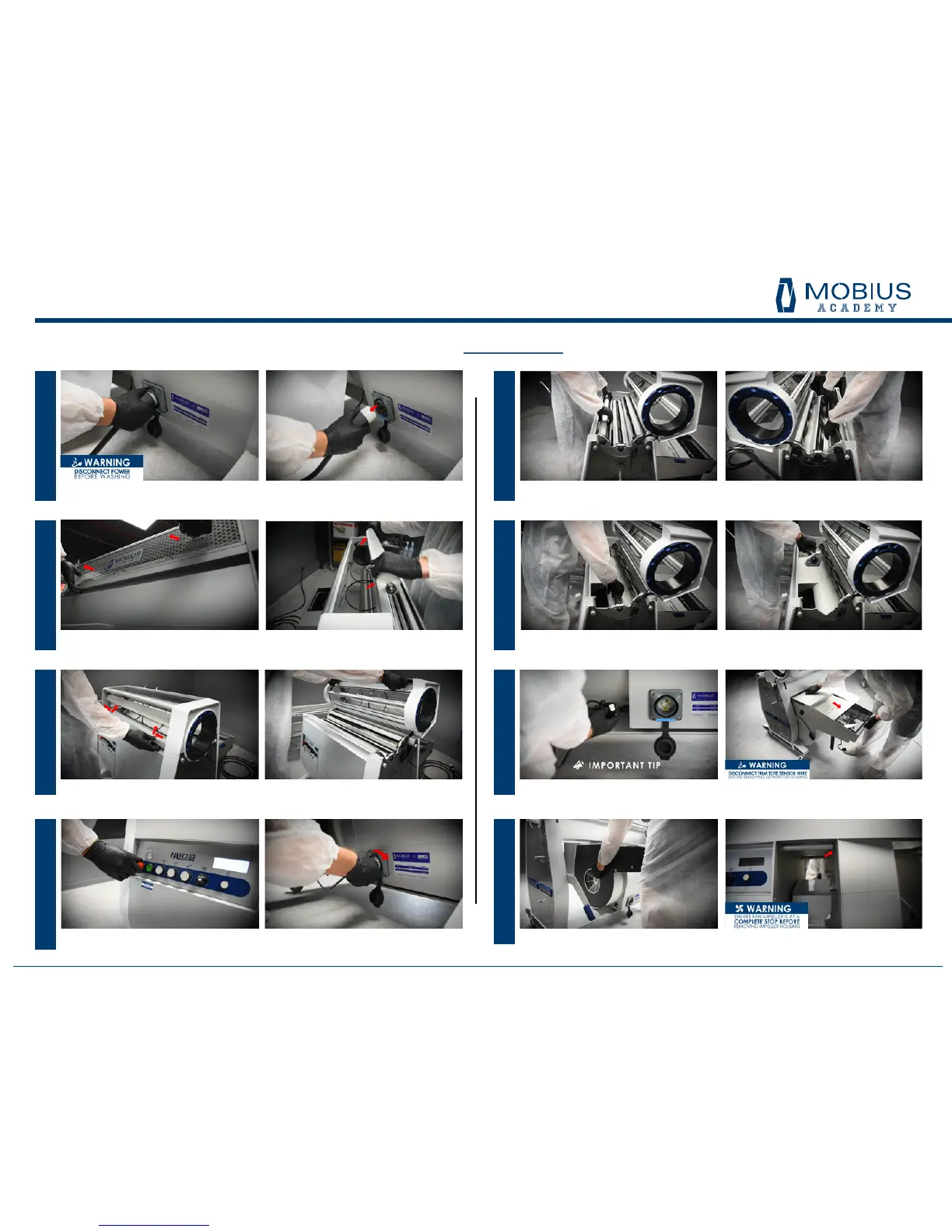

The following steps outline the process for disassembling and cleaning the M108. Remove each of the items in the following order. Refer to Assembly instructions for
tips on removal. You can also view videos of these steps on our website in the Mobius Academy.
Remove the blade bars and spacer bars,
then remove the helical blades.
STEP 02. STEP 01.STEP 03.
STEP 07.STEP 08. STEP 05.
STEP 06.
STEP 04.
