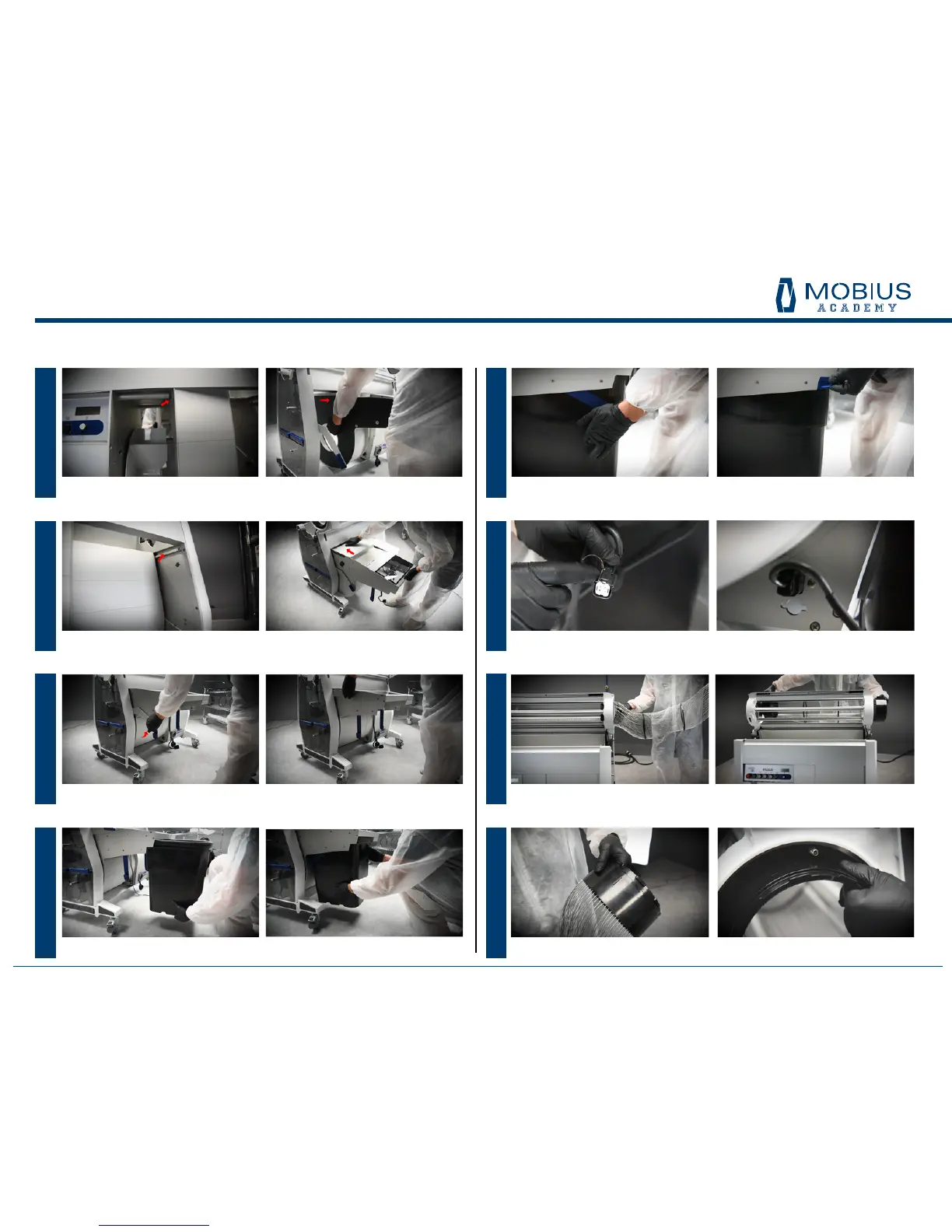

ASSEMBLY
Disassembly and assembly of the Mobius Trimmer M108 is easy, and requires no tools. Follow along in this step by step document as we show you how it’s done.
Keep a good grip until just before your hand is going to get pinched, then slide it
the rest of the way making sure it’s sitting on the guide rails at the top.
Lift up on the separator lever to lock it into place.
Next, you’ll slide the Trim Tote back into place on the separator.
Plug in the Trim Tote sensor wire to the body of the M108. Take note- the plug is
NOT omni-directional.
Notice the holes on the top of the fan housing assembly. These correspond to the
rails on the bottom of the unit. Slide the fan housing back into place on the rails.
A good tip here- brace the Trim Tote with your knee while you pull up on the levers
to lock it into place.
Next, we’ll install the AirThread Tension Tumbler. The smooth end goes in rst. Slide
the tumbler through the lid.
The small n on the end of the tumbler will t just under the schrader valve.
STEP 01. STEP 03B.
STEP 02A. STEP 03C.
STEP 02B.
STEP 04A.
STEP 04B.
STEP 03A.
