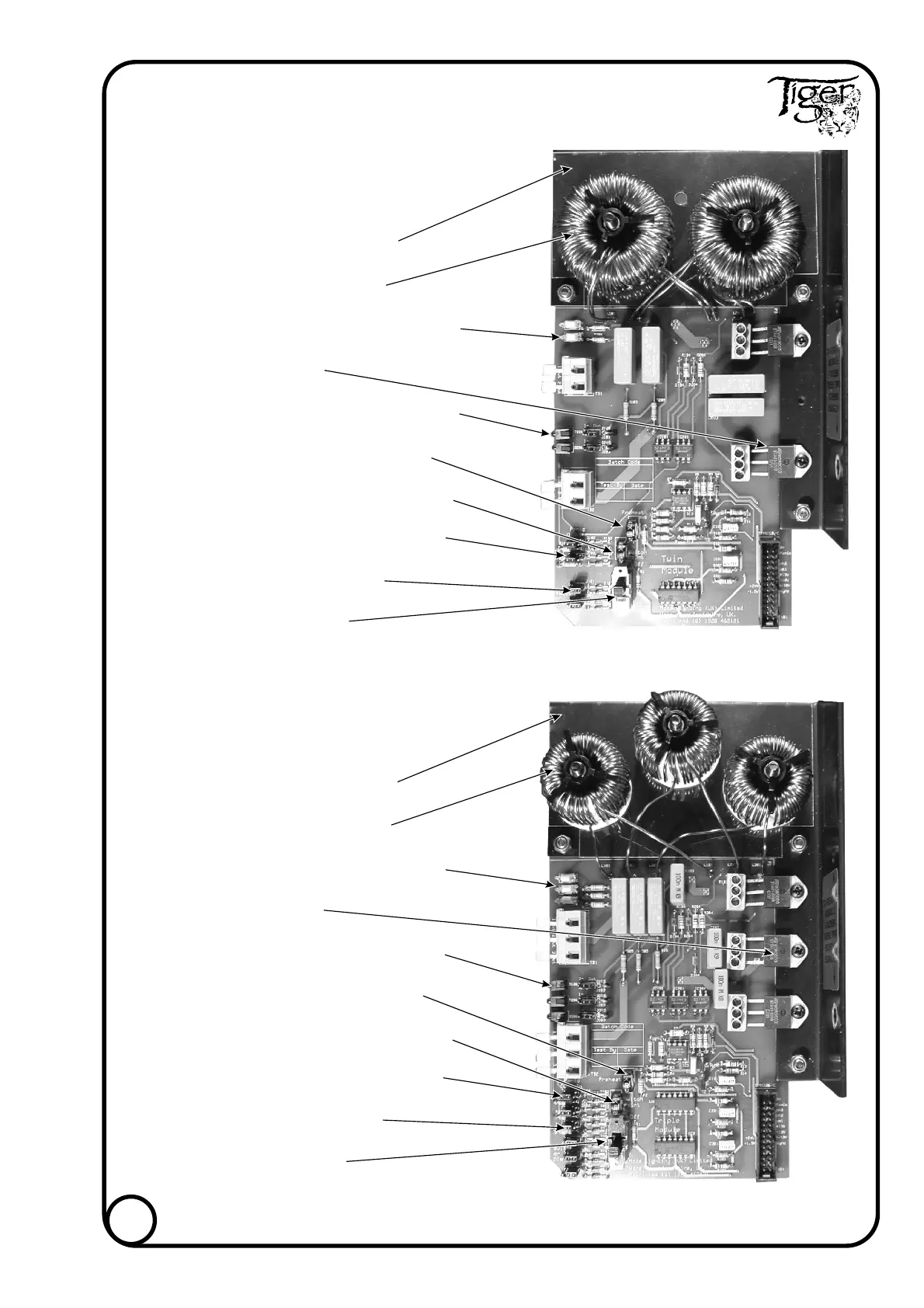

POWER MODULE FUNCTIONS
TWIN MODULE
used in 6 channel model TP-10-06
Heatsink and mounting bracket
RFI noise suppression chokes
Channel mains feed indicators 2 (green)
User replaceable triac
Channel control signal indicators 2 (red)
Output pre heat adjustment control
Set switch point for switching channels
Set alarm enable for selected channel
Set a channel to switch or dim
Module full on test switch
TRIPLE MODULE
used in 9 channel model TP-06-09
Heatsink and mounting bracket
RFI noise suppression chokes
Channel mains feed indicators (green)
User replaceable triac
Channel control signal indicators (red)
Output pre heat adjustment control
Set switch point for switching channels
Set alarm enable for selected channel
Set a channel to switch or dim
Module full
on test switch
