Mode Lighting Tiger - Indicator Identification

13

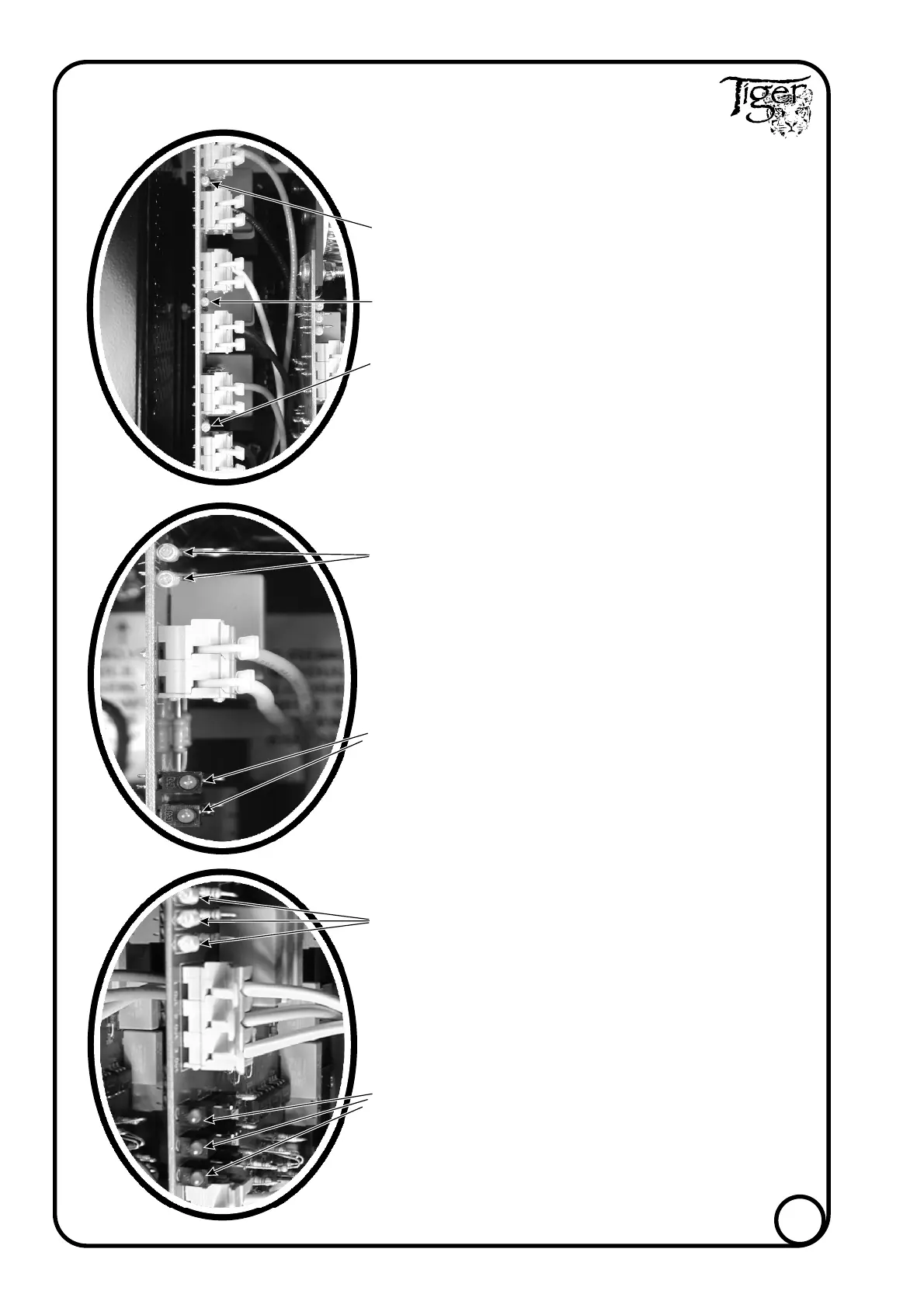

INDICATOR IDENTIFICATION
The three neons shown indicate when the phase
input is live.
Phase 1
Phase 2
Phase 3
The three green neons shown indicate when the
channel input is live i.e. when the MCB is on.
The three red LED's indicate a control signal is
present. These still operate if the mains to the
module is not switched on.
The two green neons shown indicate when the
channel input is live i.e. when the MCB is on.
The two red LED's indicate a control signal is
present. These still operate if the mains to the
module is not switched on.
TP-10-06 (6 channel)
TP-06-09 (9 channel)
