MODE Terraonion - MODE PCB Layout and Connectors - Top

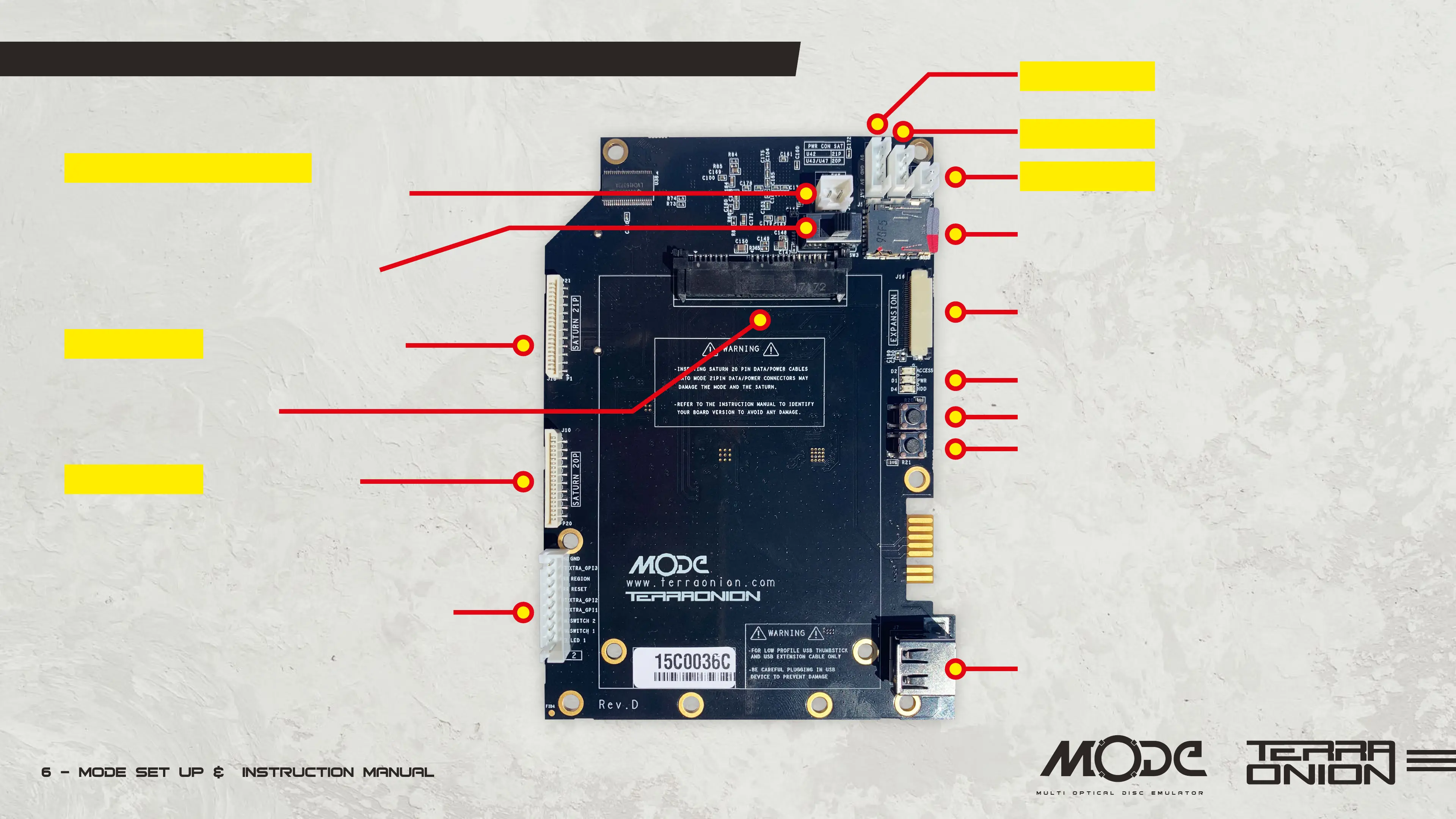

MODE PCB Layout and Connectors / Top of MODE PCB
Saturn 21 PIN Data Cable Connector
Saturn 21 PIN Power Connector
Saturn 20 PIN Power Connector
Saturn 20 PIN Tray Connector
MicroSD Slot
Leds
Switch 1 (SW1)
Switch 2 (SW2)
Disc swap/return to menu button
USB Connector
Expansion Port
(Reserved for possible future use)
SATA Drive Connector
Saturn 20 PIN Data Connector
Expansion Connector for JST9 harness
(Not included. See Advanced Install section)
External Power Connector
(For some Saturn 21 pin models. See Below)
External Power Connector Switch
